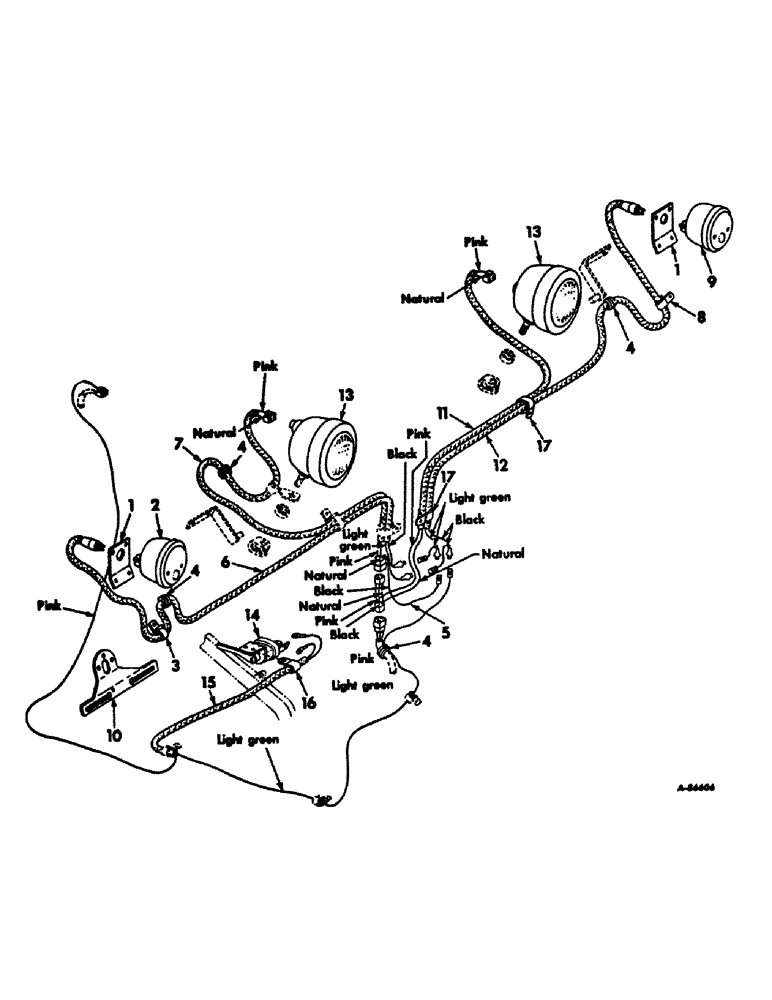

Запчасти Case IH 656 (G-38) - ELECTRICAL SYSTEM, COMBINATION TAIL AND STOP LIGHT, FOR FARMALL TRACTORS EQUIPPED WITH CAB (06) - ELECTRICAL SYSTEMS

Service parts for tractors equipped with dual combination stop and tail light, consists of all parts marked unit A

1шт.

393528R91

PARTS ACCESSORY, LH combination tail and stop light, consists of all parts marked unit B

1шт.

393530R91

PARTS ACCESSORY, dual combination tail and stop light, consists of all parts marked unit C

1шт.

393532R91

PARTS ACCESSORY, dual combination tail and stop light, for all tractors equipped w/RH combination rear light att, consists of all parts marked unit D

1шт.

1

392069R1

BRACKET, combination tail & stop light, unit B

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

440-12510

SCREW,Cross Pan Hd, 1/4"-20 x 5/8"

1/4-20 x 5/8 C-Z slt-truss-hd mach

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

1

392069R1

BRACKET, combination tail & stop light, 2 for units A, C, & D

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

440-12510

SCREW,Cross Pan Hd, 1/4"-20 x 5/8"

1/4-20 x 5/8 C-Z slt-truss-hd mach

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

2

45645HA

LIGHT

ASSY, LH combination tail, stop and license plate, units A, B, C, & D, composed of (1) body assy (NSS), (1) gasket 371956R1, (1) lamp 9417867, (1) lens 157729R1

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

3

362121R1

CLIP

LH combination tail and stop light connector cable, units A, B, C and D

1шт.

4

120408

GROMMET,1/2" ID x 1 1/16" x .188", Diag Cut

stop light connector cable, unit B, 2 for units A, C & D

1шт.

5

392064R91

CABLE ASSY, tail light junction, units B, C, and D

1шт.

6

392062R91

CABLE ASSY, LH combination stop light connector, units A, B, C & D

1шт.

7

392066R91

HARNESS ASSY, rear flood light extension cable, unit A

1шт.

8

362121R1

CLIP

RH combination tail and stop light connector cable, units A, C and D

1шт.

9

45645HA

LIGHT

ASSY, RH combination tail & stop, units A, C and D, composed of (1) body assy (NSS), (1) gasket 371956R1, (1) lamp 9417867, (1) lens 157729R1

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

10

392070R1

BRACKET, license plate, units A, B, C, & D

1шт.

11

392067R91

HARNESS ASSY, RH rear flood light cable, unit A

1шт.

12

392063R91

CABLE ASSY, RH combination stop light connector, units A, C and D

1шт.

13

391005R91

HEADLIGHT

LIGHT ASSY, sealed beam shockproof rear flood, 2 for unit A, only serviceable item is sealed beam unit, 371443R91

1шт.

14

375477R91

SWITCH

ASSY, mechanical brake stop, units A, B, C & D, mounting, units A, B, C & D

1шт.

447163

SCREW, w/ext tooth lock washer, 10-32 x 1/2 C-Z hex-hd cap

2шт.

15

393533R91

HARNESS ASSY, stop light switch cable, units A, B, C & D

1шт.

16

362121R1

CLIP

stop light switch cable harness light connector cable, units A, B, C, & D

1шт.

17

362121R1

CLIP

RH combination tail & stop light connector cable, 2 for units A and C

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

440-12510

SCREW,Cross Pan Hd, 1/4"-20 x 5/8"

1/4-20 x 5/8 C-Z slt truss-hd mach

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.
