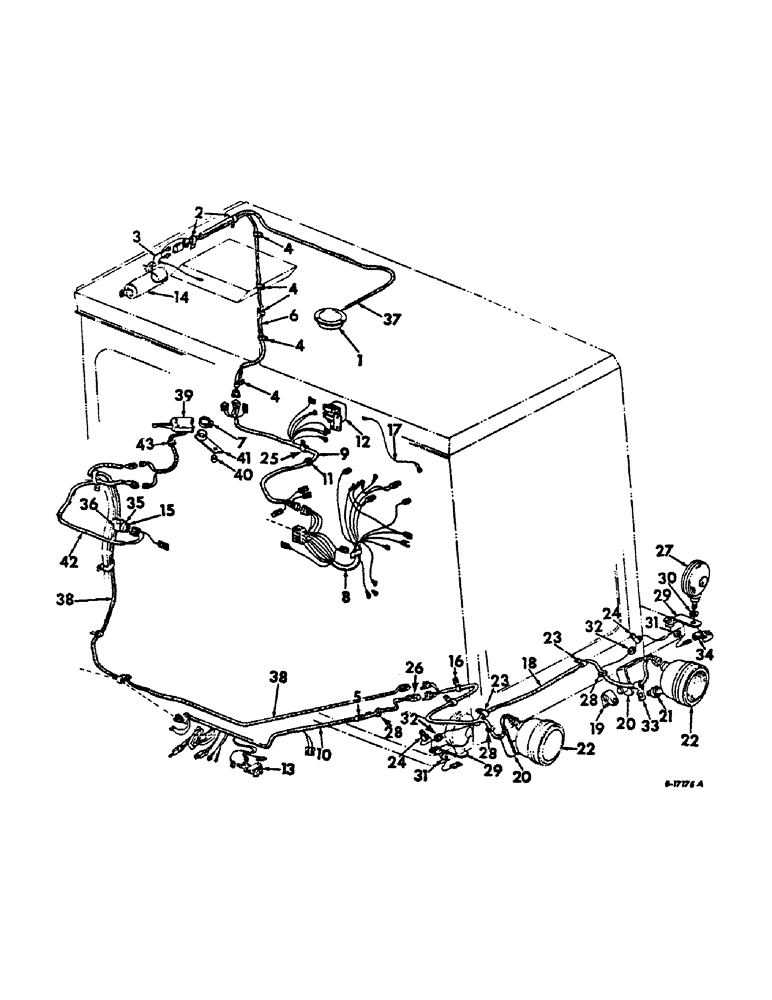

Запчасти Case IH 656 (G-36) - ELECTRICAL SYSTEM, CAB WIRING AND CONNECTIONS, FARMALL TRACTORS WITH SERIAL NO. 3118 AND ABOVE (06) - ELECTRICAL SYSTEMS

1

404150R91

LIGHT ASSY, cab dome, only serviceable items are bulb, 142456 and lens, 336853R1

1шт.

125932

SELF-TAP SCREW,Sl Pan Hd, #8 x 1/2"

SCREW, SELF TAPPING, Slotted Pan Hd, #8 x 1/2"

3шт.

153022

SCREW, 6-32 x 5/8 C-Z cr-rec-fil-hd mach

3шт.

2

299406C1

CLAMP,7/16", Insul, 3/8" Bolt

power supply cable harness

2шт.

3

391791R91

CABLE ASSY, wiper motor

1шт.

145193

BATTERY

10-16 x 1/2 C-Z slt-pan-hd tap

1шт.

178378

LOCK WASHER,Ext-Int Tooth, #10

WASHER, no. 10 C-Z int-ext tooth lock

1шт.

4

299405C1

CLAMP,7/16", Insul, 1/4" Bolt

cable harness

6шт.

441201

SCREW, 12-14 x 1/2 C-Z slt-pan-hd tap.

5шт.

145200

BOLT, 12-14 x 5/8 C-Z slt-pan-hd tap

1шт.

5

384558R1

CLIP

rear main cable harness, on LH rear hyd housing bolt

1шт.

6

391790R91

HARNESS ASSY, cab load junction cable

1шт.

7

333710R91

HOSE CLAMP,#16, 0.81/1.50 Type F Worm

SWITCH MOUNTING, switch mounting hose

1шт.

8

395341R2

HARNESS ASSY, RH panel cable, tractors w/cab installed at the factory

1шт.

8

395342R1

HARNESS ASSY, RH panel cable adapter

1шт.

9

395343R1

HARNESS ASSY, cab power supply cable

1шт.

10

HARNESS ASSY, rear main cable, gasoline engine tractors, refer to starting and lighting listing

1шт.

10

HARNESS ASSY, rear main cable, diesel engine tractors, refer to starting and lighting listing

1шт.

11

42731H

GROMMET

cab power supply cable harness rubber

1шт.

12

1115841

RELAY

electric load, 202303R91

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

157716

SCREW, 1/4-20 x 1/2 C-Z slt-hd-truss mach

2шт.

174916

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER, 1/4 C-Z int-ext tooth lock

1шт.

13

370378R91

SOCKET

ASSY, electrical breakaway connector

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

180018

CONNECTING LINK

SCREW, 1/4-20 x 5/8 C-Z hex-hd cap

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

14

MOTOR ASSY, windshield wiper, for components, see list of parts under detail of windshield wiper motor, section N

1шт.

15

394132R91

FLASHER UNIT

FLASHER, safety warning light

1шт.

16

392121R1

CLIP, rear light extension cable, mount on inside rear of cab

1шт.

17

397398R1

CABLE ASSY, relay harness connector to solenoid switch battery terminal

1шт.

18

401608R1

HARNESS ASSY, rear light extension

1шт.

19

350920R1

CLAMP

combination rear light

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

20

391157R11

BRACKET ASSY, rear light

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

326-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

SCREW, 5/16-18 x 3/4 C-Z slt-truss-hd mach

4шт.

120376

NUT,5/16"-18, G5

4шт.

21

365503R1

SPACER

combination rear light

1шт.

22

387729R91

LIGHT

ASSY, combination rear and tail, only serviceable itmes are lamp, 455490 and unit, 371461R91, tractors with shockproof lights

1шт.

23

384557R1

CLIP

rear light extension cable harness, mount on inside rear of cab

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

440-12510

SCREW,Cross Pan Hd, 1/4"-20 x 5/8"

BOLT, 1/4-20 x 5/8 C-Z slt-truss-hd

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

24

366460R1

CABLE CLIP

CLIP, flashing light cable

1шт.

25

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, cab power supply cable harness, on RH front steering gear housing mounting bolt

1шт.

26

266516C1

CONNECTOR, ELEC

CONNECTOR, rear main cable

1шт.

27

394129R91

LIGHT

ASSY, flashing warning, only serviceable items are lamp, 9447866 and lens, Guide, 396585R1 or lens, Dietz, 899280R1

1шт.

120371

NUT,1/2"-20, G5

1шт.

493-41052

LOCK WASHER,Ext Tooth, 1/2"

1/2 C-Z ext-tooth lock

1шт.

28

42731H

GROMMET

cab power supply cable harness rubber

1шт.

29

394466R1

BRACKET, flashing warning light

2шт.

271501

SOCKET

NUT, 7/16-14 C-Z hex

2шт.

180143

SCREW,Hex, 7/16" - 14 x 3/4"

7/16-14 x 3/4 C-Z hex-hd cap

2шт.

136857

WASHER,Ext Tooth, 7/16"

7/16 C-Z ext-tooth lock

2шт.

30

394262R1

WASHER

GASKET, flashing warning light

1шт.

31

120302

GROMMET,3/8" ID x 27/32" x .188", Diag Cut

flashing light cable, fender

1шт.

32

120408

GROMMET,1/2" ID x 1 1/16" x .188", Diag Cut

flashing light cable, cab

2шт.

33

370820R1

CLIP

rear light extension cable harness, on lamp stud under spacer

2шт.

34

358986R1

CABLE CLIP

CLIP, flashing light cable terminal

1шт.

35

394133R1

FASTENER

BRACKET, flasher mounting

1шт.

36

394134R1

SEAL

ABSORBER, flasher mounting

1шт.

37

404151R1

CABLE ASSY, dome light extension

1шт.

38

402320R1

HARNESS ASSY, rear cab signal lamp cable

1шт.

389427R91

CAPTIVE WASHER SCREW,Hex, 5/16" - 18 x 3/4"

SCREW, 5/16-18 x 3/4 cdp-hex-washer hd cap

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120376

NUT,5/16"-18, G5

1шт.

39

401612R2

SIGNAL

SWITCH, turn signal

1шт.

86982772

GROMMET

turn signal switch cable

1шт.

40

473588R1

SPACER

turn signal bracket

1шт.

41

401609R1

BRACKET ASSY, turn signal switch

1шт.

180082

BOLT (SPREADER),Hex, 5/16" - 18 x 1 3/8", Gr 5

BOLT, 5/16-18 x 1-3/8 C-Z hex-hd cap

1шт.

138538

LOCK WASHER

WASHER, 5/16 C-Z ext-tooth lock

1шт.

192280

HOLE PLUG BUTTON,1 1/4"

PLUG, C-Z button

1шт.

42

402319R1

CABLE ASSY, flasher unit adaptor

1шт.
