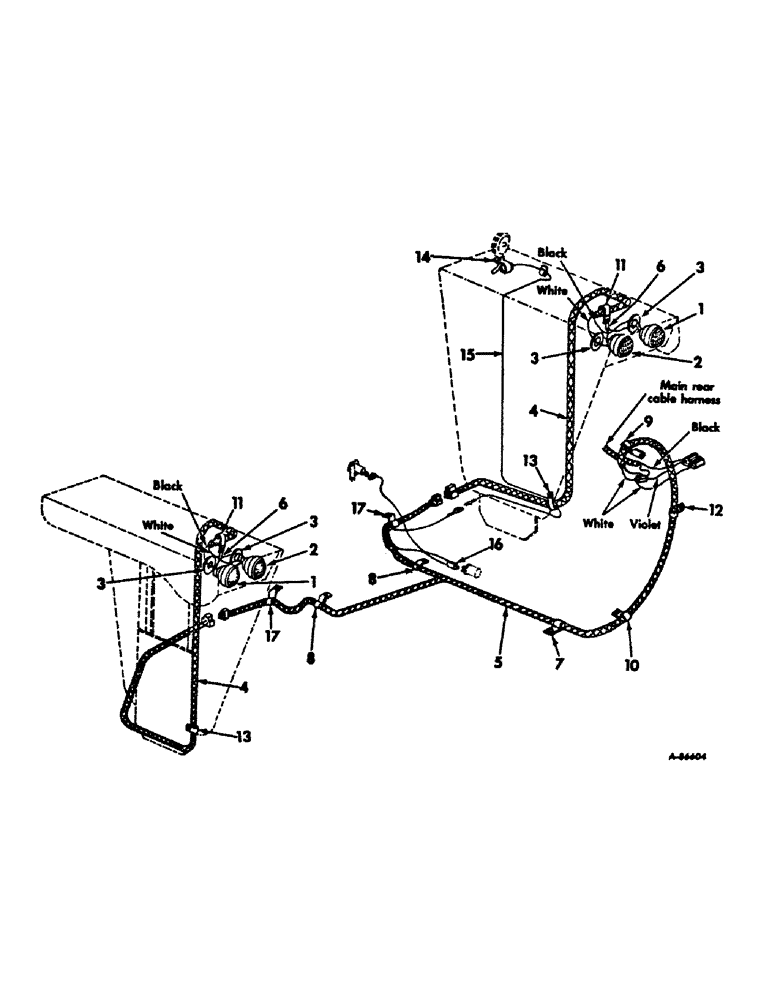

Запчасти Case IH 656 (G-30) - ELECTRICAL SYSTEM, ELECTRIC LIGHTING FOR DELUXE FLAT TOP FENDERS (06) - ELECTRICAL SYSTEMS

1

388945R91

HEADLIGHT

LIGHT ASSY, head, only serviceable items sealed beam unit, 373662R91 and rubber retainer, 676078R1

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

2

388946R91

LIGHT

ASSY, flood, only serviceable items are sealed beam unit, 390756R91 and rubber retainer, 676078R1

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

3

388947R1

RETAINER

head & flood light

4шт.

4

388949R91

HARNESS

CABLE ASSY, fender lighting

2шт.

5

391303R91

HARNESS

ASSY, lighting cable

1шт.

6

374490R91

CABLE

ASSY, head light to ground junction

2шт.

7

383622R1

CLIP

lighting cable harness, on rear frame cover front mounting bolt

1шт.

8

384558R1

CLIP

lighting cable harness, on rear frame cover 3rd mounting bolt from front LH & RH side

4шт.

9

363660R1

CLIP

lighting cable harness, twisted, on torque amplifier handle support bracket bottom front bolt

1шт.

10

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, lighting cable harness, short, on rear frame cover LH front mounting bolt

1шт.

179814

SPACER

2шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

2шт.

11

362121R1

CLIP

fender lighting cable, on LH & RH headlight panel

2шт.

109084

NUT,1/4"-20, G5

2шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

12

362121R1

CLIP

fender lighting cable, on voltage regulator upper LH mounting bolt

1шт.

13

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, fender lighting cable, short, on LH & RH fender support front mounting bolt

2шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

2шт.

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

2шт.

106653

FUSE

cartridge type AGC-20

1шт.

14

358896R1

CLIP, flashing light cable, on light mounting stud, not included in parts accessory, 389261R92

1шт.

15

394265R91

CABLE ASSY, flashing warning light, not included in parts accessory, 389261R92

1шт.

16

394425R91

CABLE ASSY, flasher to light, not included in parts accessory, 389261R92

1шт.

17

391213R1

CLIP, lighting cable harness, on LH & RH axle carrier top front mounting bolt

2шт.

179879

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.
