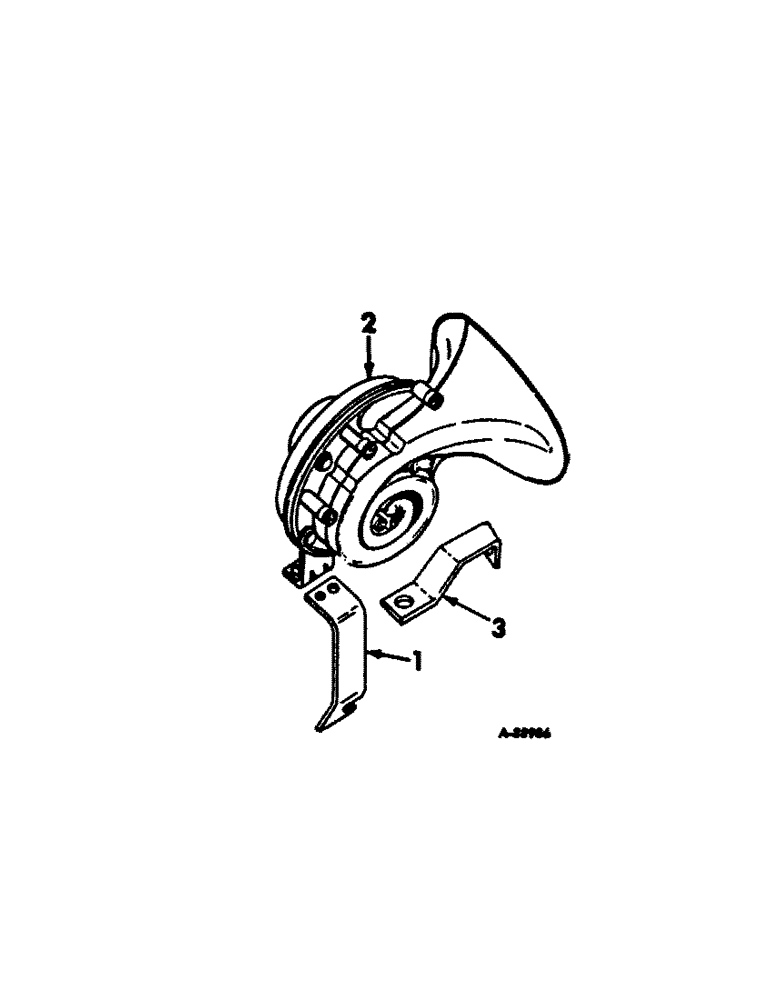

Запчасти Case IH 656 (G-28) - ELECTRICAL SYSTEM, ELECTRIC HORN, FARMALL TRACTORS WITH SERIAL NO. 23118 TO 25143 (06) - ELECTRICAL SYSTEMS

1

396529R1

BRACE, horn assy support bracket

1шт.

113913

BOLT,Hex, 3/8" - 16 x 3 3/4", Gr 5

SCREW, 5/16-18 x 7/8 slt-f-hd mach

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

1шт.

615031R1

WASHER

3/8 x 7/8 x .083

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

2

90002391

HORN ASSY, 166166R91

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

3

396528R1

BRACE, horn assy

1шт.

405219R1

CABLE

ASSY, horn to ground, will work for 396530R1

1шт.

405213R1

CABLE ASSY, horn switch to horn, will work for 384530R1

1шт.

366460R1

CABLE CLIP

CLIP, horn switch to horn cable

3шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.
