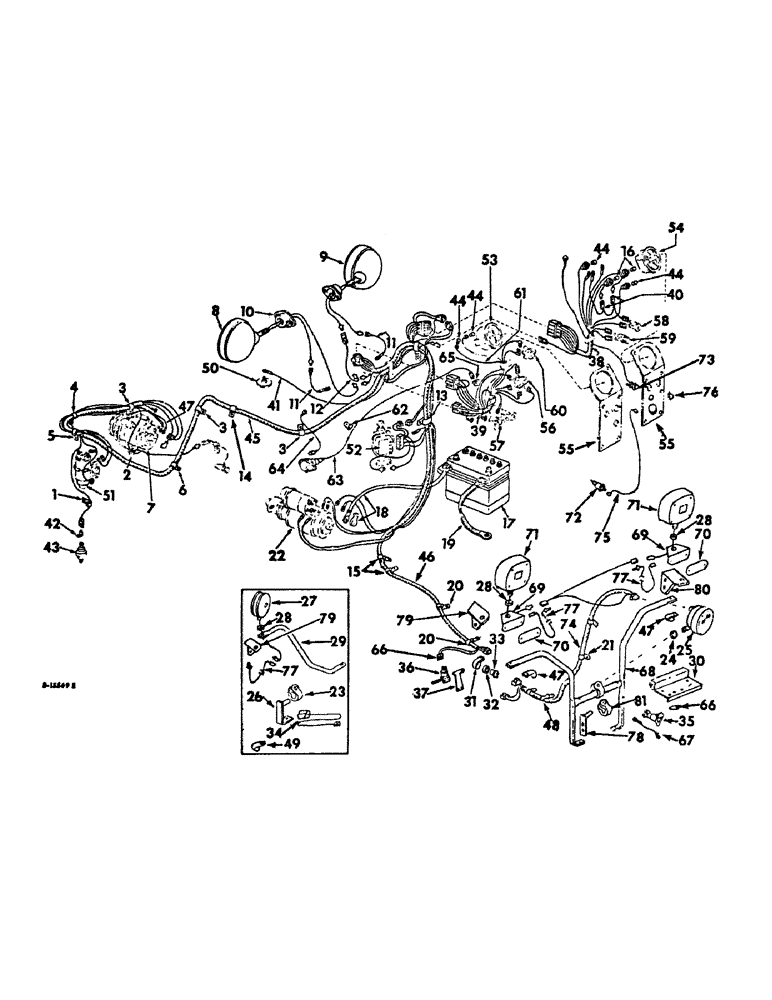

Запчасти Case IH 656 (G-15) - ELECTRICAL SYSTEM, STARTING AND LIGHTING, FARMALL GASOLINE ENGINE TRACTORS (06) - ELECTRICAL SYSTEMS

1

370535R1

CLIP

cable, on valve cover front upper mounting bolt

1шт.

2

384556R1

CLAMP

CLIP, solenoid junction cable, tractors with alternator

1шт.

3

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, front main harness, Serial Range: -41467

3шт.

179831

SCREW,Hex, 3/8" - 16 x 3/8"

3/8-16 x 3/8 hex-hd cap, 1 per clip

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, , 1 per clip 3/8"

1шт.

102635

NUT,3/8"-16, G5

1 per clip 3/8"-16, G5

1шт.

3

362123R1

CLIP

front main harness, Start Serial: 41468

2шт.

4

370383R1

CLIP

cable, on water outlet housing, replaces 370821R1

1шт.

5

384559R1

CLIP

cable

1шт.

6

362126R1

CLIP

cable, on heat shield lower center

1шт.

102635

NUT,3/8"-16, G5

1шт.

179831

SCREW,Hex, 3/8" - 16 x 3/8"

3/8-16 x 3/8 hex-hd cap

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

7

GENERATOR, refer to generator listing

1шт.

7

ALTERNATOR GENERATOR, refer to alternator generator listing

1шт.

8

387728R91

LIGHT

ASSY, 12 volt sealed beam head LH, only serviceable item is sealed beam unit, 371443R91

1шт.

370383R1

CLIP

head lamp LH

1шт.

120371

NUT,1/2"-20, G5

1шт.

120396

WASHER

17/32 x 1-1/16 x .095 C-Z

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

9

387728R91

LIGHT

ASSY, 12 volt sealed beam head RH, only serviceable item is sealed beam unit, 371443R91

1шт.

384559R1

CLIP

head lamp RH

1шт.

120371

NUT,1/2"-20, G5

1шт.

120396

WASHER

17/32 x 1-1/16 x .095 C-Z

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

10

382406R1

SUPPORT

BRACKET, head light mounting

2шт.

113911

SCREW, 5/16-18 x 1/2 f-hd mach

4шт.

11

405209R1

CABLE

ASSY, head light to ground, will work for 370387R91

2шт.

12

405228R1

CABLE

ASSY, head light to connector, will work for 383594R91

1шт.

13

401275R1

CLIP, main harness

1шт.

14

670043C1

CLIP

main front harness, Start Serial: 41468

1шт.

15

362666R1

CLIP

front & rear main harness, long

2шт.

16

9412348

BULB,C2B, #257, 14V

LAMP, no. 257 12 volt, oil & amp Tellite flasher

2шт.

17

395587R1

BATTERY, Prestolite 2429X 12 volt, hydrostatic tractors

1шт.

17

394106R91

BATTERY, Prestolite 2418 12 volt, gear drive tractors

1шт.

18

377114R91

CABLE PULLING GRIP

CABLE, w/cover, 364910R1, battery to solenoid switch, replaces 399902R91

1шт.

399397R1

BUSHING

battery cable snap

1шт.

364910R1

BOOT

COVER, solenoid terminal

1шт.

19

389028R91

CABLE

STRAP ASSY, Serial Range: battery-ground

1шт.

20

362123R1

CLIP

rear main cable harness

2шт.

21

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, hydraulic housing LH rear, Serial Range: -41467

1шт.

21

370821R1

CLIP,ELECTRICAL

CLIP, hydraulic housing LH rear, Start Serial: 41468

1шт.

22

CRANKING MOTOR, refer to cranking motor listing

1шт.

23

350920R1

CLAMP

combination rear light, Serial Range: -46202

1шт.

24

365503R1

SPACER

combination rear light

1шт.

25

387729R91

LIGHT

ASSY, combination rear & tail, serviceable items, sealed beam unit, 371461R91 & lamp 445490

1шт.

10237

NUT, 1/2-13 hex.

1шт.

493-41052

LOCK WASHER,Ext Tooth, 1/2"

1/2 C-Z ext-tooth lock

1шт.

26

390066R11

BRACKET ASSY, rear light support, Serial Range: -46202

1шт.

27

394129R91

LIGHT

ASSY, flashing warning, only serviceable items are lamp, 9417866 lens, amber, Guide 396585R1 or lens, red, Guide 397442R1 or lens, amber, Dietz 899280R1 or lens, red, Dietz 899279R1, Serial Range: -46202

1шт.

28

394262R1

WASHER

GASKET, flashing warning light

2шт.

120371

NUT,1/2"-20, G5

1шт.

29

394465R11

SUPPORT ASSY, flashing warning light, Serial Range: -46202

1шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

1шт.

179843

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

1шт.

30

389018R11

PLATE

rear light & independent PTO handle support

1шт.

31

394133R1

FASTENER

BRACKET, flasher mounting

1шт.

32

394134R1

SEAL

ABSORBER, flasher mounting

1шт.

33

394132R91

FLASHER UNIT

FLASHER, warning light

1шт.

34

406689R1

CABLE ASSY, flasher to light, will work for 394442R91 and 405248R1, Serial Range: -46202

1шт.

35

SOCKET ASSY, electric breakaway, refer to electric breakaway socket listing, this section

1шт.

36

382728R91

SWITCH

ASSY, neutral starting, hydrostatic tractors, Serial Range: -45876

1шт.

36

532682R1

SWITCH

ASSY, neutral starting, hydrostatic tractors, Start Serial: 45877

1шт.

36

537641R1

SWITCH ASSY

SWITCH ASSY, neutral starting, gear drive tractors

1шт.

37

398956R1

BRACKET, neutral starting switch, hydrostatic tractors, Serial Range: -45876

1шт.

37

534842R1

BRACKET, neutral starting switch, hydrostatic tractors, Start Serial: 45877

1шт.

37

389021R1

BRACKET, safety switch, gear drive tractors

1шт.

125981

BOLT, 10-32 x 5/16 hex-hd mach

2шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

2шт.

109084

NUT,1/4"-20, G5

2шт.

38

405251R2

HARNESS

ASSY, panel cable RH, gasoline, will work for 383609R91

1шт.

38

405252R1

HARNESS ASSY, panel cable RH, LP gas, will work for 383611R91

1шт.

39

405250R1

HARNESS

ASSY, panel cable LH, replaces 383607R91

1шт.

40

405244R1

CABLE

ASSY, key switch to gauge cluster junction, gasoline, will work for 383596R91

1шт.

40

383597R91

CABLE ASSY, key switch to gauge cluster junction, LP gas

1шт.

41

404400R1

CABLE

ASSY, fuel gauge sending unit to multiple connector, will work for 383593R91, Serial Range: -45384

1шт.

42

365501R1

TERMINAL CONNECTOR

TERMINAL, oil pressure switch

1шт.

43

392249R92

SWITCH

engine oil pressure

1шт.

44

9417863

BULB,C2F, #1895, 14V

LAMP, no. 1895 12 volt, tachometer and gauge cluster

4шт.

45

389022R91

HARNESS

ASSY, main front cable, tractors w/generator, Serial Range: -16268

1шт.

45

393557R91

CABLE

HARNESS ASSY, main front cable, tractors w/generator, Start Serial: 16269

1шт.

45

405270R1

HARNESS

ASSY, main cable front, will work for 398551R1, tractors w/alternator generator, Start Serial: 23108

1шт.

399470R1

BOOT

INSULATOR, part of 398551R1

1шт.

45

405905R1

AXLE PIN

HARNESS ASSY, main cable front, tractors w/magnetic pulse ignition

1шт.

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, cable

1шт.

371036R1

CLIP

cable

1шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

1шт.

16558R1

WASHER

17/64 x 5/8 x .036

1шт.

109084

NUT,1/4"-20, G5

1шт.

46

535872R1

HARNESS ASSY, main cable rear, Start Serial: 46203

1шт.

46

535872R1

HARNESS ASSY, main cable rear, order package, 528735R93, Serial Range: -46202

1шт.

47

358986R1

CABLE CLIP

CLIP, flashing light cable, Start Serial: 46203

2шт.

48

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, rear main harness, Serial Range: -41467

1шт.

48

670043C1

CLIP

rear main harness, Start Serial: 41468

1шт.

49

358986R1

CABLE CLIP

CLIP, flashing light cable, Serial Range: -46202

1шт.

50

SENDING UNIT, refer to fuel tank supports and piping listing section E

1шт.

51

IGNITION COIL, refer to spark plugs, coil, cables and distributor listing eng, 2 parts catalog

1шт.

52

VOLTAGE REGULATOR, refer to alternator generator & connections

1шт.

53

SPEEDOMETER TACHOMETER, refer to engine controls and instruments listing, section H

1шт.

54

GAUGE CLUSTER, refer to engine controls and instruments listing, section H

1шт.

55

INSTRUMENT PANEL, refer to engine controls and instruments listing, section H

1шт.

56

STARTING SWITCH, refer to engine controls & instruments listing, section H

1шт.

57

JUNCTION BLOCK, refer to engine controls and instruments listing, section H

1шт.

58

IGNITION SWITCH, refer to engine controls & instruments listing, section H

1шт.

59

FUSE HOLDER, refer to engine controls & instruments listing, section H

1шт.

60

PUSH BUTTON SWITCH, refer to engine controls & instruments listing section H

1шт.

61

383620R91

ELECTRICAL WIRE

SOCKET ASSY, tachometer light

2шт.

62

384557R1

CLIP

LH panel harness

1шт.

63

399232R91

LIGHT

ASSY, hydrostatic control, hydrostatic tractors

1шт.

134530

NUT,Hex, #6 - 32

2шт.

159336

SCREW,Cross Pan Hd, #6 - 32 x 1/2"

6-32 x 1/2 C-Z cr-rec pan-hd

2шт.

446130

WASHER,#8

11/64 x 13/32 x 18 ga C-Z

2шт.

64

404399R1

CABLE ASSY, hydrostatic control light ground, will work for 379418R91, hydrostatic tractors

1шт.

65

365501R1

TERMINAL CONNECTOR

TERMINAL, hydrostatic control light cable, hydrostatic tractors

2шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

2шт.

66

384396R1

SPADE TERMINAL,Male

TERMINAL, neutral starting switch

2шт.

67

CABLE ASSY, breakaway connector socket to ground, refer to electric breakaway socket listing, this section

1шт.

68

535867R1

SUPPORT ASSY, warning light, Start Serial: 46203

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

69

533091R1

BRACKET, reflector mounting, Start Serial: 46203

2шт.

70

533092R1

REFLECTOR

, Start Serial: 46203

2шт.

163162

SCREW,Self Tap, Cross Pan Hd, #8 - 18 x 1/2"

8-15 x 1/2 CZ FR rec

4шт.

71

537328R91

LIGHT

ASSY, square warning, only serviceable items are lamp, 9417866, amber lens, 537012R1, red lens, 537011R1, gasket, 537010R1, screw, 159578, Start Serial: 46203

1шт.

120371

NUT,1/2"-20, G5

2шт.

493-41052

LOCK WASHER,Ext Tooth, 1/2"

1/2 diameter ext-tooth lock

2шт.

72

539280R1

SWITCH

ASSY, transmission oil temp warning, hydrostatic tractors, Start Serial: 47731

1шт.

73

392441R91

LIGHT

ASSY, transmission oil temp warning, hydrostatic tractors, Start Serial: 47731

1шт.

9417863

BULB,C2F, #1895, 14V

LAMP, no. 1895 12 volt

1шт.

74

405284R1

HARNESS, combination rear light, Serial Range: -40504

1шт.

74

406693R2

HARNESS

combination rear light, Start Serial: 40505

1шт.

74

403302R1

HARNESS ASSY, comb & breakaway conn., equipped w/protective frame attachment, Serial Range: -46202

1шт.

75

539279R1

CABLE ASSY, transmission oil temp warning switch, hydrostatic tractors, Start Serial: 47731

1шт.

76

142020

PLUG, panel button, gear drive tractors, Start Serial: 47731

1шт.

77

403301R1

CABLE ASSY, flasher to light, equipped w/protective frame attachment, Serial Range: -46202

1шт.

77

405226R1

CABLE ASSY, flashing light, equipped w/protective frame attachment, Start Serial: 46203

2шт.

384555R1

CLIP

flashing light cable

6шт.

102637

NUT,1/2"-13, G5

2шт.

179879

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

78

382407R11

BAR

BRACKET ASSY, rear lamp support, tractors w/protective frame attachment

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

86505867

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

79

402111R1

SUPPORT, flasher light bracket LH, tractors w/protective frame attachment

2шт.

102637

NUT,1/2"-13, G5

2шт.

179881

BOLT,1/2" - 13 x 1", Gr 5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

80

536529R1

SUPPORT, flasher light bracket RH, tractors w/protective frame attachment

1шт.

102637

NUT,1/2"-13, G5

2шт.

179881

BOLT,1/2" - 13 x 1", Gr 5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

81

350920R1

CLAMP

combination rear light, tractors w/protective frame attachment

1шт.

528735R93

PACKAGE

main cable rear harness, consists of (1) cable assy 404395R1, (1) harness assy 406693R2, (1) harness assy 535872R1, (3) terminal 384396R1, Serial Range: -46202

1шт.
