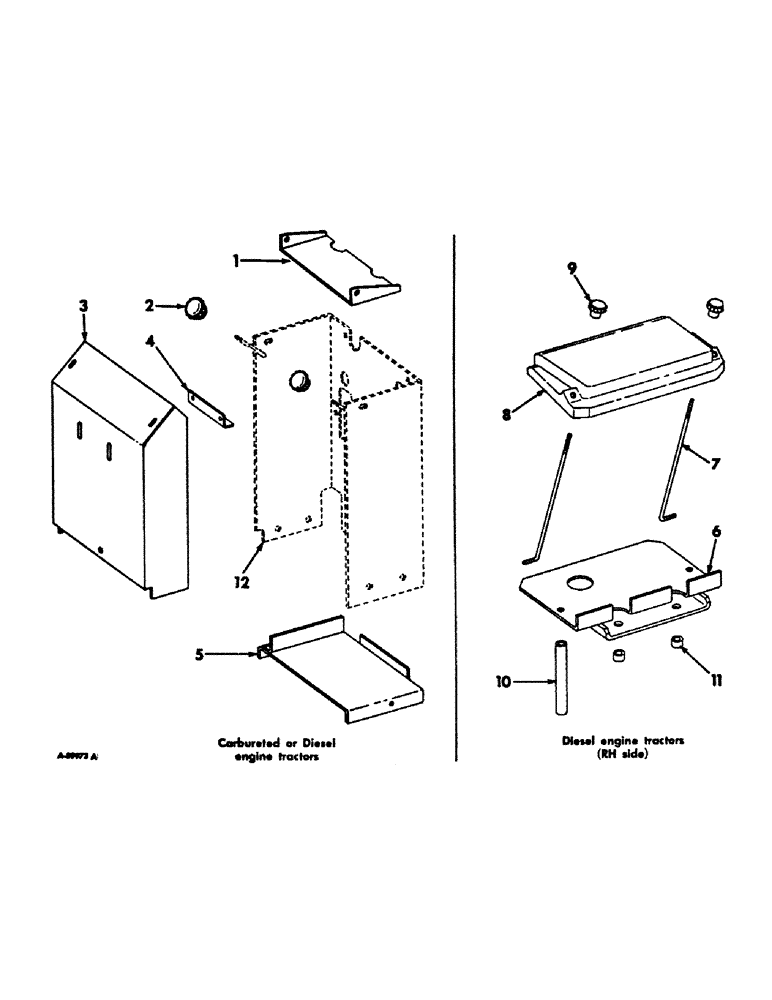

Запчасти Case IH 656 (G-13) - ELECTRICAL SYSTEM, BATTERY TRAY, FARMALL TRACTORS (06) - ELECTRICAL SYSTEMS

1

(Not used this application)

1шт.

2

388216R1

KNOB

battery cover hold down

2шт.

3

538585R1

NO LONGER SERVICED

COVER, w/product graphic, battery housing

1шт.

4

388220R11

BRACKET

ASSY, battery hold down

1шт.

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

2шт.

5

400725R1

BASE

ASSY, battery support, diesel hydrostatic tractors

1шт.

5

389017R11

BASE

ASSY, battery support

1шт.

6

397120R1

TRAY ASSY, battery, hydrostatic tractors

1шт.

179866

BOLT,Hex, 7/16" - 14 x 2", Gr 5

, Serial Range: -41971

2шт.

187238

BOLT,Hex, 1/2" - 13 x 6", Gr 5

SCREW, 1/2-13 x 6 hex-hd cap, Serial Range: -41971

1шт.

179870

BOLT,Hex, 7/16" - 14 x 3", Gr 5

SCREW, 7/16-14 x 3 hex-hd cap, Start Serial: 41972

2шт.

186296

FLOOR,Hex, 1/2" - 13 x 7", Gr 5

SCREW, 1/2-13 x 7 hex-hd cap, Start Serial: 41972

1шт.

6

389011R11

TRAY, battery, gear drive tractors

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

SCREW, 5/16-18 x 1/2 hex-hd cap

1шт.

7

389015R1

ROD

battery hold down

2шт.

8

397124R1

COVER ASSY

COVER, battery, hydrostatic tractors

1шт.

8

389014R1

COVER

battery, gear drive tractors

1шт.

9

388216R1

KNOB

battery cover hold down

2шт.

10

397123R1

SPACER, battery tray support, Serial Range: -41971

1шт.

10

530269R1

SPACER, battery tray support, Start Serial: 41972

1шт.

11

PO11230

SPACER,3/8" Pipe x .406"

battery tray support, Serial Range: -41971

2шт.

11

11008D

SPACER, battery support, Start Serial: 41972

2шт.

12

SUPPORT ASSY, steering, refer to steering support and related parts, section J

1шт.

403729R1

BRACE, battery tray support

1шт.

179881

BOLT,1/2" - 13 x 1", Gr 5

1шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

Farmall diesel hi-clear hydrostatic tractors Hex, 1/2"-13 x 1 1/2", G5, Full Thd

1шт.
