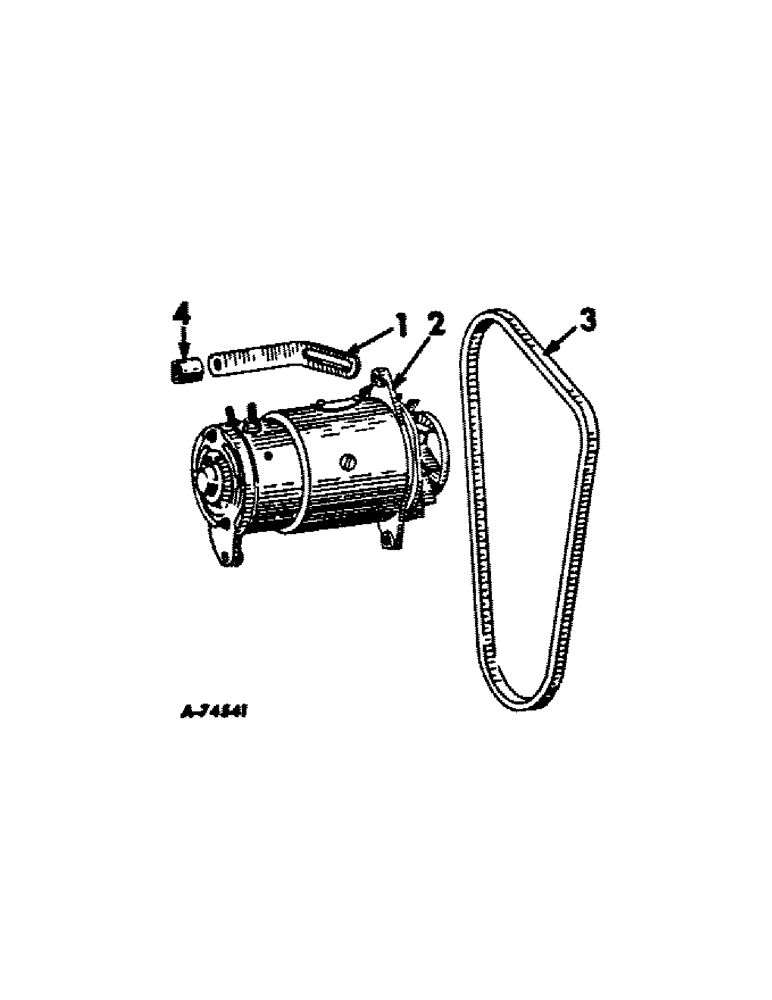

Запчасти Case IH 656 (G-02) - ELECTRICAL SYSTEM, GENERATOR AND CONNECTIONS, FARMALL CARBURATED ENGINE TRACTORS, S/N 23107 & BELOW (06) - ELECTRICAL SYSTEMS

1

373478R1

BRACE, generator, gasoline

1шт.

179850

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

SCREW, 3/8-16 x 2-3/4 hex-hd cap

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

1

371107R2

SUPPORT

BRACE, generator, LP gas

1шт.

179856

BOLT,Hex, 7/16" - 14 x 3/4", Gr 5

SCREW, 3/8-16 x 3-1/2 hex-hd cap

1шт.

2

1100401

GENERATOR ASSY, 369599R92, for components see list of parts under details of generator

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

179819

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

3

332562R1

BELT,0.57" W

V-BELT , Generator and water pump 0.57" W

1шт.

4

280185R1

SPACER

generator brace, gasoline

1шт.

4

371108R1

SPACER,3/8" Pipe x .844"

generator brace, LP gas

1шт.
