(E-12) - FUEL SYSTEM, ELECTRIC AIR CLEANER INDICATOR, FARMALL TRACTORS

Запчасти Case IH 544 (E-12) - FUEL SYSTEM, ELECTRIC AIR CLEANER INDICATOR, FARMALL TRACTORS (02) - FUEL SYSTEM

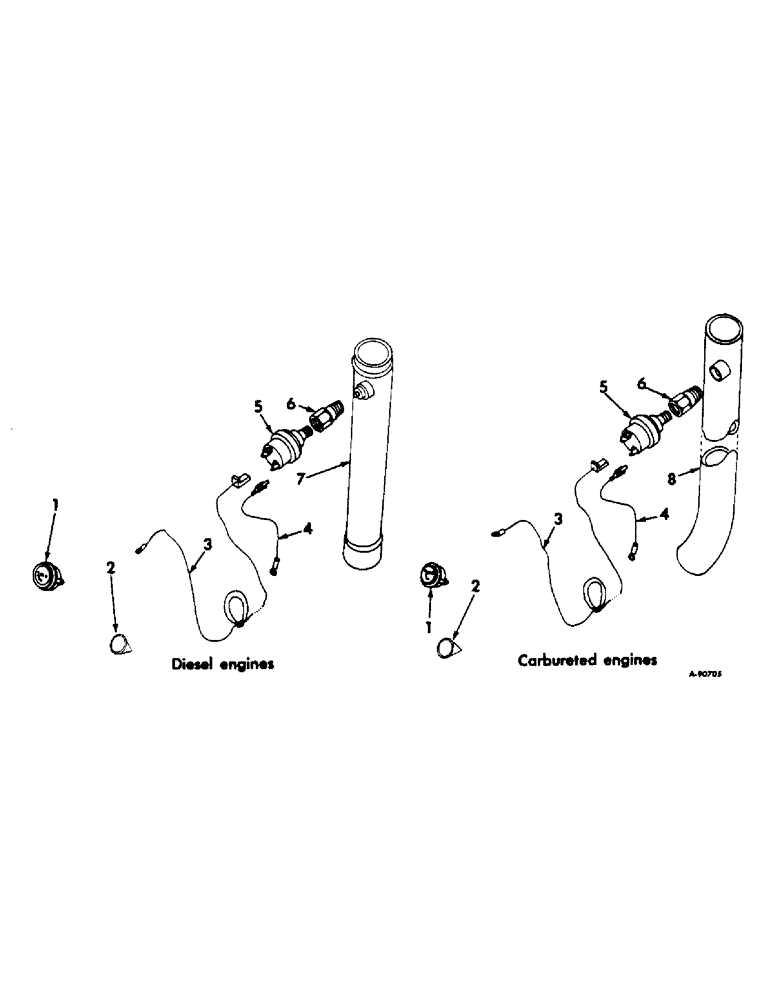

Схема запчастей Case IH 544 - (E-12) - FUEL SYSTEM, ELECTRIC AIR CLEANER INDICATOR, FARMALL TRACTORS (02) - FUEL SYSTEM
2
1
4
4
5
1
2
7
3
6
5
6
8
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

397942R91

INDICATOR

ASSY, electric air cleaner

1шт.

2

397943R1

SPACER, electric air cleaner gauge

1шт.

3

405208R1

CABLE ASSY, junction block, will work for 367047R91

1шт.

4

405211R1

CABLE PULLING GRIP

CABLE ASSY, vacuum switch to ground, will work for 377120R92

1шт.

5

389682R91

SWITCH

electric air cleaner vacuum

1шт.

6

389908R91

ADAPTER

ASSY, vacuum switch

1шт.

7

400936R2

HOSE, air cleaner outlet

1шт.

8

401348R1

PIPE ASSY, air cleaner outlet

1шт.
