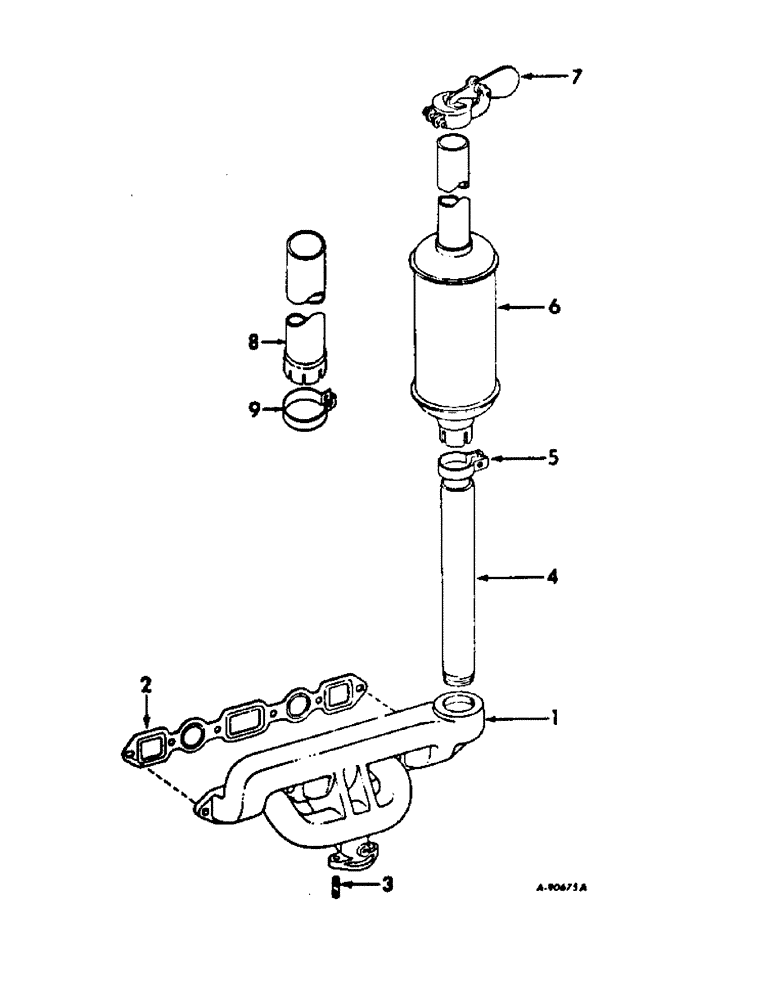

Запчасти Case IH 544 (C-02) - CARBURETED ENGINE, INTAKE MANIFOLD AND EXHAUST SYSTEM, VERTICAL EXHAUST (01) - ENGINE

1

398071R1

MANIFOLD

intake and exhaust

1шт.

405537R1

BOLT,Hex, 3/8" - 16 x 1 3/8"

manifold

6шт.

400877R1

WASHER

manifold bolt

6шт.

445671

PLUG,Sq Hd, 1/8"-27 NPTF

1/8-27 sq-hd pipe

1шт.

2

530682R1

MANIFOLD GASKET

manifold, replaces 398072R1

1шт.

3

181370

BOLT,Hex, 3/8" - 24 x 1 1/4", Gr 5

SCREW, 3/8-24 x 1-1/4 hex-hd cap

4шт.

103026

NUT,3/8"-24, G5

4шт.

103026

NUT,3/8"-24, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

4

369613R1

PIPE

exhaust, Farmall tractors

1шт.

4

370643R2

PIPE

exhaust, International tractors

1шт.

5

403585R1

CLAMP

exhaust muffler

1шт.

102635

NUT,3/8"-16, G5

1шт.

179842

SPACER

3/8-16 x 1-3/8 hex-hd cap

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

6

403550R2

MUFFLER

exhaust

1шт.

7

403586R1

CYLINDER END CAP

CAP ASSY, weather

1шт.

8

527705R1

PIPE, exhaust muffler extension, tractors w/cab or protective frame

1шт.

9

527706R1

CLAMP, exhaust muffler extension pipe, tractors w/cab or protective frame

1шт.

17471R1

BOLT,Hex, 3/8" - 16 x 1 1/2"

3/8-16 x 1-1/2 hex-hd mach

1шт.

102635

NUT,3/8"-16, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.
