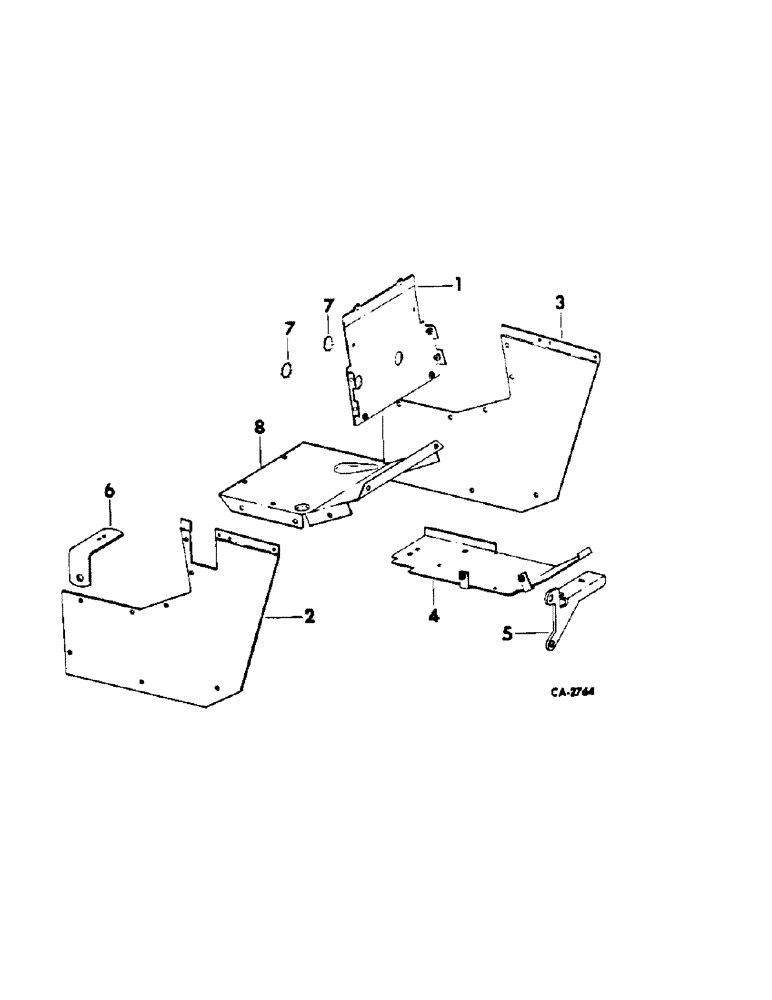

Запчасти Case IH 544 (A-21) - CHASSIS, RADIATOR AND SHEET METAL, PLATFORMS AND SUPPORTS Chassis, Radiator & Sheet Metal

1

396232R2

PANEL ASSY, platform front, tractors equipped w/front end loader, 2544 carbureted engine tractors, also order two plugs, 192280

1шт.

1

530757R2

PANEL ASSY, platform front, 2544 diesel engine tractors, also order two plugs, 192280

1шт.

2

403320R1

PANEL ASSY.

PANEL ASSY, rear hood lower RH

1шт.

21592R1

SCREW, 5/16-18 x 1/2 cr-rec-truss-hd mach

5шт.

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

2шт.

3

406562R1

PANEL ASSY, rear hood lower LH

1шт.

21952R1

SCREW, 5/16-18 x 1/2 cr-rec truss-hd mach

5шт.

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

2шт.

4

404746R92

PLATFORM ASSY, LH

1шт.

14993R1

BOLT, 1/4-20 sq-nk crg

3шт.

131-883

SPRING NUT,Rtnr, 5/16" - 18

5/16-18 floating cage

2шт.

109084

NUT,1/4"-20, G5

3шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

1шт.

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

2шт.

5

399686R1

BRACKET, platform front LH

1шт.

6

398748R2

SUPPORT, platform rear

1шт.

7

192280

HOLE PLUG BUTTON,1 1/4"

PLUG, 1-1/4 button

2шт.

8

538588R1

PLATFORM w/product graphic, center

1шт.

397235R1

TREAD, non-skid, used w/frame, 401257R93

3шт.

8

396632R1

RING

oil suction tube seal, used w/rear frame, 401257R91

1шт.
