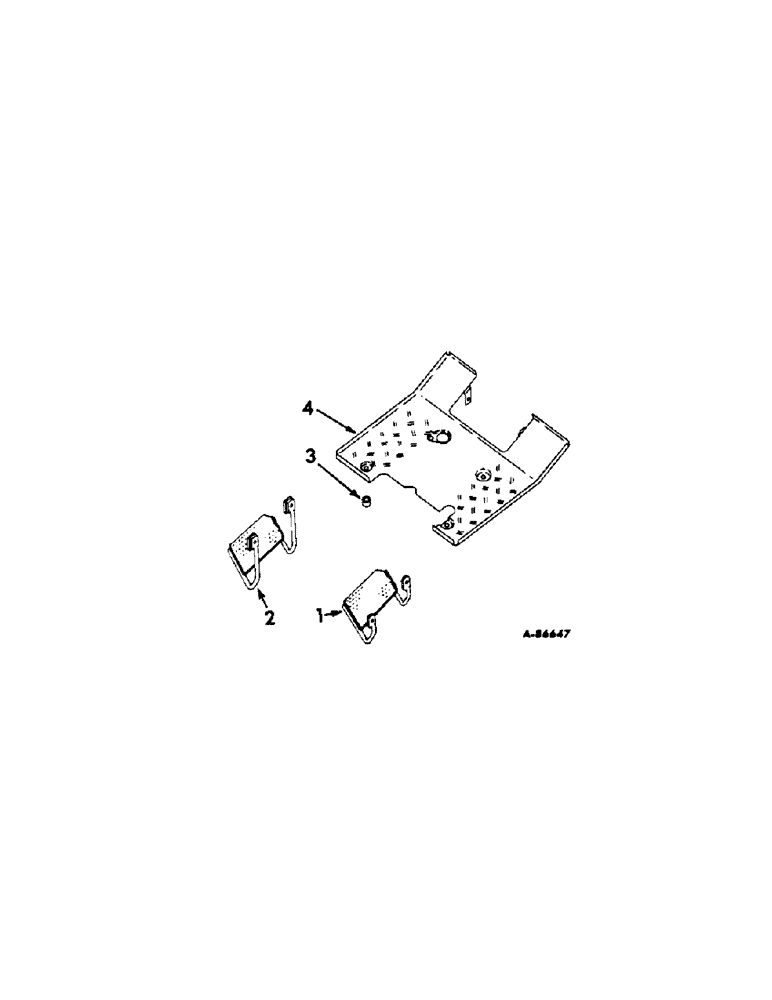

Запчасти Case IH 544 (A-16) - CHASSIS, RADIATOR AND SHEET METAL, PLATFORM AND STEP, FARMALL TRACTORS Chassis, Radiator & Sheet Metal

1

397133R1

STEP

LH mounting, gear drive tractors

1шт.

1

399032R1

STEP, mounting LH, tractors w/hydrostatic drive

1шт.

271605

BOLT,Hex, 3/4" - 10 x 1 1/4", Gr 5

SCREW, 3/4-10 x 1-1/4 hex-hd cap

2шт.

2

NSS

NOT SOLD SEPARAT

(Not used in this application)

1шт.

3

120511H

SPACER, platform

4шт.

4

388307R31

PLATFORM ASSY, rear frame

1шт.

179873

BOLT,Hex, 7/16" - 14 x 3 3/4", Gr 5

4шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.
