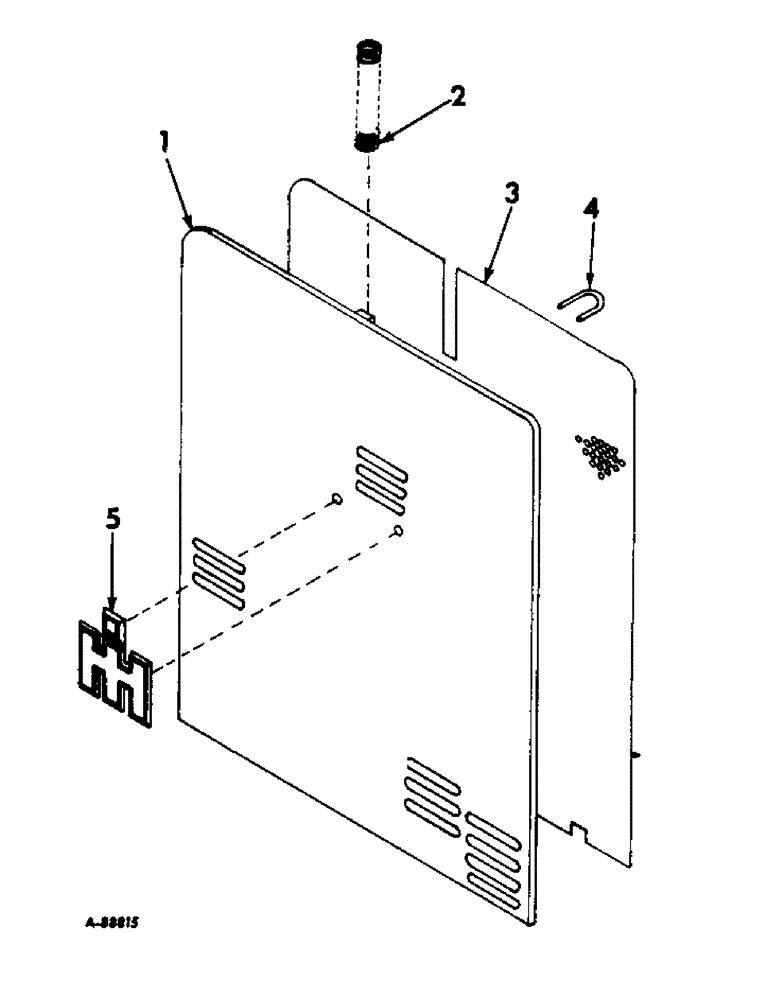

Запчасти Case IH 544 (A-10) - CHASSIS, RADIATOR AND SHEET METAL, HEAVY DUTY GRILLE, INTERNATIONAL 2544 TRACTORS Chassis, Radiator & Sheet Metal

1

397363R91

GRILLE ASSY, heavy duty radiator

1шт.

2

396551R1

SPRING

retainer grille

1шт.

23771

PIN, 3/64 x 1 cot., stainless stl

1шт.

173639

SCREW

0, rd-hd blunt metallic drive

1шт.

3

397366R1

SCREEN, heavy duty grille

1шт.

4

392784R1

FASTENER, radiator grille screen

4шт.

5

2751844R1

PRODUCT GRAPHIC

IH emblem, die casting, optional with 2751846R1

1шт.

272488

CLEVIS PIN

SCREW, 10-24 x 5/8 C-Z slt hex-hd mach

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

5

2751846R1

EMBLEM CASE/IH

PRODUCT GRAPHIC, IH emblem, plastic, optional with 2751844R1

1шт.

385128R1

SCREW,Sl Rnd Hd, #10 - 16 x 1/2"

10-16 x 1/2 slt rd-hd

2шт.

395-31022

WASHER,#10

13/16 x 15/32 x .049 C-Z

2шт.
