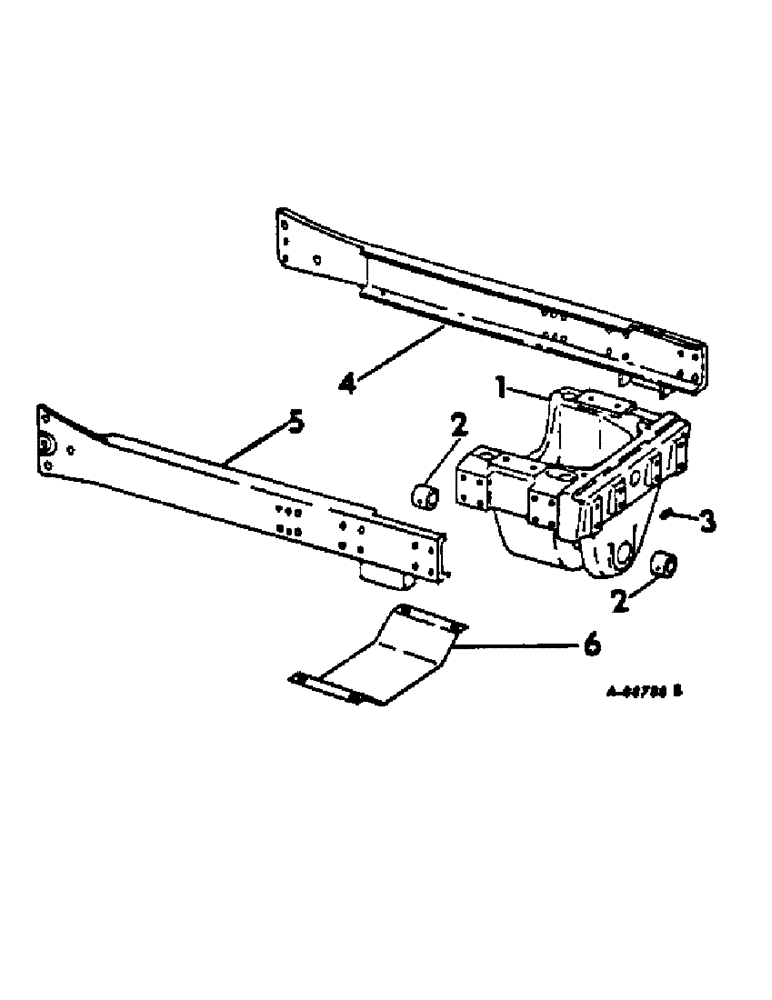

Запчасти Case IH 544 (A-08) - CHASSIS, RADIATOR AND SHEET METAL, FRONT FRAME CHANNELS AND BOLSTERS, INTERNATIONAL TRACTORS Chassis, Radiator & Sheet Metal

1

395857R11

BOLSTER ASSY

1шт.

2

395870R1

BUSHING,44.73mm ID x 47.85mm OD x 40.64mm L

front axle pivot

2шт.

3

443567

LUBE NIPPLE,1/4" x .56 lg, Drive

FITTING, front axle lub

2шт.

4

400252R1

CHANNEL ASSY, front frame LH

1шт.

271606

BOLT,Hex, 3/4" - 10 x 1 3/8", Gr 5

SCREW, 3/4-10 x 1-3/8 hex-hd cap

1шт.

271611

BOLT,Hex, 3/4" - 10 x 2", Gr 5

SCREW, 3/4-10 x 2 hex-hd cap

3шт.

20065R1

BOLT,Hex, 5/8" - 11 x 2 1/2", Gr 8

SCREW, 5/8-11 x 2-1/2 hex-hd cap, carbureted engine tractors

2шт.

555301R1

BOLT,Hex, 5/8" - 11 x 1 3/8", Gr 8

SCREW, 5/8-11 x 1-3/8 hex-hd cap

4шт.

525841R1

BOLT,Hex, 5/8" - 11 x 1 1/2", Gr 8

SCREW, 5/8-11 x 1-1/2 hex-hd cap, diesel engine tractors

4шт.

5

400253R1

CHANNEL ASSY, front frame RH

1шт.

271606

BOLT,Hex, 3/4" - 10 x 1 3/8", Gr 5

SCREW, 3/4-10 x 1-3/8 hex-hd cap

3шт.

271611

BOLT,Hex, 3/4" - 10 x 2", Gr 5

SCREW, 3/4-10 x 2 hex-hd cap

3шт.

20065R1

BOLT,Hex, 5/8" - 11 x 2 1/2", Gr 8

SCREW, 5/8-11 x 2-1/2 hex-hd cap, carbureted engine tractors

2шт.

555301R1

BOLT,Hex, 5/8" - 11 x 1 3/8", Gr 8

SCREW, 5/8-11 x 1-3/8 hex-hd cap

4шт.

525841R1

BOLT,Hex, 5/8" - 11 x 1 1/2", Gr 8

SCREW, 5/8-11 x 1-1/2 hex-hd cap, diesel engine tractors

4шт.

6

NSS

NOT SOLD SEPARAT

(Not used in this application)

1шт.
