Запчасти Case IH 544 (N-14[1]) - PARTS ACCESSORIES AND ATTACHMENTS, SLOW MOVING VEHICLE REFLECTOR MOUNTING BRACKET Accessories & Attachments

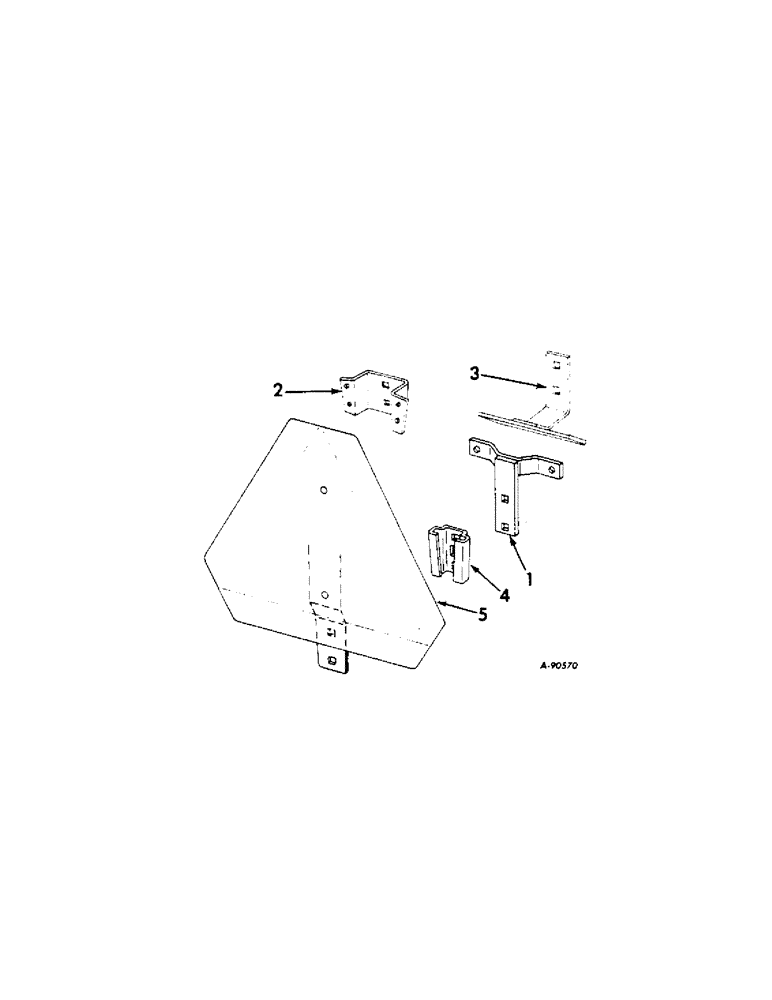

Схема запчастей Case IH 544 - (N-14[1]) - PARTS ACCESSORIES AND ATTACHMENTS, SLOW MOVING VEHICLE REFLECTOR MOUNTING BRACKET Accessories & Attachments
3
4
2
1
5

Артикул

Название

Примечание

Количество

398972R91

PARTS ACCESSORY, S.M.V. mtg bracket, Farmall tractors

1шт.

401374R91

PARTS ACCESSORY, S.M.V. mtg bracket, Farmall tractors equipped w/cab

1шт.

534765R91

PARTS ACCESSORY, S.M.V. mtg bracket, International tractors

1шт.

1

398973R1

BRACKET

ASSY, reflector mounting, Farmall tractors

1шт.

1

534714R1

BRACKET ASSY, S.M.V. emblem mounting, International tractors

1шт.

21535R1

SCRWE, 5/16-18 x 1-1/4 hex-hd cap

2шт.

2

NSS

NOT SOLD SEPARAT

(Not used in this application)

1шт.

3

401376R1

SUPPORT ASSY, reflector mounting, Farmall tractors equipped w/cab

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 C-Z hex-hd cap

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

4

398976R1

BRACKET

SOCKET, SMV emblem mounting

1шт.

19428R1

BOLT, 5/16-18 x 5/8 cd short sq-nk crg

2шт.

19296R1

NUT,5/16"-18, G5

5/16-18 C-Z hex.

2шт.

5

407218R1

PACKAGE

EMBLEM, slow moving vehicle, aluminum

1шт.

5

407220R1

PRODUCT GRAPHIC

EMBLEM, slow moving vehicle, steel

1шт.

Выбрано товаров: 16
