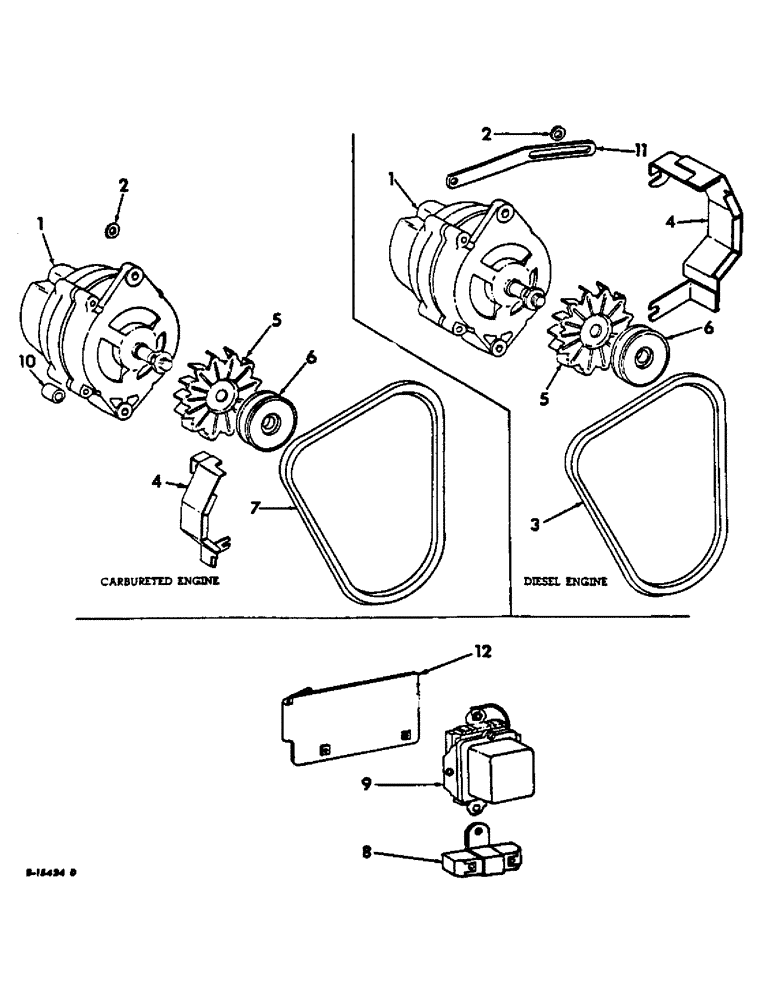

Запчасти Case IH 544 (G-02) - ELECTRICAL SYSTEM, ALTERNATOR GENERATOR AND CONNECTIONS (06) - ELECTRICAL SYSTEMS

1

1100805

GENERATOR

ALTERNATOR-GENERATOR ASSY, 702337C91, 32 ampere, for components see list of parts under details of alternator generator

1шт.

1

1100791

GENERATOR

ALTERNATOR-GENERATOR ASSY, 397091R91, 55 ampere, for components see list of parts under details of alternator generator

1шт.

1

103805A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volt 55 ampere

1шт.

1

103805A1C

CORE-ALTERNATOR

Return Number

1шт.

1

103806A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volt 60 ampere

1шт.

1

103806A1C

CORE-ALTERNATOR

Return Number

1шт.

225-14112

NUT,#12-24

NUT, 12-24 hex. mach screw

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

492-11012

LOCK WASHER,#12

WASHER - lock, #12

1шт.

2

280185R1

SPACER

SPACER, alternator-generator brace

1шт.

3

401128R2

V-BELT,0.50" W x 57.75" L

Alternator-generator & water pump

1шт.

4

71496C92

PACKAGE, alternator and fan pulley shield, carbureted engine tractors, Farmall serial no. 15004 & below, International serial no. 16654 & below, also order package, 537722R91

1шт.

120376

NUT,5/16"-18, G5

NUT, 5/16"-18, G5

1шт.

9413953

LOCK NUT,3/8"-16, GB

NUT, 3/8-16 PHC hex. lock

1шт.

537326R1

BOLT

SCREW, 5/16-18 x 1-1/2 ZND hex-hd cap

1шт.

186288

BOLT,Hex, 3/8" - 16 x 4 1/2", Gr 5

SCREW, 3/8-16 x 4-1/2 hex-hd cap

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, 11/32 x 11/16 x .051 C-Z

1шт.

20285H

WASHER

WASHER, 13/32 x 3/4 x 11 ga

3шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

4

396365R2

PROTECTOR

SHIELD ASSY, alternator fan & pulley, diesel engine tractors

1шт.

9413953

LOCK NUT,3/8"-16, GB

NUT, 3/8-16 PHC hex. lock

1шт.

179820

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

BOLT, Hex, 5/16"-18 x 1 1/4", G5

1шт.

280161

BOLT,Hex, 3/8" - 16 x 3", Gr 5

BOLT, Hex, 3/8"-16 x 3", G5

1шт.

186282

BOLT,Hex, 3/8" - 16 x 3 1/4", Gr 5

SCREW, 3/8-16 x 3-1/4 hex-hd cap, International tractors

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

5

221425R1

FAN

FAN, alternator generator

1шт.

6

1949358

PULLEY

PULLEY, alternator-generator, 606939C1, carbureted engine tractors

1шт.

6

1961261

PULLEY

PULLEY, alternator generator, 384986R1, diesel engine tractors

1шт.

7

403303R1

V-BELT,0.38" W

Alternator generator & water pump

1шт.

8

1960890

RESISTOR

RESISTANCE UNIT, 534784R1

1шт.

109084

NUT,1/4"-20, G5

NUT, 1/4"-20, G5

1шт.

179797

BOLT,Hex, 1/4" - 20 x 1", Gr 5

BOLT, Hex, 1/4"-20 x 1", G5

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

147697

WASHER

WASHER, 5/16 x 7/8 x .060 plain

1шт.

9

1119516

REGULATOR

REGULATOR ASSY, voltage, 384988R91, composed of (1) regulator 1119515, (1) cover 1958151, (2) screw, cover 1962733, (1) shock bracket package 1962629

1шт.

109084

NUT,1/4"-20, G5

NUT, 1/4"-20, G5

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

10

384993R1

SPACER

SPACER, alternator generator mounting bracket, long

1шт.

11

396359R1

SPARE PART

STRIP, alternator mtg brace

1шт.

280185R1

SPACER

SPACER, alternator mtg brace strip

1шт.

9635082

NUT,5/16" - 18, Gr 5

NUT, 5/16-18 hex.

1шт.

179820

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

BOLT, Hex, 5/16"-18 x 1 1/4", G5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

12

402025R1

SPARE PART BRACKET ASSY, voltage regulator mounting, Farmall diesel engine tractors

1шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

BOLT, Hex, 1/4"-20 x 5/8", G5, Full Thd

2шт.

12

397809R1

SUPPORT ASSY, voltage regulator mounting bracket, Farmall carbureted engine tractors

1шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

BOLT, Hex, 1/4"-20 x 5/8", G5, Full Thd

2шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

SCREW, 1/4-20 x 3/4 hex-hd cap

2шт.

12

398257R1

SPARE PART BRACKET ASSY, voltage regulator mounting, International tractors

1шт.
