Запчасти Case IH 544 (B-11) - POWER TRAIN, MOTOR CYLINDER BLOCK KIT, TRACTORS WITH HYDROSTATIC DRIVE (03) - POWER TRAIN

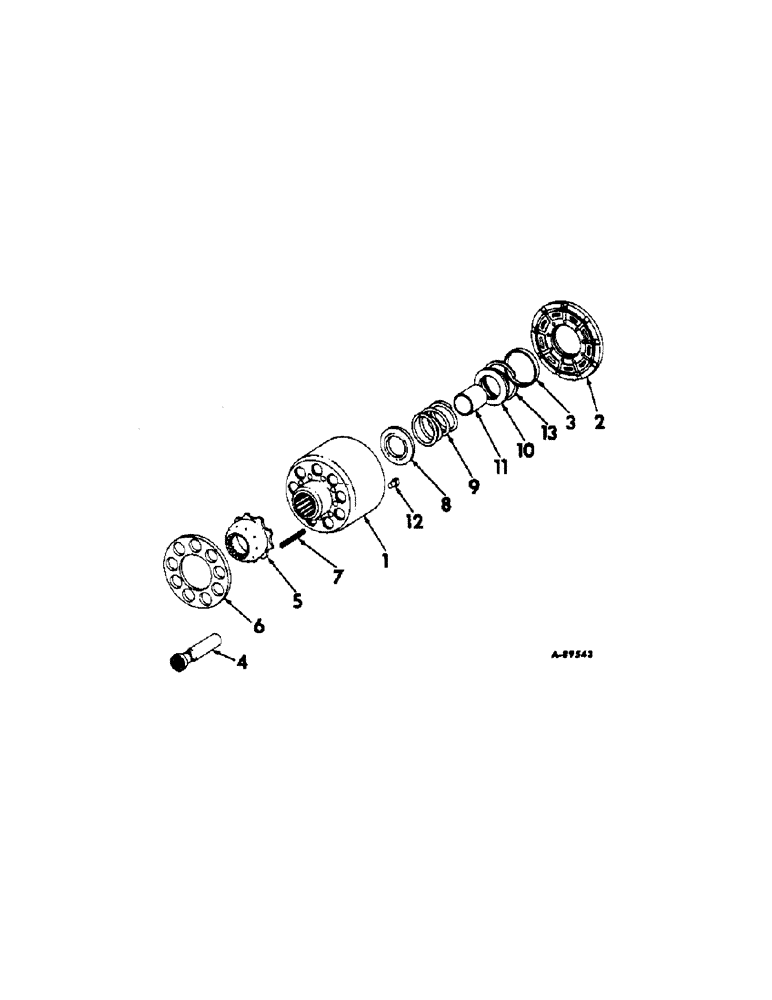

Схема запчастей Case IH 544 - (B-11) - POWER TRAIN, MOTOR CYLINDER BLOCK KIT, TRACTORS WITH HYDROSTATIC DRIVE (03) - POWER TRAIN
4
6
12
3
1
11
5
9
10
8
13
7
2

Артикул

Название

Примечание

Количество

1

399057R1

BLOCK

ASSY, cylinder

1шт.

2

399058R1

PLATE

bearing

1шт.

3

399059R1

WEAR PLATE

PILOT, bearing plate

1шт.

4

128021C1

PISTON ASSY.

PISTON ASSY, replaces 399060R2

9шт.

5

399061R1

GUIDE

slipper retainer

1шт.

6

399062R1

SLIPPER

RETAINER, slipper

1шт.

7

399063R1

SPRING

slipper retainer guide

9шт.

8

399064R1

SEAT

spring

1шт.

9

532304R1

SPRING

cylinder block, replaces 399065R1

1шт.

10

399066R1

WASHER

RETAINER, spring

1шт.

11

399067R1

BUSHING

GUIDE, spring

1шт.

12

527636R1

PIN

piston cylinder, replaces 394196R1

1шт.

13

21514R1

RING,#275, 2.635", Ext Spiral

internal retaining

1шт.

Выбрано товаров: 13
