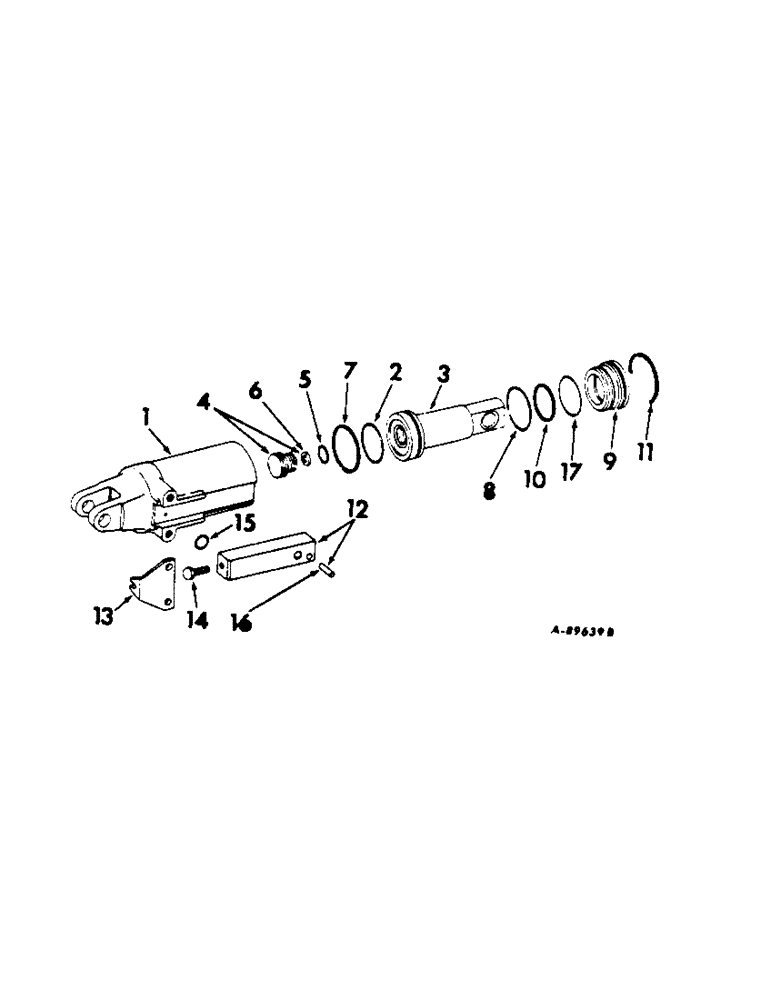

Запчасти Case IH 544 (B-08[1]) - POWER TRAIN, PUMP SERVO CYLINDER, TRACTORS WITH HYDROSTATIC DRIVE (03) - POWER TRAIN

1

396101R1

BODY

pump servo cylinder

1шт.

2

382781R1

O-RING,1.737" ID x 0.103" Width

1-3/4 x 1-15/16 x 3/32, piston sealing ring

1шт.

3

396102R1

PISTON

pump cylinder

1шт.

4

531285R91

PLUG

ASSY, fixed orifice, tractors w/hand operated control

1шт.

4

529981R11

PLUG ASSY, fixed orifice, International tractors w/foot pedal control

1шт.

5

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32, fixed orifice

1шт.

6

529376R1

STRAINER ELEMENT

STRAINER, orifice, replaces 397261R1

1шт.

7

396103R1

OLIVE

RING, piston sealing

1шт.

8

384498R1

O-RING,0.103" Thk x 1.925" ID, -135, Cl 5, 75 Duro

1-15/16 x 2-1/8 x 3/32, piston pump guide

1шт.

9

396104R1

GUIDE

piston pump

1шт.

10

406460R1

SEAL

RING, guide sealing inner

1шт.

11

396106R1

ELECTRICAL WIRE

RING, retaining

1шт.

12

396678R11

BLOCK

w/pin, 20020R1, variable orifice adjustable

1шт.

13

396107R1

SUPPORT

block adj bracket

1шт.

14

396108R2

BOLT,Hex, 5/16" - 24 x 1.125"

block adj

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

2шт.

15

392385R1

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

-016, 90 Duro, .614" ID x .070" Thk, Variable orifice adj block

1шт.

16

20020R1

DOWEL,5/16" x 1"

PIN, 5/16 x 1 dowel, International tractors w/foot pedal control

1шт.

17

328138R1

O-RING,0.103" Thk x 1.612" ID, -130, Cl 5, 75 Duro

1-5/8 x 1-13/16 x 3/32, pump piston guide inner

1шт.

400841R92

SEAL PACKAGE

PACKAGE, pump servo cylinder o-ring, consists of (1) o-ring 328138R1, (1) o-ring 364885R1, (1) o-ring 392385R1, (1) o-ring 382781R1, (1) o-ring 384498R1, (1) ring 396103R1, (1) ring 406460R1, (1) ring 396109R1

1шт.
