Запчасти Case IH 504 (019) - CARBURETED ENGINE, CAMSHAFT AND RELATED PARTS (01) - ENGINE

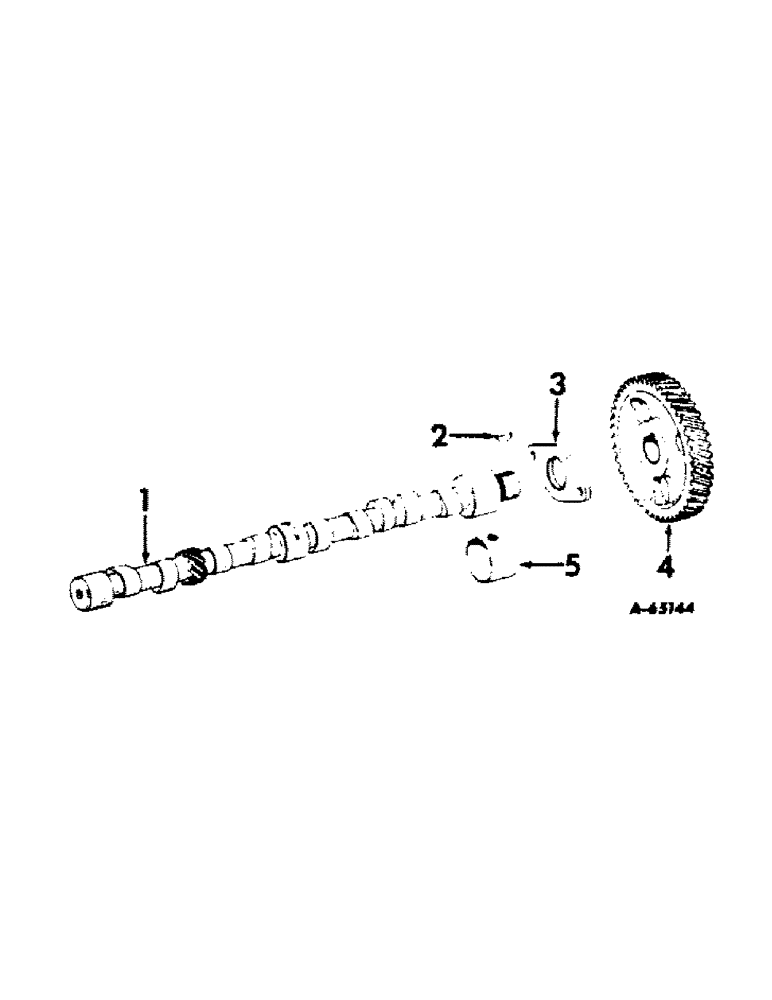

Схема запчастей Case IH 504 - (019) - CARBURETED ENGINE, CAMSHAFT AND RELATED PARTS (01) - ENGINE
3
1
5
4
2

Артикул

Название

Примечание

Количество

1

353609R31

CAMSHAFT

ASSY.

1шт.

2

126-117

WOODRUFF KEY,#91, 1/4" x 3/4", HT

1/4 x 3/4 Woodruff no. 91, camshaft gear

1шт.

3

43249D

PLATE

camshaft thrust, optional w/374704R1

1шт.

3

374704R1

PLATE ASSY.

PLATE, camshaft thrust, opeional w/43249D

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

4

375712R1

GEAR

camsharft, 66T

1шт.

5

375747R1

BUSHING,46.19mm ID x 49.45mm OD x 30.43mm L

camshaft front

1шт.

Engine bored for camshaft, no rear or center bushing.

1шт.

Выбрано товаров: 9
