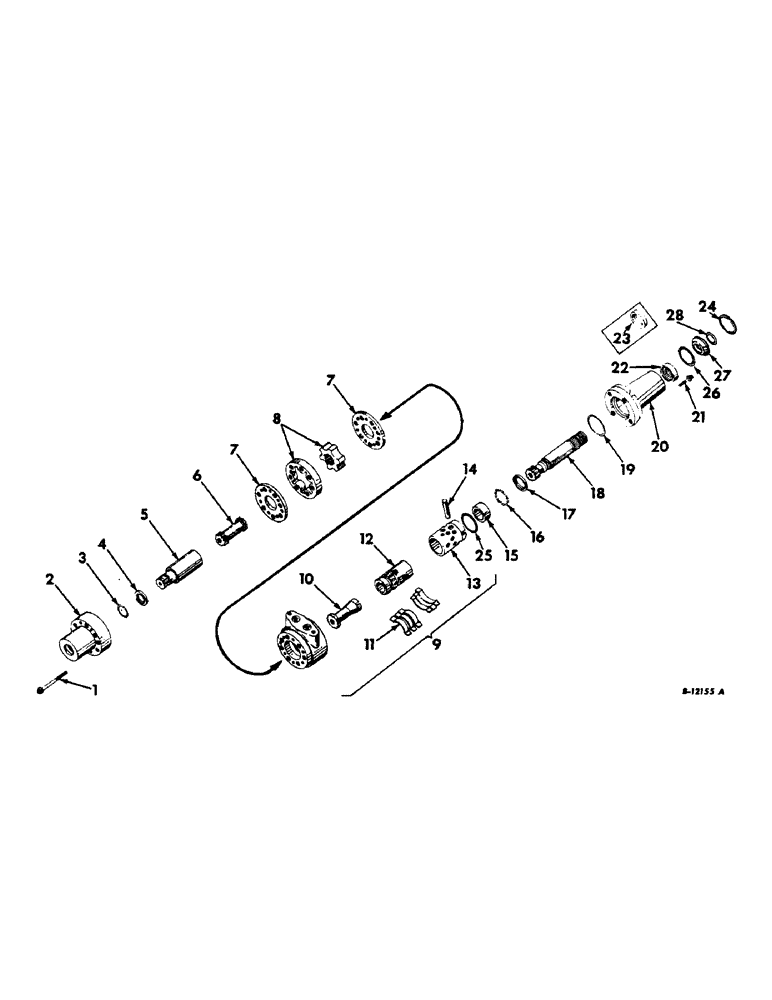

Запчасти Case IH 504 (178) - STEERING MECHANISM, POWER STEERING UNIT, FARMALL TRACTORS W/O ADJUSTABLE WIDE TREAD FRONT AXLE Steering Mechanism

373069R92

UNIT, hydraulic power steering, order 373069R94, Serial Range: 501-870

1шт.

373069R93

PUMP

UNIT, hydraulic power steering, order 373069R94, Serial Range: 871-4250

1шт.

373069R94

PUMP

UNIT, hydraulic power steering, 4251 up

1шт.

1

374538R1

SCREW, 1/4-20 x 2 power cap

7шт.

2

374536R1

HOUSING, power end

1шт.

3

355965R1

O-RING,0.139" Thk x 0.921" ID, -213, Cl 5, 75 Duro

15/16 x 1-3/16 x 1/8, power end

1шт.

4

374537R1

SPECIAL WASHER

seal ring retainer

1шт.

5

374535R91

SHAFT

ASSY, power end

1шт.

7

374534R1

PLATE, gerotor

2шт.

8

374533R91

ROTOR

GEROTOR SET

1шт.

9

374523R91

HOUSING ASSY, sleeve and spool, less reference 10

1шт.

10

374531R1

DRIVE, control end

1шт.

11

374525R1

SPRING

centering

6шт.

12

NSS

NOT SOLD SEPARAT

SPOOL, not serviced separately, order 374523R91

1шт.

13

NSS

NOT SOLD SEPARAT

SLEEVE, not serviced separately, order 374523R91

1шт.

14

374524R1

PIN

control, Serial Range: sleeve-spool

1шт.

15

374529R1

BUSHING

RACE, control shaft thrust brg, inner

1шт.

16

16006R1

BALL

3/16 cr-stl, control shaft locating

14шт.

17

NSS

NOT SOLD SEPARAT

RACE, control cap thrust brg, not serviced separately, order 374898R93

1шт.

18

374530R1

SHAFT, control

1шт.

19

364108R1

O-RING,0.103" Thk x 1.799" ID, -133, Cl 5, 75 Duro

1-13/16 x 2 x 3/32, control end cap

1шт.

20

374898R93

HUB

CAP ASSY, control end, composed of (1) bearing 371221R91, (1) O-ring 355965R1, (1) O-ring 368109R1, (1) race (NSS), (1) retainer 382110R1, (1) ring 382111R1

1шт.

21

374540R1

BOLT,1/4" - 20 x 3/4"

SCREW, 1/4-20 x 3/4 wrench drive cap, control end

4шт.

22

371221R91

BEARING, NEEDLE,Needle, 22.21mm ID x 28.59mm OD x 9.52mm W

BEARING, control shaft needle

1шт.

23

374527R91

SEAL

control end cap, Serial Range: 501-4250

1шт.

24

382111R1

RING, retaining, 871 up

1шт.

25

372764R1

O-RING,0.103" Thk x 1.11" ID, -122, Cl 5, 75 Duro

1-1/8 x 1-5/16 x 3/32, brg race, 871 up

1шт.

26

368109R1

O-RING,1.239" ID x 0.07" Width

1-1/4 x 1-3/8 x 1/16, end cap, 4251 up

1шт.

27

355965R1

O-RING,0.139" Thk x 0.921" ID, -213, Cl 5, 75 Duro

15/16 x 1-3/16 x 1/8, end cap retainer, 4251 up

1шт.

28

382110R1

WASHER

RETAINER, end cap O-ring, 4251 up

1шт.

374539R1

FLUID

SEALANT, loctite cap screw

1шт.

381363R91

PISTON RING SET

PACKAGE, power steering unit O-ring service, consists of (1) O-ring 355965R1, (1) O-ring 364108R1, (1) O-ring 372764R1, (1) oil seal 374527R91, (1) sealant 374539R1

1шт.

For use on units 373069R91, R92 & R93.

1шт.

382561R91

PISTON RING SET

PACKAG, power steering unit O-ring service, consists of (1) O-ring 355965R1, (1) O-ring 364108R1, (1) O-ring 368109R1, (1) O-ring 372764R1, (1) ring 382111R1, (1) sealant 374539R1

1шт.
