Запчасти Case IH 504 (273) - MISCELLANEOUS EQUIPMENT, PNEUMATIC TIRE PUMP, ENGINAIR Miscellaneous Equipment

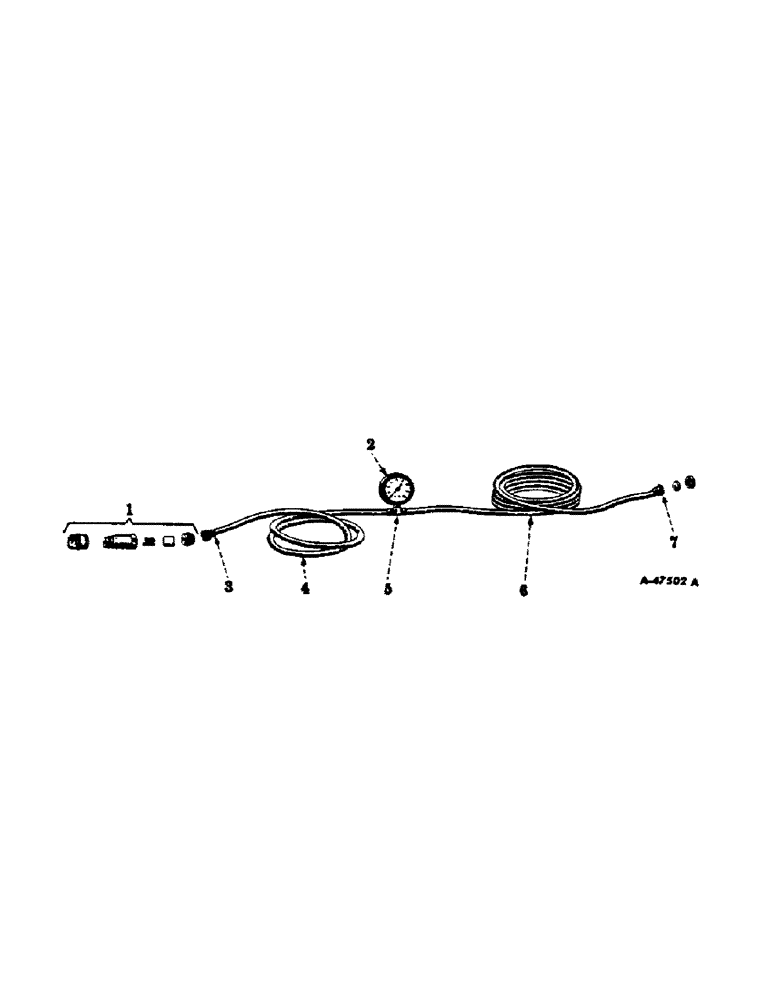

Схема запчастей Case IH 504 - (273) - MISCELLANEOUS EQUIPMENT, PNEUMATIC TIRE PUMP, ENGINAIR Miscellaneous Equipment
2
7
1
6
5
3
4

Артикул

Название

Примечание

Количество

365997R91

TOOL

PUMP ASSY, tire

1шт.

1

365998R91

ELEMENT

W/ADAPTERS, pumping

1шт.

2

37895DA

GAUGE, air pressure

1шт.

3

37890D

RING, hose clamp

4шт.

4

37892D

HOSE, tire pump, 4 ft.

1шт.

5

37893D

CONNECTION, air pressure gauge

1шт.

6

37891D

HOSE, tire pump, 12 ft.

1шт.

7

357375R91

AIR CHUCK, 3/4

2шт.

69912D

NUT, swivel

1шт.

Выбрано товаров: 9
