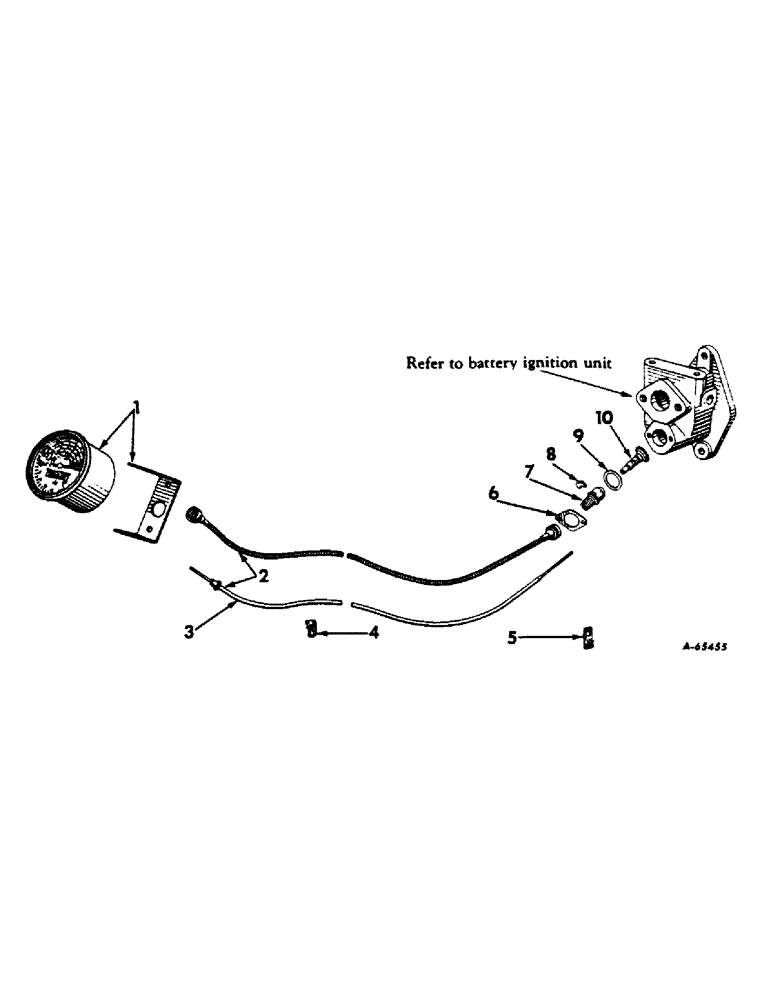

Запчасти Case IH 504 (272) - ENGINE CONTROLS, INSTRUMENTS & PANEL, TACHOMETER, CARBURETED ENGINE TRACTORS Engine Controls

1

383089R91

TACHOMETER

ASSY

1шт.

2

150938R91

CABLE PULLING GRIP

SHAFT W/CORE, tachometer, Farmall tractors

1шт.

2

370197R91

CABLE

SHAFT W/CORE, tachometer, International tractors

1шт.

3

150936R91

CORE

ASSY, tachometer, Farmall tractors

1шт.

3

370215R91

CORE

ASSY, tachometer, International tractors

1шт.

4

363812R1

CLIP, tachometer flexible drive shaft, on fuel tank support LH rear mounting bolt, Farmall tractors

1шт.

4

355574R1

CLIP

tachometer flexible drive shaft, on clutch housing upper LH rear tapped hole, International tractors

1шт.

179833

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

5

355574R1

CLIP

tachometer flexible drive shaft, on cylinder head RH lower tapped hole, Farmall tractors

1шт.

5

361774R1

CLIP, tachometer flexible drive shaft, on cylinder head RH lower tapped hole, International tractors

1шт.

6

363817R1

RETAINER

PLATE, tachometer connection housing

1шт.

435429

SCREW, 10-32 x 9/16 C-Z slt-rd-hd mach Slotted Rd Hd, #10-32 x 9/16"

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

7

369692R1

HOUSING

tachometer connection

1шт.

8

369693R1

SUPPORT

RETAINER, tachometer drive gear

1шт.

9

363814R1

GASKET

tachometer connection housing

1шт.

10

369695R91

GEAR

ASSY, tachometer drive

1шт.
