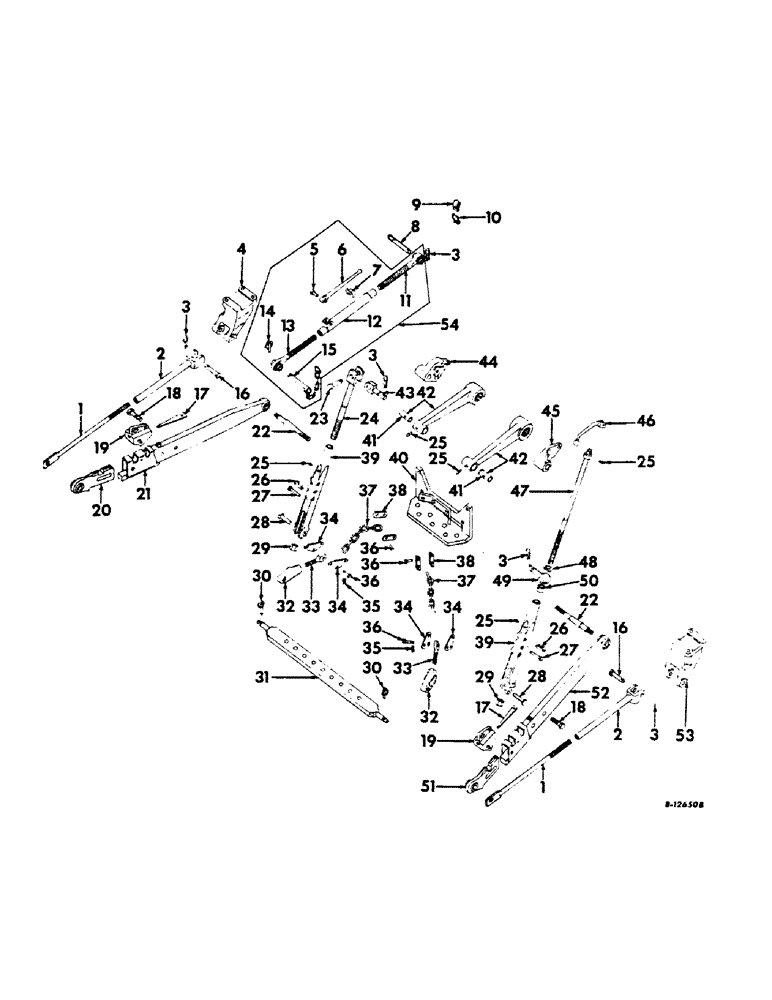

Запчасти Case IH 504 (252) - DRAWBAR AND HITCHES, THREE-POINT HITCH, CATEGORY II Drawbar & Hitches

NSS

NOT SOLD SEPARAT

Service parts for International tractors except hi-clear equipped with three-point hitch, consists of all unmarked parts and those marked unit A

1шт.

NSS

NOT SOLD SEPARAT

Service parts for Farmall tractors and International hi-clear tractors equipped with three-point hitch, consists of all unmarked parts and those marked unit B

1шт.

1

380578R1

ROD

stabilizer end

2шт.

These parts are included in the three-point hitch stabilizer attachment.

1шт.

2

378010R11

TUBE

ASSY, stabilizer

2шт.

These parts are included in the three-point hitch stabilizer attachment.

1шт.

3

520175R1

CLIP

PIN, quick attachable cot.

5шт.

4

382536R1

BRACKET, LH stabilizer

1шт.

These parts are included in the three-point hitch stabilizer attachment.

1шт.

340340R1

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8

SCREW, 1/2-13 x 1-1/2 hex-hd cap

3шт.

5

W4435

PIN

3/8 x 1-3/8 headed, turnbuckle handle

1шт.

107763

COTTER PIN,1/8" x 5/8"

PIN, 1/2 x 5/8 cot.

1шт.

6

375901R1

HANDLE, upper turnbuckle, order handle 395109R1 and clip 392204R1

1шт.

7

376507R1

CLIP

turnbuckle handle, order clip 392204R1 and handle 395109R1

1шт.

8

377998R11

PIN ASSY, upper link bellcrank

1шт.

9

378404R1

FASTENER

CLIP, upper link storage bracket

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8-16 x 7/8 hex-hd cap

1шт.

10

378403R1

ELECTRICAL WIRE

BRACKET, upper link storage

1шт.

11

375899R21

LINK ASSY, RH thread upper

1шт.

365401R1

PIN

1/4 x 1 spirol

1шт.

12

375900R21

LOCK

TURNBUCKLE ASSY, upper link

1шт.

13

382534R11

LINK ASSY, LH thread upper, optional w/386050R11

1шт.

13

386050R11

LINK ASSY, LH thread upper, optional w/382534R11

1шт.

365401R1

PIN

1/4 x 1 spirol

1шт.

14

517758R91

SPLIT PIN/SAFETY PIN

PIN ASSY, implement pin retaining

1шт.

15

380563R91

PIN

ASSY, upper link implement

1шт.

16

378397R1

PIN, SPLIT (COTTER)

PIN, stabilizer pivot

2шт.

These parts are included in the three-point hitch stabilizer attachment.

1шт.

17

380992R1

VALVE SPRING

SPRING, latch

2шт.

179812

GEAR

SCREW, 5/16-18 x 1/2 hex-hd cap

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

18

380547R1

BOLT, restraining chain rear bracket

2шт.

108638

COTTER PIN,3/16" x 1 1/8"

Pin, Split (Cotter), 3/16" x 1 1/8"

2шт.

19

380993R1

LATCH

lower link

2шт.

19955R1

PIN,1/4" x 1/2", Coiled

4шт.

20

380994R92

LINK

ASSY, LH lower rear section

1шт.

19903R1

PIN,1/2" x 1 3/4", Coiled

1шт.

21

382540R92

LINK ASSY, LH lower front section, unit A

1шт.

21

382545R92

LINK ASSY, LH lower front section, unit B

1шт.

22

376503R1

STUD

PIN, lower link pivot

2шт.

19606R1

NUT,5/8"-11, GB

5/8-11 ESNA elastic stop

2шт.

425-1812

SLOTTED NUT,3/4"-10, G5, Thk

3/4-10 slt-thick

2шт.

103409

PIN, SPLIT (COTTER),3/16" x 1 1/2"

2шт.

575813R1

WASHER

25/32 x 1-1/4 x 11 ga

2шт.

23

523113R1

CLEVIS PIN,19.05mm OD x 60.33mm L

PIN, 3/4 x 2-3/8 headed

1шт.

108638

COTTER PIN,3/16" x 1 1/8"

Pin, Split (Cotter), 3/16" x 1 1/8"

1шт.

24

375975R11

SCREW ASSY, LH leveling, 16.62 in. long, order 387078R11 & 387079R11, unit A

1шт.

617937R1

PIN,1/4" x 7/8", Coiled

1шт.

24

387078R11

SCREW

ASSY, LH leveling, 19.71 in. long, unit A

1шт.

24

375976R11

SCREW ASSY, LH leveling, 19.50 in. long, order 387833R11 & 387834R11, unit B

1шт.

24

387833R11

SCREW ASSY, LH leveling, 23.22 in. long, unit B

1шт.

617937R1

PIN,1/4" x 7/8", Coiled

1шт.

25

86504104

LUBE NIPPLE,1/4" x .56" lg, Drive

FITTING, 1/4 drive type str lub

5шт.

26

520174R11

LINCH PIN,7.92mm OD x 88.91mm L

PIN ASSY, quick attachable cot.

2шт.

27

378405R1

PIN

leveling screw nut retaining

2шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

2шт.

28

396994R1

PIN,Hd, 3/4" x 3 3/8", Drilled

leveling screw housing

2шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

PIN, split (Cotter), 1/4" x 1-1/4"

2шт.

29

376502R1

NUT

leveling screw

2шт.

30

385159R91

PIN

ASSY, lower link drawbar

2шт.

31

374150R1

DRAWBAR

cross, part of 380585R91

1шт.

32

377948R1

BRACKET

restraining chain rear

2шт.

33

382531R1

SCREW, chain adjustment

2шт.

34

382124R1

STAY

STRAP, chain shackle rear

4шт.

35

460047R1

CLIP, SPRING

PIN, quick attachable cot.

2шт.

36

378442R1

PIN

chain shackle strap

8шт.

108630

COTTER PIN,1/8" x 7/8"

Pin, Split (Cotter), 1/8" x 7/8"

6шт.

37

382530R1

CHAIN, lateral limiter, 2 for unit A

1шт.

37

382551R1

CHAIN, lateral limiter, 2 for unit B

1шт.

38

378441R1

STRAP

chain shackle front

4шт.

39

380529R1

HOUSING, leveling screw

2шт.

40

383217R91

SUPPORT ASSY, drawbar, unit A

1шт.

40

383216R91

SUPPORT ASSY, drawbar, unit B

1шт.

20548R1

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 8

SCREW, 5/8-11 x 1-3/4 hex-hd cap

4шт.

41

523169R1

BUSHING,25.43mm ID x 30.28mm OD x 57.15mm L

rockshaft arm

2шт.

42

375873R11

ARM ASSY, rockshaft

2шт.

43

376504R1

EYEBOLT

LH lift link

1шт.

Q3480

WASHER

1-1/32 x 1-1/2 x 11 ga

1шт.

44

383725R11

BRACKET ASSY, LH lower link lockout, part of 380585R91

1шт.

359259R1

BOLT,Hex, 5/8" - 11 x 2"

SCREW, 5/8-11 x 2 hex-hd cap, part of 380585R91

2шт.

45

376090R1

BRACKET, RH lower link lockout, part of 380585R91

1шт.

359259R1

BOLT,Hex, 5/8" - 11 x 2"

SCREW, 5/8-11 x 2 hex-hd cap, part of 380585R91

2шт.

46

523861R2

HANDLE

HANDLE, leveling screw

1шт.

617939R1

PIN,5/16" x 1 1/2", Coiled

5/16" x 1-1/2", coiled

1шт.

47

375973R11

SCREW,19.72" L

ASSY, RH leveling, 19.72 in. long, order 387078R11 & 387079R11, unit A

1шт.

47

387079R11

SPINDLE

SCREW ASSY, RH leveling, 23.71 in. long, unit A

1шт.

617937R1

PIN,1/4" x 7/8", Coiled

1шт.

47

375974R11

SCREW,22.59" L

ASSY, RH leveling, 22.59 in. long, order 387833R11 & 387834R11, unit B

1шт.

47

387834R11

SCREW

ASSY, RH leveling, 26.33 in. long, unit B

1шт.

617937R1

PIN,1/4" x 7/8", Coiled

1шт.

48

522850R1

WASHER

WASHER, leveling screw pivot

1шт.

49

375880R1

BOLT,Eye, 2.531"

EYEBOLT, RH leveling screw pivot

1шт.

Q3480

WASHER

1-1/32 x 1-1/2 x 11 ga

1шт.

50

375881R1

BUSHING

COLLAR, lock

1шт.

19534R1

PIN,1/4" x 1 1/2", Coiled

1/4" x 1-1/2", coiled

1шт.

51

380995R92

LINK

ASSY, RH lower rear section

1шт.

19903R1

PIN,1/2" x 1 3/4", Coiled

1шт.

52

382541R92

LINK ASSY, RH lower front section, unit A

1шт.

52

382546R92

LINK ASSY, RH lower front section, unit B

1шт.

53

382537R1

BRACKET, RH stabilizer

1шт.

These parts are included in the three-point hitch stabilizer attachment.

1шт.

340340R1

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8

SCREW, 1/2-13 x 1-1/2 hex-hd cap

3шт.

54

382532R93

LINK ASSY, upper

1шт.

380579R91

BUSHING

PARTS ACCESSORY, bushing & pin adapter, for use w/category I implements when mounting on category II hitch, consists of

1шт.

380581R1

BUSHING

upper link category #1 short

1шт.

380582R1

BUSHING

upper link category #1 long

1шт.

380583R1

BUSHING

lower link category #1 short

2шт.

380584R1

BUSHING

lower link category #1 long

2шт.

380580R91

PIN

ASSY, upper link implement

1шт.

11484R

BUSHING

SPACER, lower link long bushing

2шт.

380585R91

PARTS ACCESSORY, three-point hitch crossbar, consists of (1) bracket 383725R11, (1) bracket 376090R1, (1) drawbar 374150R1, (4) screw 359259R1

1шт.

NSS

NOT SOLD SEPARAT

ATTACHMENT, three-point hitch stabilizer, 382550R91, composed of (1) bracket 382536R1, (1) bracket 382537R1, (2) pin 378397R1, (2) pin 520175R1, (2) rod 380578R1, (6) screw 340340R1, (2) tube 378010R11

1шт.
