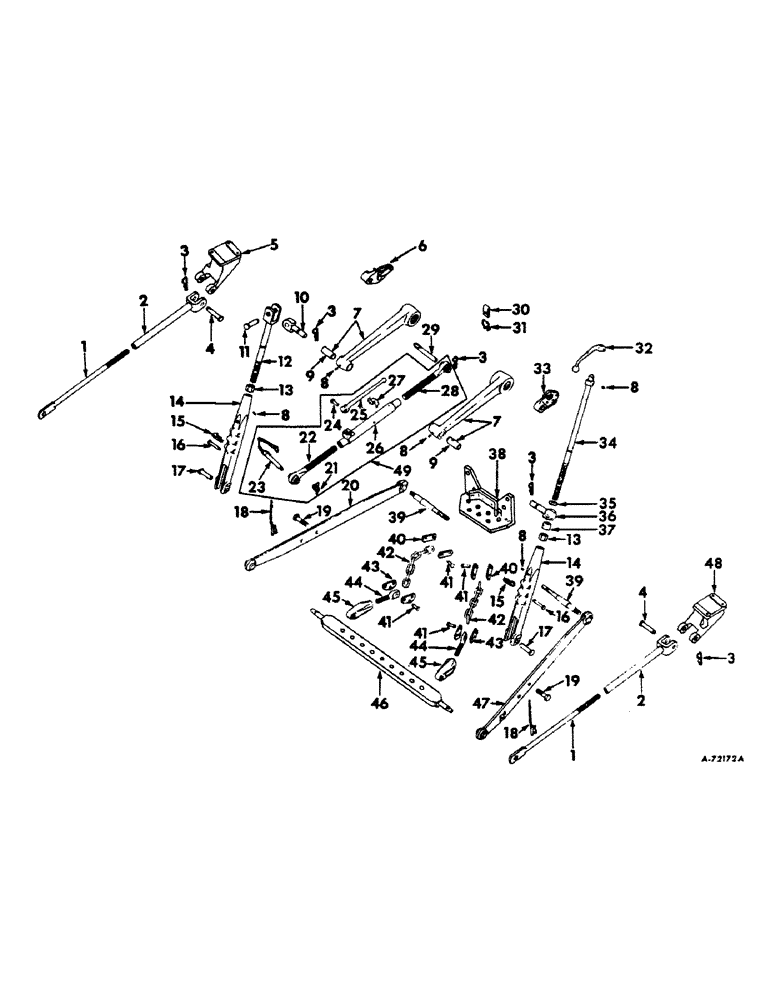

Запчасти Case IH 504 (248) - DRAWBAR AND HITCHES, THREE-POINT HITCH, CATEGORY I Drawbar & Hitches

NSS

NOT SOLD SEPARAT

Service parts for International tractors except hi-clear equipped with three-point hitch, consists of all unmarked parts and those marked unit A

1шт.

NSS

NOT SOLD SEPARAT

Service parts for Farmall tractors and International hi-clear tractors equipped with three-point hitch, consists of all unmarked parts and those marked unit B

1шт.

1

380578R1

ROD

stabilizer

2шт.

These parts are included in the three-point hitch stabilizer attachment.

1шт.

2

378010R11

TUBE

ASSY, stabilizer

1шт.

These parts are included in the three-point hitch stabilizer attachment.

1шт.

3

520175R1

CLIP

PIN, quick attachable cot.

5шт.

4

378397R1

PIN, SPLIT (COTTER)

PIN, stabilizer pivot

2шт.

These parts are included in the three-point hitch stabilizer attachment.

1шт.

5

382536R1

BRACKET, LH stabilizer

1шт.

These parts are included in the three-point hitch stabilizer attachment.

1шт.

340340R1

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8

SCREW, 1/2-13 x 1-1/2 hex-hd cap

3шт.

6

383725R11

BRACKET ASSY, LH lower link lock-out, part of 376096R91

1шт.

359259R1

BOLT,Hex, 5/8" - 11 x 2"

SCREW, 5/8-11 x 2 hex-hd cap, part of 376096R91

2шт.

7

375873R11

ARM ASSY, rockshaft

2шт.

8

86504104

LUBE NIPPLE,1/4" x .56" lg, Drive

FITTING, 1/4 drive type str lub

5шт.

9

523169R1

BUSHING,25.43mm ID x 30.28mm OD x 57.15mm L

rockshaft arm

2шт.

10

376504R1

EYEBOLT

LH lift link

1шт.

Q3480

WASHER

1-1/32 x 1-1/2 x 11 ga

1шт.

11

523113R1

CLEVIS PIN,19.05mm OD x 60.33mm L

PIN, 3/4 x 2-3/8 headed

1шт.

108638

COTTER PIN,3/16" x 1 1/8"

Pin, Split (Cotter), 3/16" x 1 1/8"

1шт.

12

375975R11

SCREW ASSY, LH leveling, 16.62 in long, order 387078R11 & 387079R11, unit A

1шт.

12

387078R11

SCREW

ASSY, LH leveling, 19.71 in. long, unit A

1шт.

12

375976R11

SCREW ASSY, LH leveling, 19.50 in. long, unit B, order 387833R11 & 387834R11

1шт.

617937R1

PIN,1/4" x 7/8", Coiled

1шт.

13

376502R1

NUT

leveling screw

2шт.

14

376528R2

HOUSING, leveling screw

2шт.

15

520174R11

LINCH PIN,7.92mm OD x 88.91mm L

PIN ASSY, quick attachable cot.

2шт.

16

378405R1

PIN

leveling screw nut retaining

2шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

2шт.

17

396994R1

PIN,Hd, 3/4" x 3 3/8", Drilled

leveling screw housing

2шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

PIN, split (Cotter), 1/4" x 1-1/4"

2шт.

18

375893R91

AXLE PIN

PIN ASSY, lower link quick attachable

2шт.

19

378996R1

BOLT, restraining chain rear bracket

2шт.

108638

COTTER PIN,3/16" x 1 1/8"

Pin, Split (Cotter), 3/16" x 1 1/8"

2шт.

20

376839R91

LINK ASSY, LH lower, unit A

1шт.

20

376837R91

LINK ASSY, LH lower, unit B

1шт.

21

517758R91

SPLIT PIN/SAFETY PIN

PIN ASSY, implement pin retaining

1шт.

22

375898R21

LINK ASSY, LH thread upper, optional with 384546R91

1шт.

22

384546R91

LINK ASSY, LH thread upper, optional with 375898R21

1шт.

365401R1

PIN

1/4 x 1 spirol

1шт.

23

376506R91

PIN ASSY, upper link implement

1шт.

24

W4435

PIN

3/8 x 1-3/8 headed, turnbuckle handle

1шт.

107763

COTTER PIN,1/8" x 5/8"

PIN, SPLIT (COTTER), 1/8" x 5/8"

1шт.

25

375901R1

HANDLE, upper turnbuckle, order handle 395109R1 & clip 392204R1

1шт.

26

375900R21

LOCK

TURNBUCKLE ASSY, upper link

1шт.

27

376507R1

CLIP

turnbuckle handle, order clip 392204R1 & handle 395109R1

1шт.

28

375899R21

LINK ASSY, RH thread upper, optional with 384547R91

1шт.

28

384547R91

LINK ASSY, RH thread upper, optional with 375899R21

1шт.

365401R1

PIN

1/4 x 1 spiral

1шт.

29

377998R11

PIN ASSY, upper link bellcrank, used w/bellcrank 376974R1

1шт.

29

383436R11

PIN

ASSY, upper link bellcrank, used w/bellcrank 383434R1

1шт.

30

378404R1

FASTENER

CLIP, upper link storage bracket

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8-16 x 7/8 hex-hd cap

1шт.

31

378403R1

ELECTRICAL WIRE

BRACKET, upper link storage

1шт.

32

523861R2

HANDLE

HANDLE, leveling screw

1шт.

617939R1

PIN,5/16" x 1 1/2", Coiled

5/16" x 1-1/2", coiled

1шт.

33

376090R1

BRACKET, RH lower link lockout, part of 376096R91

1шт.

359259R1

BOLT,Hex, 5/8" - 11 x 2"

SCREW, 5/8-11 x 2 hex-hd cap

2шт.

34

375973R11

SCREW,19.72" L

ASSY, RH leveling, 19.72 in. long, order 387078R11 & 387079R11, unit A

1шт.

34

387079R11

SPINDLE

SCREW ASSY, RH leveling, 23.71 in. long, unit A

1шт.

34

375974R11

SCREW,22.59" L

ASSY, RH leveling, 22.59 in. long, order 387833R11 & 387834R11, unit B

1шт.

34

387834R11

SCREW

ASSY, RH leveling, 26.33 in. long, unit B

1шт.

617937R1

PIN,1/4" x 7/8", Coiled

1шт.

35

522850R1

WASHER

WASHER, leveling screw pivot

1шт.

36

375880R1

BOLT,Eye, 2.531"

EYEBOLT, RH leveling screw pivot

1шт.

Q3480

WASHER

1-1/32 x 1-1/2 x 11 ga

1шт.

37

375881R1

BUSHING

COLLAR, lock

1шт.

19534R1

PIN,1/4" x 1 1/2", Coiled

1/4" x 1-1/2", coiled

1шт.

38

383217R91

SUPPORT ASSY, drawbar, unit A

1шт.

38

383216R91

SUPPORT ASSY, drawbar, unit B

1шт.

20548R1

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 8

SCREW, 5/8-11 x 1-3/4 hex-hd cap

4шт.

39

376503R1

STUD

PIN, lower link pivot

2шт.

19606R1

NUT,5/8"-11, GB

5/8-11 ESNA elastic stop

2шт.

425-1812

SLOTTED NUT,3/4"-10, G5, Thk

3/4-10 slt-thick

2шт.

103409

PIN, SPLIT (COTTER),3/16" x 1 1/2"

2шт.

575813R1

WASHER

25/32 x 1-1/4 x 11 ga

2шт.

40

378441R1

STRAP

chain shackle front

4шт.

108630

COTTER PIN,1/8" x 7/8"

Pin, Split (Cotter), 1/8" x 7/8"

6шт.

460047R1

CLIP, SPRING

PIN, quick attachable cot.

2шт.

41

378442R1

PIN

chain shackle strap

8шт.

42

376598R1

CHAIN, lateral limiter, 2 for unit A

1шт.

42

375912R1

CHAIN, lateral limiter, 2 for unit B

1шт.

43

382124R1

STAY

STRAP, chain shackle rear

4шт.

44

377949R1

ADJUSTMENT SCREW,3/4" - 10 x 4.18" Overall L

SCREW, chain adjustment

2шт.

45

377948R1

BRACKET

restraining chain rear

2шт.

46

370799R2

DRAWBAR, cross, part of 376096R91

1шт.

47

376840R91

LINK ASSY, RH lower, unit A

1шт.

47

376838R91

LINK ASSY, RH lower, unit B

1шт.

48

382537R1

BRACKET, RH stabilizer

1шт.

These parts are included in the three-point hitch stabilizer attachment.

1шт.

340340R1

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8

SCREW, 1/2-13 x 1-1/2 hex-hd cap

3шт.

49

375905R93

LINK ASSY, upper

1шт.

376096R91

PARTS ACCESSORY, three-point hitch cross drawbar, consists of (1) bracket 383725R11, (1) bracket 376090R1, (1) drawbar 370799R2, (4) screw 359259R1

1шт.

NSS

NOT SOLD SEPARAT

ATTACHMENT, three-point hitch stabilizer, 382550R91, composed of (1) bracket 382536R1, (1) bracket 382537R1, (2) pin 378397R1, (2) pin 520175R1, (2) rod 380578R1, (6) screw 340340R1, (2) tube 378010R11

1шт.
