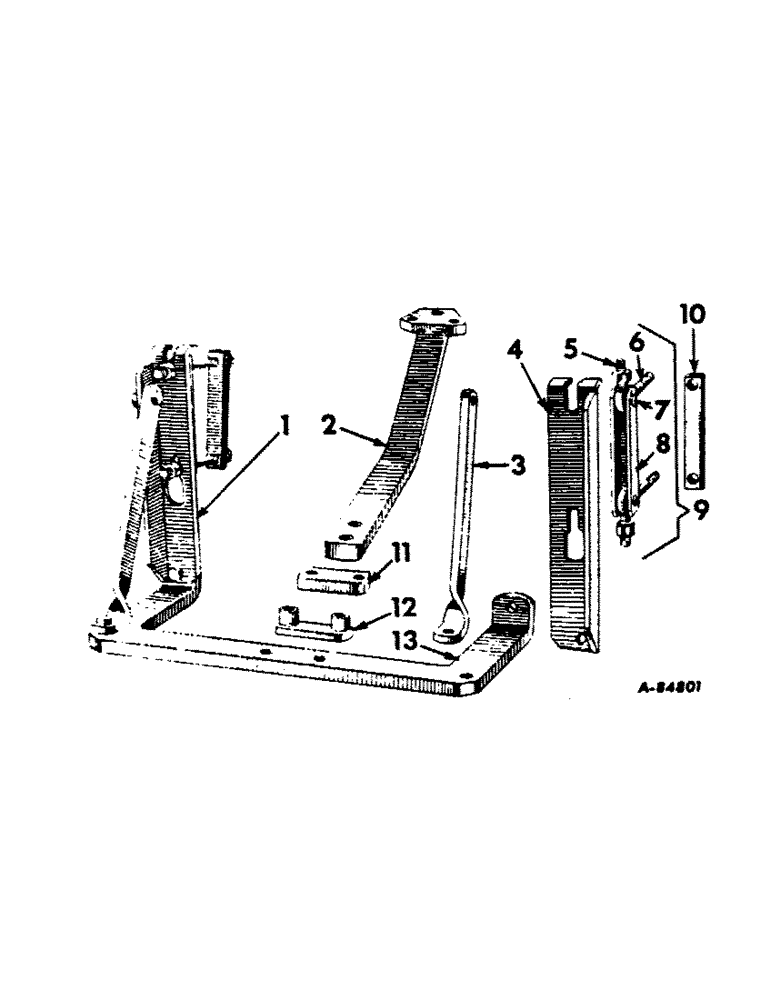

Запчасти Case IH 504 (244) - DRAWBAR AND HITCHES, QUICK ATTACHABLE HIGH HITCH HEAVY DUTY DRAWBAR, FARMALL HI-CLEAR TRACTORS Drawbar & Hitches

360990R91

PARTS ACCESSORY, quick attachable high hitch heavy duty drawbar

1шт.

1

353276R1

ANGLE, drawbar LH

1шт.

2

390991R11

TONGUE ASSY, drawbar

1шт.

19635R1

BOLT

SCREW, 3/4-10 x 2-1/8 hex-hd cap

2шт.

19636R1

SCREW, 3/4-10 x 3-3/8 hex-hd cap

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

3шт.

3

353275R1

BRACE, drawbar

2шт.

425-1012

NUT,3/4"-10, G5

3/4-10 hex

4шт.

271610

SCREW, 3/4-10 x 1-7/8 hex-hd cap

2шт.

271613

SCREW,Hex, 3/4" - 10 x 2 1/2", Gr 5

3/4-10 x 2-1/2 hex-hd cap

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

4

353277R1

ANGLE, drawbar RH

1шт.

5

353272R21

BOLT,W/Nut & Washer, 3/4" - 16 x 3 5/16"

EYEBOLT ASSY, drawbar attaching channel

4шт.

357790R1

NUT

drawbar eyebolt

4шт.

Q1552

WASHER

25/32 x 1-1/4 x 10 ga

4шт.

6

43685D

BOLT

drawbar attaching channel

4шт.

218197

NUT,3/4"-16, G5

3/4-16 hex

4шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

7

43690D

PIN

drawbar attaching channel

4шт.

8

PO26267

CHANNEL, drawbar attaching

2шт.

9

353273R92

CHANNEL ASSY, drawbar attaching, composed of ref nos. 5 thru 8 and attaching hardware

2шт.

10

PO26224

CLAMP, drawbar attaching

2шт.

11

353274R1

STRAP, drawbar tongue

1шт.

220081

NUT

3/4-10 hex

2шт.

413-1276

BOLT,Hex, 3/4" - 10 x 4-3/4", Gr 5

SCREW, 3/4-10 x 4-3/4 hex-hd cap

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

12

353280R11

SHIM ASSY, drawbar tongue

1шт.

13

353278R11

DRAWBAR ASSEMBLY

1шт.

425-1012

NUT,3/4"-10, G5

3/4-10 hex

2шт.

271612

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 5

SCREW, 3/4-10 x 2-1/4 hex-hd cap

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.
