Запчасти Case IH 504 (066) - COOLING SYSTEM, FAN, THERMOSTAT AND WATER PUMP, CARBURETED ENGINE TRACTORS COOLING SYSTEM

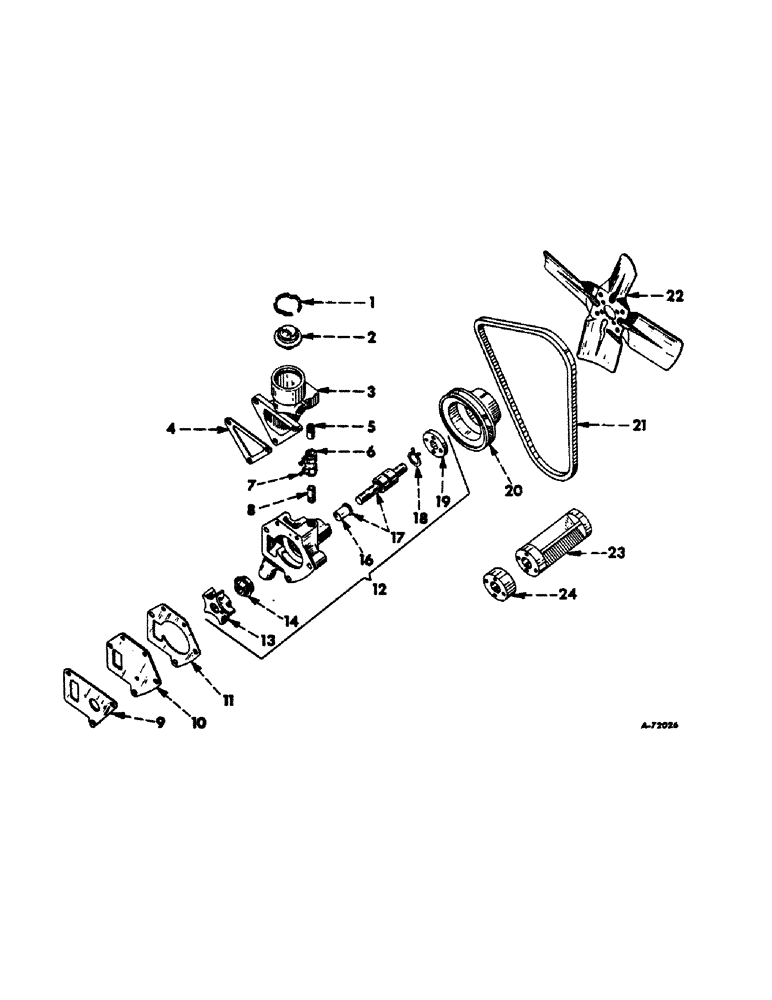

Схема запчастей Case IH 504 - (066) - COOLING SYSTEM, FAN, THERMOSTAT AND WATER PUMP, CARBURETED ENGINE TRACTORS COOLING SYSTEM
16
23
17
20
3
8
6
18
9
13
22
2
4
24
1
11
7
12
5
21
10
19
14

Артикул

Название

Примечание

Количество

1

377180R1

RING

thermostat retainer

1шт.

2

377156R91

THERMOSTAT

170 deg opening

1шт.

3

375733R1

ELBOW, water outlet

1шт.

NLS

NO LONGER SERVICED

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

9617020

PLUG,1/4" - 18 x 0.48"

1/4 sq-hd pipe, LP gas

1шт.

4

43294D

GASKET

water outlet elbow, gasoline

1шт.

5

367680R1

FITTING

PIPE, upper by-pass, gasoline

1шт.

6

367681R1

HOSE

by-pass valve, gasoline

1шт.

7

375061R91

CLAMP

by-pass pipe hose, gasoline

2шт.

8

368556R1

FITTING

PIPE, lower by-pass, gasoline

1шт.

9

375745R1

GASKET

water pump plate

1шт.

Part of Water Pump Service Package, P/N 391028R91.

1шт.

10

375744R1

SUPPORT

PLATE, water pump

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

11

375743R1

GASKET

water pump body

1шт.

Part of Water Pump Service Package, P/N 391028R91.

1шт.

12

375742R92

PUMP

ASSY, water

1шт.

179842

SPACER

3/8-16 x 1-3/8 hex-hd cap

1шт.

179847

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

186278

BOLT

SCREW, 3/8-16 x 2-5/8 hex-hd cap

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

444574

PLUG,Sq Hd, 1/4"-18 NPTF

1/4 pipe, LP gas

1шт.

13

367689R1

IMPELLER

water pump

1шт.

Part of Water Pump Service Package, P/N 391028R91.

1шт.

14

73296R93

SEAL

ASSY, water pump

1шт.

Part of Water Pump Service Package, P/N 391028R91.

1шт.

15

NSS

NOT SOLD SEPARAT

(Not used in this application)

1шт.

16

71351R1

SLINGER

water pump

1шт.

17

ST644

SHAFT

BEARING W/SHAFT, water pump

1шт.

Part of Water Pump Service Package, P/N 391028R91.

1шт.

18

102069H

RING

front snap

1шт.

Part of Water Pump Service Package, P/N 391028R91.

1шт.

19

368501R2

HUB CAP

HUB, pulley

1шт.

Not a part of 375742R92. It was a part of 375742R91.

1шт.

Part of Water Pump Service Package, P/N 391028R91.

1шт.

20

367688R1

PULLEY

water pump

1шт.

21

151529R1

BELT

fan and generator

1шт.

22

370700R91

BLADE

ASSY, fan, 6 blade, Farmall tractors, Serial Range: 501-4241

1шт.

22

86897R91

FAN

BLADE ASSY, fan, 4 blade, Farmall tractors 4242 up

1шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

4шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

22

86897R91

FAN

BLADE ASSY, 4 blade, International tractors

1шт.

181319

BOLT,Hex, 1/4" - 28 x 1 1/2", Gr 5

4шт.

23

377055R1

EXTENSION, fan hub, Farmall series

1шт.

181315

BOLT,Hex, 1/4" - 28 x 1", Gr 5

SCREW, 1/4-20 x 1 hex-hd cap

4шт.

24

369289R1

EXTENSION, fan hub, International series

1шт.

391028R91

SERVICE KIT

PACKAGE, water pump service, consists of ref nos. 9, 11, 13, 14, 17, 18 & 19

1шт.

Выбрано товаров: 49
