Запчасти Case IH 504 (209) - BRAKES, BRAKES, BRAKE LOCK AND CONNECTIONS, FARMALL TRACTORS (5.1) - BRAKES

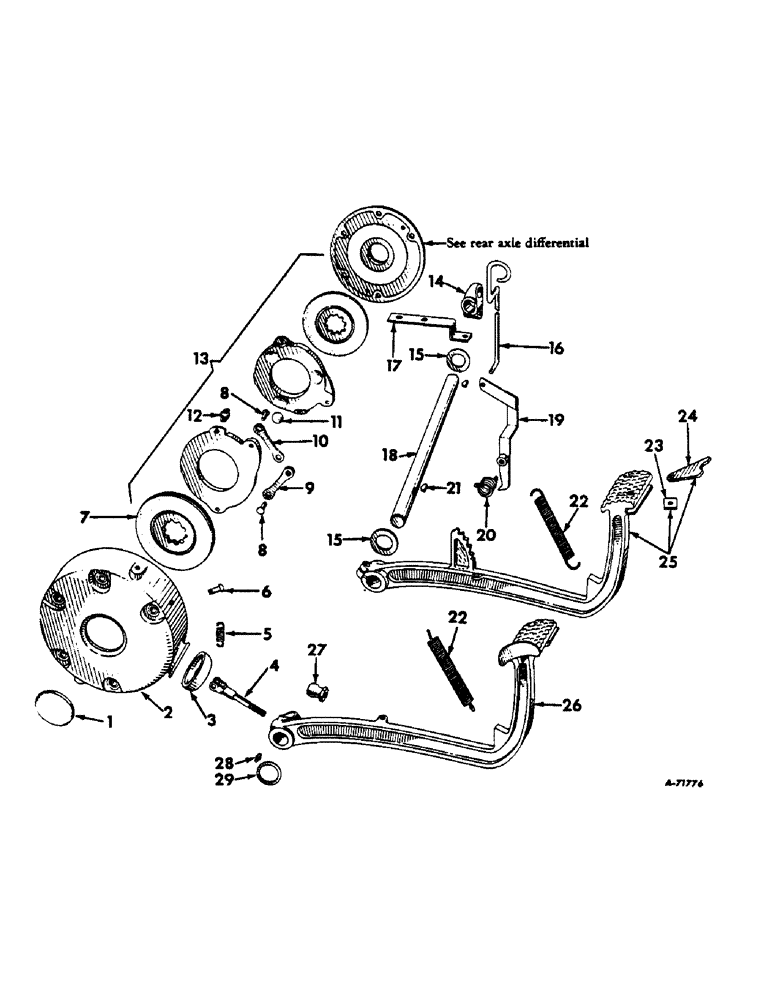

Схема запчастей Case IH 504 - (209) - BRAKES, BRAKES, BRAKE LOCK AND CONNECTIONS, FARMALL TRACTORS (5.1) - BRAKES
16
10
3
15
20
22
14
19
6
2
11
27
7
1
17
29
22
5
9
28
12
18
4
8
24
21
13
23
15
25
26
8

Артикул

Название

Примечание

Количество

1

172603

PLUG,Exp, 2 7/8"

2-7/8 expansion, brake housing

2шт.

2

368296R3

CASE

HOUSING, brake

2шт.

179872

BOLT,Hex, 7/16" - 14 x 3 1/2", Gr 5

SCREW, 7/16-14 x 3-1/2 hex-hd cap

10шт.

3

368299R1

INSULATOR

BOOT, enclosure

2шт.

4

368297R1

ROD ASSY.

ROD, brake operating

2шт.

103026

NUT,3/8"-24, G5

2шт.

114786

PIN

7/16 x 1-5/16, rod end

2шт.

280250

COTTER PIN,3/32" OD x 3/4" L

PIN, SPLIT (COTTER), 3/32" x 3/4"

2шт.

5

69235D

SPRING

brake positioning, tractors 501 to 7563, also order anchor 375584R2

1шт.

6

375584R2

PIN

ANCHOR, brake positioning spring

2шт.

7

368292R92

DISC

W/BONDED FACING, brake

4шт.

8

354642R1

STUD

actuating disc

4шт.

114493

JAM NUT,Jam, 5/16"-24, G5

4шт.

9

354640R91

LINK

actuating yoke

2шт.

10

354641R1

LINK

actuating plaing

2шт.

11

16028R1

BALL

7/8 cr-stl

8шт.

12

354627R1

SPRING

extension

4шт.

13

368293R91

PLATE

DISC ASSY, actuating, composed of (4) ball 16028R1, (2) disc (NSS), (1) link 354640R91, (1) link 354641R1, (2) nut 114493, (2) spring 354627R1, (2) stud 354642R1

2шт.

14

370874R1

LEVER

brake shaft

1шт.

NLS

NO LONGER SERVICED

7/16-14 hex

1шт.

191309

BOLT,Hex, 7/16" - 14 x 2 1/8"

SCREW, 7/16-14 x 2-1/8 hex-hd cap

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

15

48983D

THRUST WASHER

brake pedal shaft thrust

2шт.

16

378152R1

ROD, brake lock operating

1шт.

107761

COTTER PIN,1/16" x 5/8"

Pin, Split (Cotter), 1/16" x 5/8"

1шт.

16558R1

WASHER

17/64 x 5/8 x 18 ga

1шт.

17

378150R1

BRACKET, brake lock operating rod

1шт.

179867

BOLT,Hex, 7/16" - 14 x 2 1/4", Gr 5

SCREW, 7/16-14 x 2-1/4 hex-hd cap

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

496-21047

WASHER

15/32 x 59/64 x 16 ga

1шт.

18

370873R1

SHAFT, brake pedal

1шт.

103409

PIN, SPLIT (COTTER),3/16" x 1 1/2"

1шт.

19

377782R11

LEVER ASSY, brake lock

1шт.

26479D

PIN

5/16 x 1-3/16 rod end

1шт.

432-68

COTTER PIN,3/32" x 1/2"

Pin, Split (Cotter), 3/32" x 1/2"

1шт.

20

378151R1

SPRING, brake lock lever

1шт.

21

124552

SCREW

3/16 x 1 Woodruff 13

2шт.

22

368971R1

SPRING

brake pedal return

2шт.

23

51293D

SPRING

brake pedal lock plate tension

1шт.

24

43751DB

LATCH, PEDALS

PLATE, brake pedal lock

1шт.

104087

RIVET,But Hd, 1/4" x 1 1/4"

1/4 x 1-1/4 rd-hd

1шт.

25

377780R11

PEDAL ASSY, LH brake

1шт.

NLS

NO LONGER SERVICED

7/16-14 hex

1шт.

179868

BOLT,Hex, 7/16" - 14 x 2 1/2", Gr 5

SCREW, 7/16-14 x 2-1/2 hex-hd cap

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

26

377781R1

PEDAL, RH brake

1шт.

27

368298R1

BALL

brake operating rod

2шт.

28

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING, 3/16 drive type str lub

1шт.

29

40435D

WASHER, brake pedal shaft

1шт.
