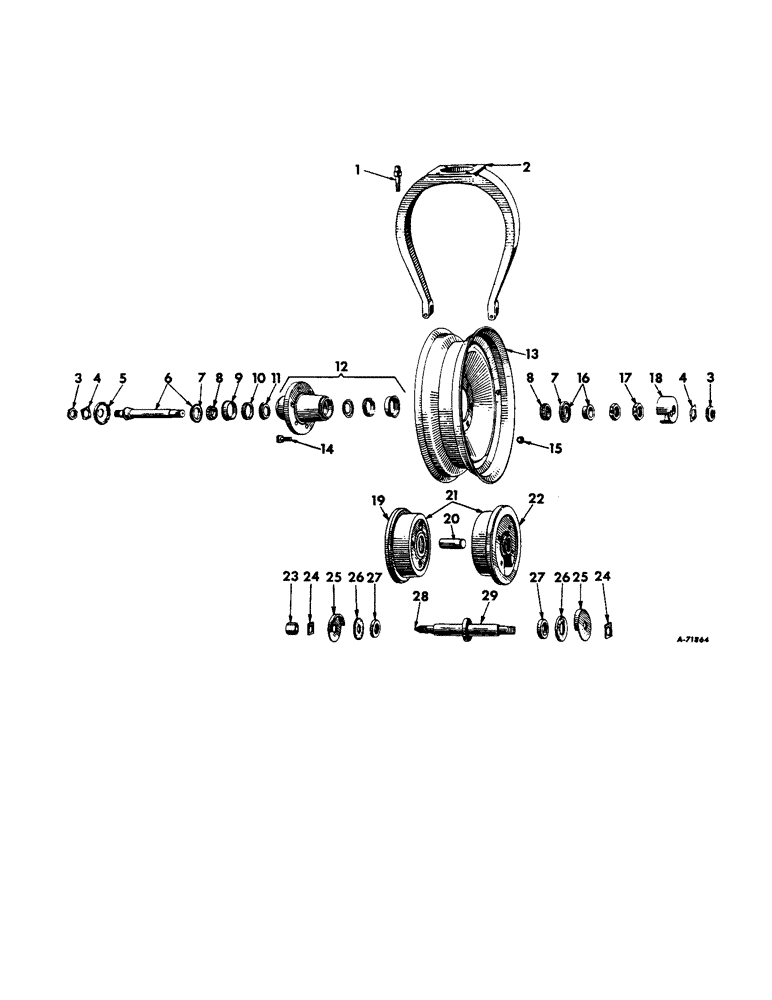

Запчасти Case IH 504 (200) - WHEELS, SINGLE FRONT WHEEL, FARMALL TRACTORS EXCEPT HI-CLEAR (11) - WHEELS

57894DA

PARTS ACCESSORY, single front wheel, for 7.50 x 10 tire, consists of all unmarked parts and those marked unit A

1шт.

381973R91

PARTS ACCESSORY, single front wheel, for 7.50 x 16 tire, consists of all unmarked parts and those marked unit B

1шт.

395931R91

PARTS ACCESSORY, single front wheel, for 7.50 x 15 tire, consists of all unmarked parts and those marked unit C

1шт.

1

NSS

NOT SOLD SEPARAT

(Not used in this application)

1шт.

2

57895D

FORK, front wheel, unit A

1шт.

102635

NUT,3/8"-16, G5

2шт.

451018

NUT

1/2-20 lock

4шт.

179849

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

2

381974R1

FORK, front wheel, units B & C

1шт.

102637

NUT,1/2"-13, G5

2шт.

179895

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 5

SCREW, 1/2-13 x 3-1/2 hex-hd cap

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

3

425-1520

JAM NUT,Jam, 1 1/4"-12, G5

1-1/4-12 hex, jam, 2 for units B & C

1шт.

4

38916D

LOCK WASHER

front axle nut lock, 2 for units B & C

1шт.

5

351419R11

PROTECTOR

SHIELD ASSY, front wheel hub, short, units B & C

1шт.

6

351417R11

AXLE ASSY, front, units B & C

1шт.

7

48539DA

PACKING RING

SEAL, front axle oil, 2 for units B & C

1шт.

8

ST2049

TAPERED BEARING,1.3755" ID x 2.718" OD x 0.7953"

BEARING, front wheel cone, 2 for units B & C

1шт.

9

48548D

WASHER

front wheel oil seal, 2 for units B & C

1шт.

10

ST974

TAPERED BEARING,1.313" ID x 2.718" OD x 0.7953"

BEARING, front wheel cup, units B & C

2шт.

11

60288DA

BEARING CAP,1.4375" ID x 2.7125" OD x 0.40625"

front wheel bearing grease, 2 for units B & C

1шт.

12

351398R21

HUB ASSY, front wheel, units B & C, composed of (2) cup ST974 (1) hub 351398R2 (NSS) (2) retainer 48548D (2) retainer 60288DA

1шт.

13

354195R92

WHEEL

ASSY, front, for 7.50 x 16 tire, unit B

1шт.

13

395924R91

WHEEL ASSY, front, for 7.50 x 15 tire, unit C

1шт.

14

358134R1

BOLT (MACHINE),9/16" - 18 x 1 3/4"

BOLT, front wheel mounting, 6 for units B & C

1шт.

15

351793R1

WHEEL NUT

NUT, front wheel mounting, 6 for units B & C

1шт.

16

351416R11

SPACER ASSY, front wheel bearing, units B & C

1шт.

17

351418R1

BEARING LOCK NUT

front wheel bearing adjusting, 2 for units B & C

1шт.

18

351420R11

PROTECTOR

SHIELD ASSY, front wheel hub, long, units B & C

1шт.

19

5630DAX

WHEEL W/BUSHING, 359340R1 and oil seal 364469R91 front male half, for 7.50 x 10 tire, unit A

1шт.

102639

NUT,5/8"-11, G5

4шт.

17184R1

SCREW,Hex, 5/8" - 11 x 7"

5/8-11 x 7 hex-hd cap

4шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

20

359340R1

BUSHING

front wheel, 2 for unit A

1шт.

21

40833DA

WHEEL ASSY, front, for 7.50 x 10 tire, unit A, composed of (4) nut 102639, (4) screw 17184R1, (4) washer 103325, (1) wheel 5630DAX, (1) wheel 5631DAX

1шт.

22

5631DAX

WHEEL W/BUSHING, 359340R1 and oil seal 364469R91 front female half, for 7.50 x 10 tire, unit A

1шт.

23

23742D

NUT, front axle, unit A

1шт.

24

23743D

LOCK WASHER

front axle nut lock, 2 for unit A

1шт.

25

23762DX

SHIELD

ASSY, front wheel hub, 2 for unit A

1шт.

26

23760D

SEALING WASHER

WASHER, front wheel felt, 2 for unit A

1шт.

27

389445R91

OIL SEAL

SEAL, front wheel oil, 2 for unit A

1шт.

28

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , Unit A 1/8"-27 x .66 lg

1шт.

29

23740DA

SHAFT

AXLE, front, unit A

1шт.

218200

NUT,7/8"-14, G5

7/8-14 hex

1шт.
