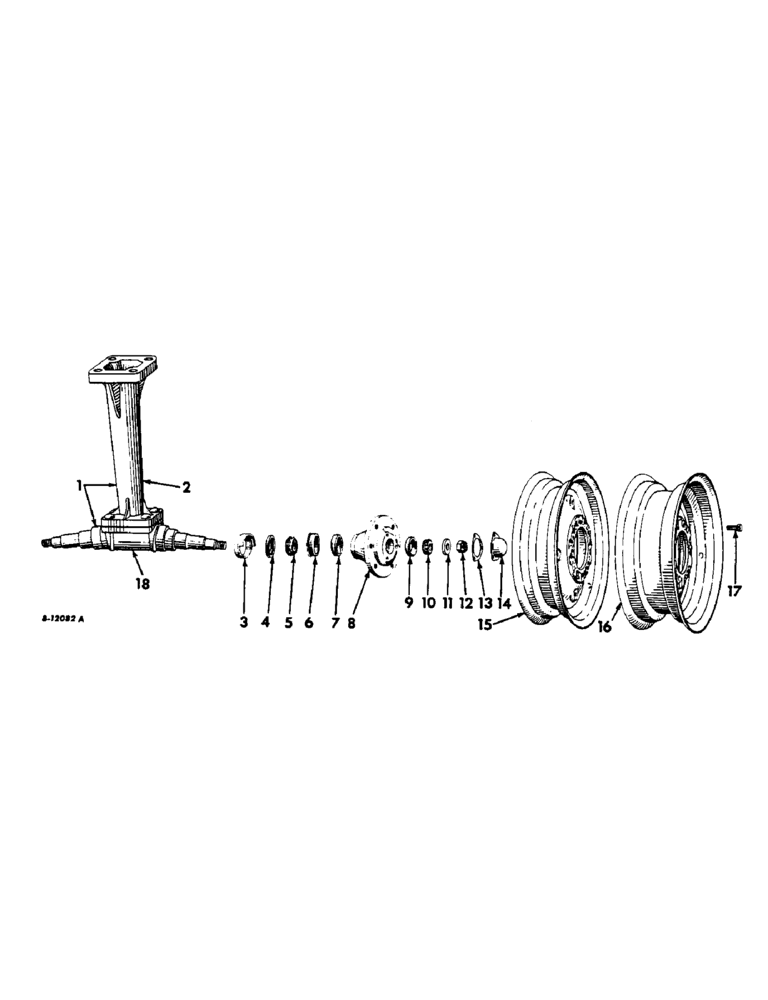

Запчасти Case IH 504 (197) - WHEELS, FRONT WHEELS, AXLE AND BOLSTER, FARMALL SERIES (11) - WHEELS

1

380593R11

AXLE AND BOLSTER ASSY, front, composed of (1) axle 370288R1 (NSS), (1) bolster 380593R1 (NSS), (2) deflector 43462D, (4) rivet 357126R1

1шт.

2

380660R91

BOLSTER W/FOUR RIVETS, 357126R1, front wheel

1шт.

3

43462D

DEFLECTOR

SHIELD, front wheel dust

2шт.

4

368629R91

SEAL

front wheel oil

2шт.

5

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

BEARING, front wheel inner cone

2шт.

6

49117D

CUP ASSY.

RING, front wheel oil seal wear

2шт.

7

651817R1

BEARING CUP

BEARING, front wheel inner cup

2шт.

7

651817R1GV

BEARING CUP

Value, Bearing Cup

2шт.

8

370289R11

HUB

ASSY, front wheel, composed of (1) cup 651814R1, (1) cup 651817R1, (1) hub 370289R1 (NSS), (1) ring 49117D

2шт.

9

651814R1

BEARING CUP

BEARING, front wheel outer cup

2шт.

10

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

BEARING, front wheel outer cone

2шт.

10

651815R91GV

BEARING CONE

Value, Cone Beaing

2шт.

11

369936R1

WASHER

front wheel outer bearing retainer

2шт.

12

102649

SLOTTED NUT,5/8"-18, G5

NUT, , Front wheel outer bearing retainer 5/8"-18, G5

2шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

2шт.

13

49116D

GASKET,0.79mm Thk

front wheel hub cap

2шт.

14

49115D

CYLINDER END CAP

CAP, front wheel hub

2шт.

21533R1

BOLT

SCREW, 5/16-18 x 5/8 C-Z hex-hd cap

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

15

370604R91

WHEEL ASSY.

WHEEL ASSY, front, disc type W/300D-15 rim for 5.00 x 15 tire

2шт.

16

380065R91

WHEEL

ASSY, front, disc type W/4.25KA-16 rim for 5.50 x 16 or 6.00 x 16 or 6.50 x 16 tire

2шт.

16

370778R91

WHEEL ASSY, front, disc type 4.50E-20DC rim for 6.00 x 20 tire, hi-clear tractors

2шт.

17

51485D

BOLT,9/16" - 18 x 1 7/32"

front wheel mounting

12шт.

17

382966R1

BOLT (SPREADER),Hex Csk, 9/16" - 18 x 1.47"

BOLT, front wheel mounting, hi-clear tractors

12шт.

18

370288R11

AXLE

W/FOUR RIVETS, 357126R1, front

1шт.

357126R1

RIVET, front axle and bolster

4шт.

375128R91

KIT

PACKAGE, front wheel bearing overhaul, consists of (1) cone 651851R91, (1) cone 651818R91, (1) cup 651814R1, (1) cup 651817R1, (1) gasket 49116D, (1) ring 49117D, (1) seal 368629R91

1шт.
