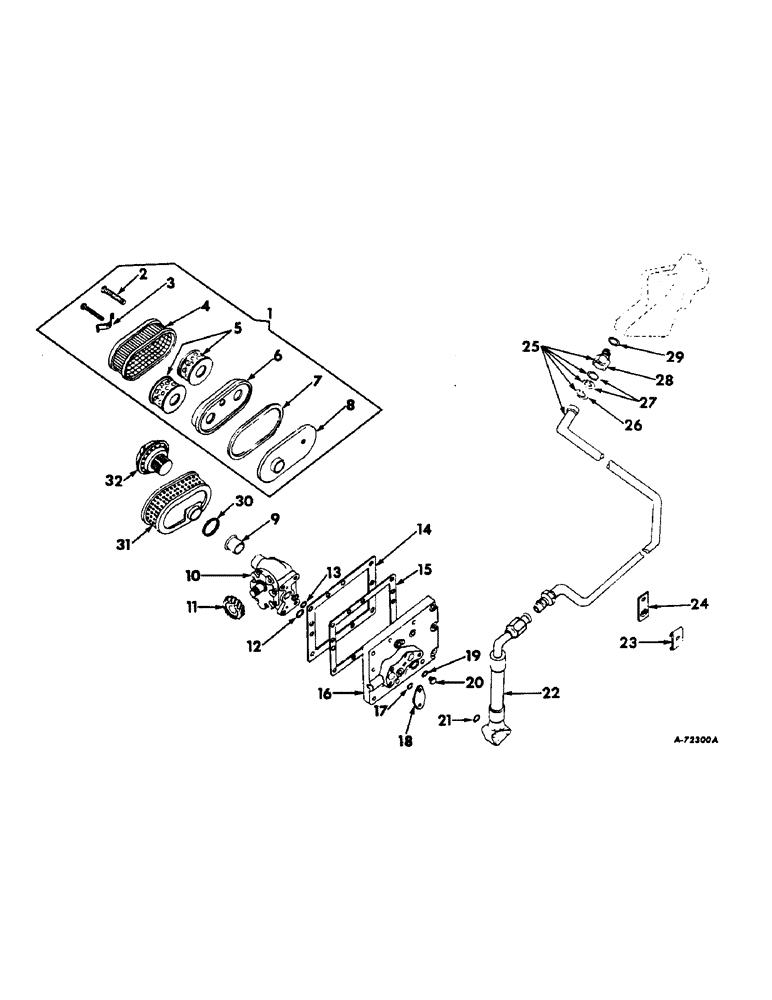

Запчасти Case IH 504 (215) - HYDRAULIC SYSTEM, HYD. POWER SUPPLY, FARMALL TRACTORS W/O DRAFT OR LIFT CONTROL OR POWER STEERING (07) - HYDRAULIC SYSTEM

1

374990R91

NO LONGER SERVICED

FILTER ASSY, tandem oil, less elements, order package 388084R92 and valve 386121R92, Serial Range: 501-10806

1шт.

2

375097R1

SCREW, oil filter, Serial Range: 501-10806

2шт.

3

374997R1

SPRING, oil filter retainer, Serial Range: 501-10806

1шт.

4

374991R11

SCREEN ASSY, oil filter, order package 388084R92 and valve 386121R92, Serial Range: 501-10806

1шт.

5

375085R91

FILTER

PACKAGE, oil filter element, consists of 2 elements, gasket 370801R1 & gasket 374996R1, Serial Range: 501-10806

1шт.

6

374994R1

RETAINER, oil filter element, Serial Range: 501-10806

1шт.

7

374996R1

GASKET

oil filter element support, Serial Range: 501-10806

1шт.

8

374995R11

SUPPORT ASSY, oil filter element, Serial Range: 501-10806

1шт.

9

395334R91

TUBE

PACKAGE, suction tube service, Serial Range: 501-7328

1шт.

9

395335R91

SERVICE KIT

PACKAGE, suction tube service, 7329 up

1шт.

10

374483R95

HYDRAULIC PUMP

PUMP ASSY, hydraulic gear, 12 GPM, Thompson, for components see list of parts under details of hydraulic pump, optional with 373964R94

1шт.

For service replacement on 373964R92 and 374483R92 pumps, also order package 395335R91.

1шт.

10

373964R94

PUMP

ASSY, hydraulic gear, 12 GPM, Cessna, for components see list of parts under details of hydraulic pump, optional with 374483R95

1шт.

For service replacement on 373964R92 and 374483R92 pumps, also order package 395335R91.

1шт.

10

1949296C1

REMAN-HYD PUMP

Remanufactured HYDRAULIC PUMP

1шт.

10

1949297C1

CORE-HYDRAULIC PUMP

Return No, HYDRAULIC PUMP

1шт.

52999D

WASHER

GASKET, pump mounting screw

4шт.

179861

BOLT,Hex, 7/16" - 14 x 1 3/8", Gr 5

SCREW, 7/16-14 x 1-3/8 hex-hd cap

4шт.

11

378116R1

GEAR, pump drive, 14T, Serial Range: 501-2469

1шт.

11

373711R1

PINION

GEAR, pump drive, 15T, Serial Range: 2470-5159

1шт.

11

382902R1

GEAR

pump drive, 17T, 5160 up

1шт.

19263R1

LOCK NUT,Hex, 5/8" - 18

NUT, 5/8-18 elastic stop

1шт.

12

254691R1

O-RING,-211, 70 Duro, .796" ID x .139" Thk

13/16 x 1-1/16 x 1/8, pump pressure port large

1шт.

13

252739R1

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

1/2 x 11/16 x 3/32, pressure port small, used only with pumps 374483R91 and 373964R91

1шт.

13

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

9/16 x 3/4 x 3/32, pressure port small

1шт.

14

370892R2

GASKET

pump mounting flange, .011, .019 thick

1шт.

14

370893R2

GASKET

pump mounting flange, .016, .024 thick

1шт.

15

371043R1

SPACER

pump mounting flange, used w/flange 381719R11

1шт.

Also order spacer 371043R1 when used with gear 382902R1.

1шт.

16

381719R11

FLANGE ASSY, pump mounting, used w/gear 373711R1

1шт.

Also order spacer 371043R1 when used with gear 382902R1.

1шт.

16

383022R11

FLANGE ASSY, pump mounting, used w/gear 382902R1

1шт.

384116R1

PIN

pump mounting flange dowel

4шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, 3/8-16 x 1-1/8 hex-hd cap

3шт.

413-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

SCREW, 3/8-16 x 1-3/8 hex-hd cap, 7 used w/flange 381719R11

1шт.

179843

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

7 used w/flange 383022R11 Hex, 3/8"-16 x 1 1/2", G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

7шт.

17

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

9/16 x 3/4 x 3/32, pressure port cover

1шт.

18

378276R1

COVER

draft control pressure port

1шт.

179815

BOLT,Hex, 5/16" - 18 x 11/16", Gr 5

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

19

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, mounting flange plug

1шт.

20

9410358

PLUG

mounting flange

1шт.

21

369908R1

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

13/16 x 1 x 3/32, pressure hose flange

1шт.

22

379290R91

HOSE ASSY, hydraulic pump pressure

1шт.

179824

BOLT,Hex, 5/16" - 18 x 1 3/4", Gr 5

3шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

123

381426R1

CLAMP, pressure tube clamp

1шт.

179797

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

24

381425R11

BRACKET ASSY, pressure tube

1шт.

25

379289R91

TUBE ASSY, pressure

1шт.

26

382148R1

RETAINER, pressure tube adapter

1шт.

27

382150R91

PACKAGE

adapter O-ring and back-up washer service

1шт.

28

382146R1

ADAPTER, pressure tube

1шт.

29

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

59/64 x 1-1/16 x 7/64, pressure tube

1шт.

30

388082R1

O-RING,1.424" ID x 0.099" Width

RING, oil filter seal, 10807 up

1шт.

31

388084R92

FILTER

PACKAGE, oil filter element service, 10807 up, consists of element, gasket 370801R1 & ring 388082R1

1шт.

31

388084R93GV

HYDRAULIC OIL FILTER

Value, Hydraulic Oil Filter

1шт.

32

386121R92

VALVE

ASSY, hydraulic filter relief, 10807 up

1шт.
