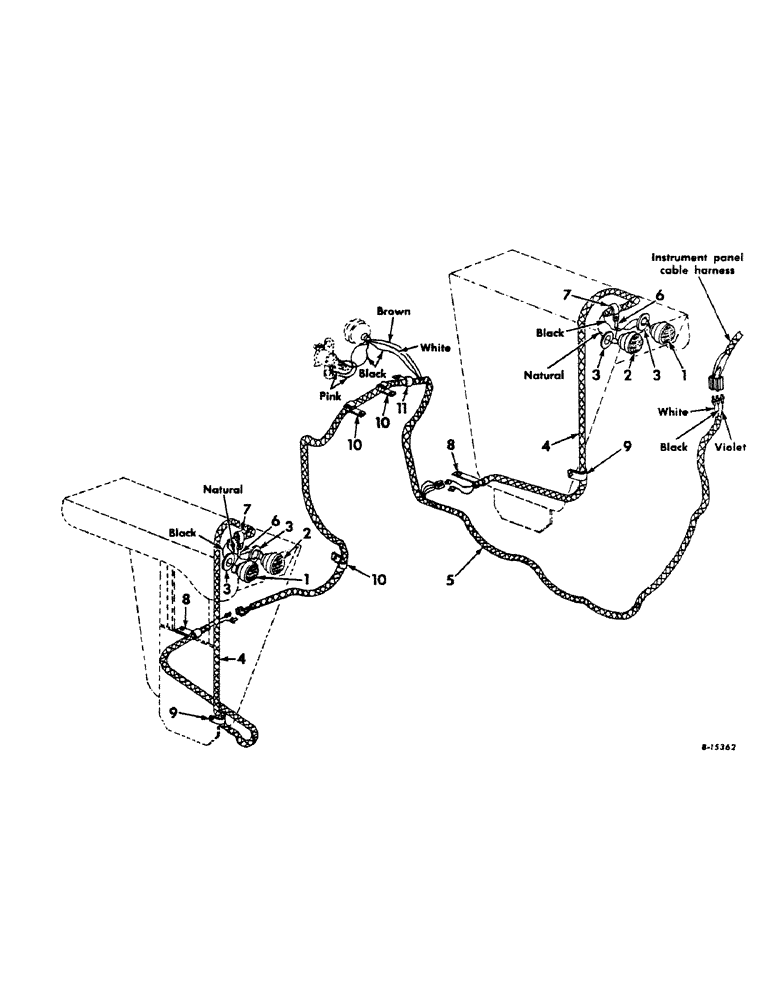

Запчасти Case IH 504 (131) - ELECTRICAL SYSTEM, ELECTRIC LIGHTING, FARMALL TRACTORS W/DELUXE FLAT TOP FENDERS (06) - ELECTRICAL SYSTEMS

389327R93

PARTS ACCESSORY, deluxe fenders w/adjustable lights

1шт.

1

388945R91

HEADLIGHT

LIGHT ASSY, head, only serviceable items are sealed beam unit 373662R91 & retainer, 676078R1

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

2

388946R91

LIGHT

ASSY, flood, only serviceable items are sealed beam unit 373662R91 & retainer 676078R1

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

3

388947R1

RETAINER

head light

4шт.

4

388949R91

HARNESS

CABLE ASSY, fender lighting

2шт.

5

391214R91

HARNESS ASSY, lighting cable

1шт.

6

374490R91

CABLE

ASSY, headlight to ground junction

2шт.

7

362121R1

CLIP

fender lighting cable harness, on LH & RH headlight panel

2шт.

109084

NUT,1/4"-20, G5

2шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

8

391213R1

CLIP, lighting cable harness, on LH & RH axle carrier top front mounting bolt

2шт.

179879

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

9

366460R1

CABLE CLIP

CLIP, fender lighting cable, short, on LH & RH fender support front mounting bolt

2шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.

179814

SPACER

2шт.

10

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, lighting cable harness, short

3шт.

11

362121R1

CLIP

fender lighting cable harness, on breakaway connector RH mounting bolt

1шт.

106653

FUSE

cartridge type AGC-20

1шт.

390911R1

BRACKET, fender mounting

2шт.

425-1012

NUT,3/4"-10, G5

3/4-10 hex

4шт.

179881

BOLT,1/2" - 13 x 1", Gr 5

8шт.

271611

BOLT,Hex, 3/4" - 10 x 2", Gr 5

SCREW, 3/4-10 x 2 hex-hd cap

4шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

393695R92

FENDER ASSY, LH

1шт.

102637

NUT,1/2"-13, G5

2шт.

179882

PIN

SCREW, 1/2-13 x 1-1/8 hex-hd cap

6шт.

395-11053

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

17/32 x 1-1/16 x .074

8шт.

393696R92

FENDER ASSY, RH

1шт.

102637

NUT,1/2"-13, G5

2шт.

179882

PIN

SCREW, 1/2-13 x 1-1/8 hex-hd cap

6шт.

395-11053

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

17/32 x 1-1/16 x .074

8шт.

388940R1

GRIP

fender handle

2шт.

399339R1

SUPPORT ASSY, fender mounting LH

1шт.

399340R1

SUPPORT ASSY, fender mounting RH

1шт.
