Запчасти Case IH 504 (125) - ELECTRICAL SYSTEM, IGNITION & STARTING, W/ALTERNATOR, INTERNATIONAL CARBURETED ENGINE TRACTOR (06) - ELECTRICAL SYSTEMS

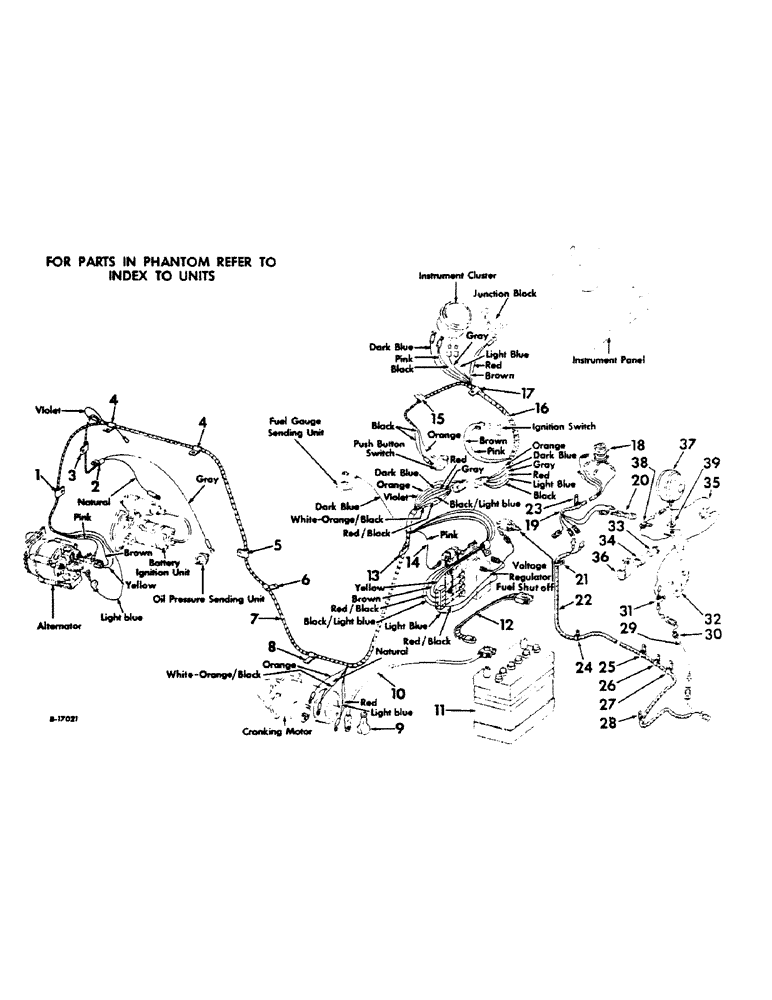

Схема запчастей Case IH 504 - (125) - ELECTRICAL SYSTEM, IGNITION & STARTING, W/ALTERNATOR, INTERNATIONAL CARBURETED ENGINE TRACTOR (06) - ELECTRICAL SYSTEMS
29
38
15
18
6
11
7
24
12
34
4
35
9
27
3
23
4
33
22
37
36
10
32
31
2
39
8
16
20
30
17
21
28
5
19
1
13
26
14
25

Артикул

Название

Примечание

Количество

1

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, cable harness, on water outlet housing upper LH mounting bolt

1шт.

2

384559R1

CLIP

cable harness, on governor housing upper RH mounting bolt

1шт.

3

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, cable harness, on water outlet housing upper RH mounting bolt

1шт.

4

362123R1

CLIP

cable harness, on valve cover mounting studs

2шт.

5

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, cable harness, on cyl head RH rear boss, gasoline engine tractors

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

5

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, cable harness, on fuel filter bracket upper mounting bolt, LP gas engine tractors

1шт.

6

362123R1

CLIP

cable harness, on clutch housing upper RH rear tapped hole, gasoline engine tractors

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

7

392765R91

HARNESS ASSY, main cable, Serial Range: -15190

1шт.

7

397835R1

HARNESS ASSY, main cable, Start Serial: 15191

1шт.

8

362123R1

CLIP

cable harness, on fuel tank support LH front bolt

1шт.

9

364910R1

BOOT

COVER, solenoid terminal

1шт.

10

378325R91

CABLE

W/COVER AND BOLT, battery to solenoid switch

1шт.

356062R91

BOLT

ASSY, terminal

1шт.

11

395595R1

BATTERY, Prestolite 22NF-A9Z, 12 volt

1шт.

12

378326R91

CABLE

STRAP W/BOLT, Serial Range: battery-ground

1шт.

356062R91

BOLT

ASSY, terminal

1шт.

13

362123R1

CLIP

cable harness, on voltage regulator support RH mounting bolt

1шт.

14

385006R91

CABLE ASSY, alternator to ground, Serial Range: -17634

1шт.

14

NSS

NOT SOLD SEPARAT

CABLE ASSY, alternator to ground, part of cable harness 397835R1, Start Serial: 17635

1шт.

15

362121R1

CLIP

cable harness, on instrument cluster lower mounting stud

1шт.

16

380400R91

HARNESS

ASSY, instrument panel

1шт.

17

370383R1

CLIP

cable harness, on governor control friction plate upper mounting bolt

1шт.

18

394771R91

IGNITION SWITCH

SWITCH ASSY, lighting, Start Serial: 14034

1шт.

19

377298R91

HARNESS ASSY, lighting cable

1шт.

20

376852R91

HOUSING

ASSY, fuse, Start Serial: 14034

1шт.

9426333

FUSE,15 Amp, Type 3AG

cartridge type AGC 15

1шт.

21

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, rear light cable, on voltage regulator support LH mounting bolt, Start Serial: 14034

1шт.

22

381543R91

HARNESS ASSY, rear light cable, Start Serial: 14034

1шт.

23

362123R1

CLIP

light cable harness, on upper mounting bolt of governor friction plate, Start Serial: 14034

1шт.

24

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, rear light cable, on clutch housing top cover LH bolt, Start Serial: 14034

1шт.

25

358986R1

CABLE CLIP

CLIP, rear light cable, on rear frame spacer LH side, Start Serial: 14034

1шт.

26

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, rear light cable, on hyd housing LH side, Start Serial: 14034

1шт.

27

362123R1

CLIP

rear light cable, on rear frame spacer LH side mounting bolt, Start Serial: 14034

1шт.

28

358986R1

CABLE CLIP

CLIP, rear light cable, on LH fender front LH mounting bolt, Start Serial: 14034

1шт.

29

376857R91

CABLE ASSY, flasher light junction, Start Serial: 14034

1шт.

30

363846R1

GROMMET

flasher light cable, Start Serial: 14034

1шт.

31

366460R1

CABLE CLIP

CLIP, flasher light cable, on tail and flasher light bracket rear mounting bolt, Start Serial: 14034

1шт.

32

395517R1

BRACKET, tail and flasher light, Start Serial: 14034

1шт.

102635

NUT,3/8"-16, G5

3шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

3шт.

33

394132R91

FLASHER UNIT

FLASHER ASSY, warning light, Start Serial: 14034

1шт.

34

394134R1

SEAL

HOSE, flasher mounting absorber, Start Serial: 14034

1шт.

35

394382R91

CABLE ASSY, flasher to light, Start Serial: 14034

1шт.

36

394133R1

FASTENER

BRACKET, flasher mounting, Start Serial: 14034

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

18654R1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 2

SCREW, 1/4-20 x 3/4 C-Z hex-hd cap

1шт.

446179

WASHER,#12

1/4 x 1/2 x .036 C-Z

1шт.

37

394129R91

LIGHT

ASSY, flashing warning, only serviceable items are lamp, 9417866 lens, amber, guide, 396585R1 or lens, red, guide, 397442R1 or lens, amber, Dietz, 899280R1 or lens, red, Dietz, 899279R1, Start Serial: 14034

1шт.

120371

NUT,1/2"-20, G5

1шт.

135629

GATHERING CHAIN

1/2 C-Z ext-tooth lock

1шт.

38

358986R1

CABLE CLIP

CLIP, flasher light cable, on flashing warning light stud, Start Serial: 14034

1шт.

39

394262R1

WASHER

GASKET, flashing warning light, serial no. 14034 & above, Start Serial: 14034

1шт.

394473R91

CABLE ASSY, flashing warning light jumper, used to provide a means of omitting flashing feature of the warning light, Start Serial: 14034

1шт.

Выбрано товаров: 57
