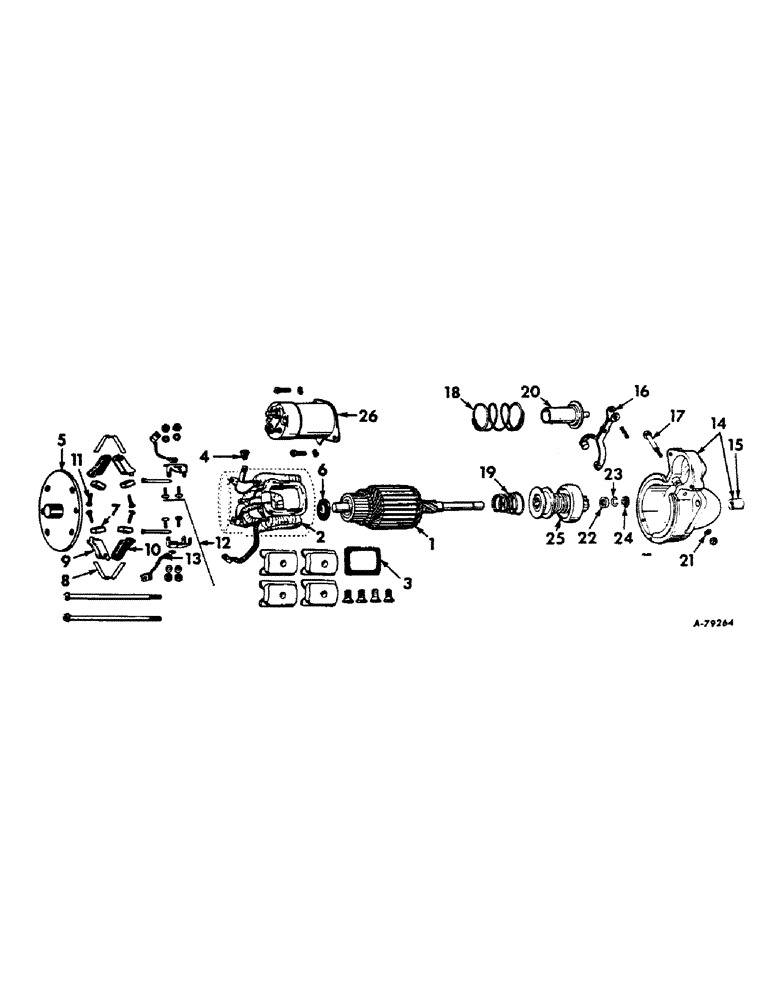

Запчасти Case IH 504 (093) - ELECTRICAL SYSTEM, CRANKING MOTOR, DELCO-REMY, CARBURETED ENGINE TRACTORS (06) - ELECTRICAL SYSTEMS

1107229

MOTOR

MOTOR ASSY, cranking, 377100R91 12 volt, Farmall tractors w/serial no. 15002 & below, International tractors w/serial no. 17742 & below

1шт.

1108343

SPARE PART MOTOR ASSY, cranking, 396522R91 12 volt, Farmall tractors w/serial no. 15003 & above, International tractors w/serial no. 17743 & above

1шт.

104189A1R

REMAN-STARTER

10MT WITH MOUNTED -- DELCO 1107229, 1107444 AND 1108299

1шт.

104189A1C

CORE-STARTER

Return Number

1шт.

104193A1R

REMAN-STARTER

Remanufactured Starter

1шт.

104193A1C

CORE-STARTER

Return Number

1шт.

NLS

NO LONGER SERVICED

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

BOLT, 3/8-16 x 1-1/4 hex-hd cap

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

1

1956422

ARMATURE

1шт.

2

1943504

COIL

COIL ASSY, field, 4 coils

1шт.

3

1927853

FOAM INSULATION

INSULATION, field coil

4шт.

4

1933765

GROMMET

GROMMET, in field frame, used with motor 1107229

1шт.

4

1966391

GROMMET

GROMMET, in field frame, used with motor 1108343

1шт.

5

1928966

FRAME

FRAME, commutator end

1шт.

6

818265

WASHER

WASHER, commutator end brake

1шт.

7

1906945

COMMUTATOR BRUSH

BRUSH

4шт.

8

1926622

VALVE SPRING

SPRING, brush

2шт.

9

1926617

BRUSH HOLDER

HOLDER, ground brush, used with motor 1107229

2шт.

9

1940477

HOLDER

HOLDER, ground brush, used with motor 1108343

2шт.

10

1938587

BRUSH HOLDER

HOLDER, insulated brush, used with motor 1107229

2шт.

10

1926618

HOLDER

HOLDER, insulated brush, used with motor 1108343

2шт.

11

1926648

SCREW, brush attaching, used with motor 1107229

4шт.

11

1967747

SCREW

SPARE PART SCREW, brush attaching, used with motor 1108343

4шт.

12

1928015

BRACKET

PACKAGE, brush holder support

2шт.

13

1926605

ELECTRICAL WIRE

WIRE LEAD, brush ground

2шт.

14

1947300

HOUSING

HOUSING, drive, used with motor 1107229

1шт.

14

1966914

HOUSING

HOUSING, drive, used with motor 1108343

1шт.

15

1839345

BUSHING

BUSHING, drive end, used with motor 1107229

1шт.

15

1862383

BUSHING

BUSHING, drive end, used with motor 1108343

1шт.

16

1932205

LEVER

LEVER, shift, used with motor 1107229

1шт.

16

1951567

LEVER

LEVER, shift, used with motor 1108343

1шт.

17

1932197

SCREW

STUD, shift lever

1шт.

18

1932208

SPRING

SPRING, plunger return, used with motor 1107229

1шт.

18

1958679

SPRING

SPRING, plunger return, used with motor 1108343

1шт.

19

1938171

SPRING, assist

1шт.

20

1953041

PLUNGER

PLUNGER, solenoid switch, used with motor 1107229

1шт.

20

1941113

PLUNGER

PLUNGER, solenoid switch, used with motor 1108343

1шт.

21

1953479

WASHER, shift lever stud sealing lock

2шт.

22

1928021

COLLAR

COLLAR, drive end pinion stop

1шт.

23

1928022

SNAP RING

RING, drive end pinion stop retainer

1шт.

24

1928023

WASHER

WASHER, drive end thrust

1шт.

25

1939109

PINION

DRIVE ASSY, motor, used with motor 1107229

1шт.

25

1968705

DRIVE

DRIVE ASSY, motor, used with motor 1108343

1шт.

26

1114281

SWITCH

SWITCH ASSY, solenoid, used with motor 1107229

1шт.

26

1114356

SOLENOID,Starter

SWITCH ASSY, solenoid, used with motor 1108343

1шт.

120622

NUT,#8-32

NUT, #8-32

2шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

1шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

NUT, Jam, 3/8"-16, G5

1шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

110730

LOCK WASHER

WASHER, 3/8 light lock

1шт.

1952427

GASKET

GASKET, between switch and housing

1шт.
