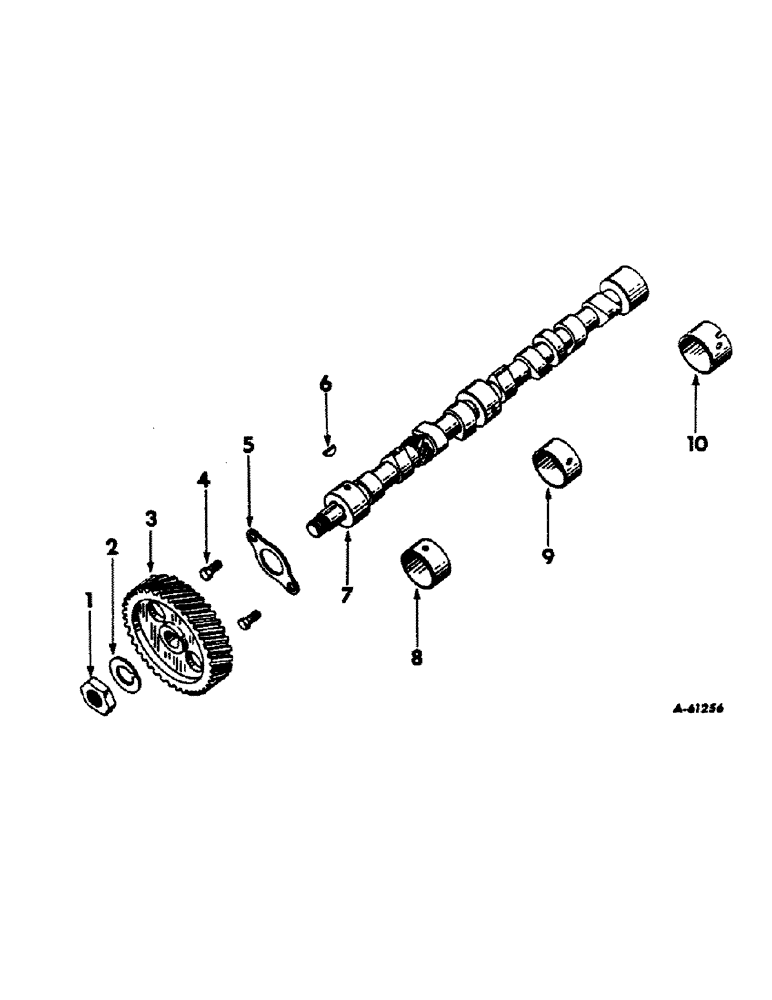

Запчасти Case IH 504 (032) - DIESEL ENGINE, CAMSHAFT AND RELATED PARTS (01) - ENGINE

1

16026DB

NUT

camshaft gear

1шт.

2

16025D

SHIM

LOCK, camshaft gear nut, up to engine serial no.

1шт.

3

367240R1

PINION

GEAR, camshaft

1шт.

4

70425R1

CAPSCREW,Hex, 3/8"- 16 x 3/4"

BOLT, camshaft thrust plate

2шт.

5

35650HA

FLANGE

PLATE, camshaft thrust

1шт.

6

126-117

WOODRUFF KEY,#91, 1/4" x 3/4", HT

1/4 x 3/4 Woodruff no. 91, camshaft gear

1шт.

7

308391R1

CAMSHAFT

1шт.

8

70259R2

BUSHING

camshaft front

1шт.

9

70260R1

BUSHING,53.25mm ID x 56.54mm OD x 27.23mm L

camshaft center

1шт.

10

70261R2

BUSHING,23.02mm ID x 55.92mm OD x 27.23mm L

camshaft rear

1шт.
