Запчасти Case IH 504 (030) - DIESEL ENGINE, CONNECTING RODS AND PISTONS (01) - ENGINE

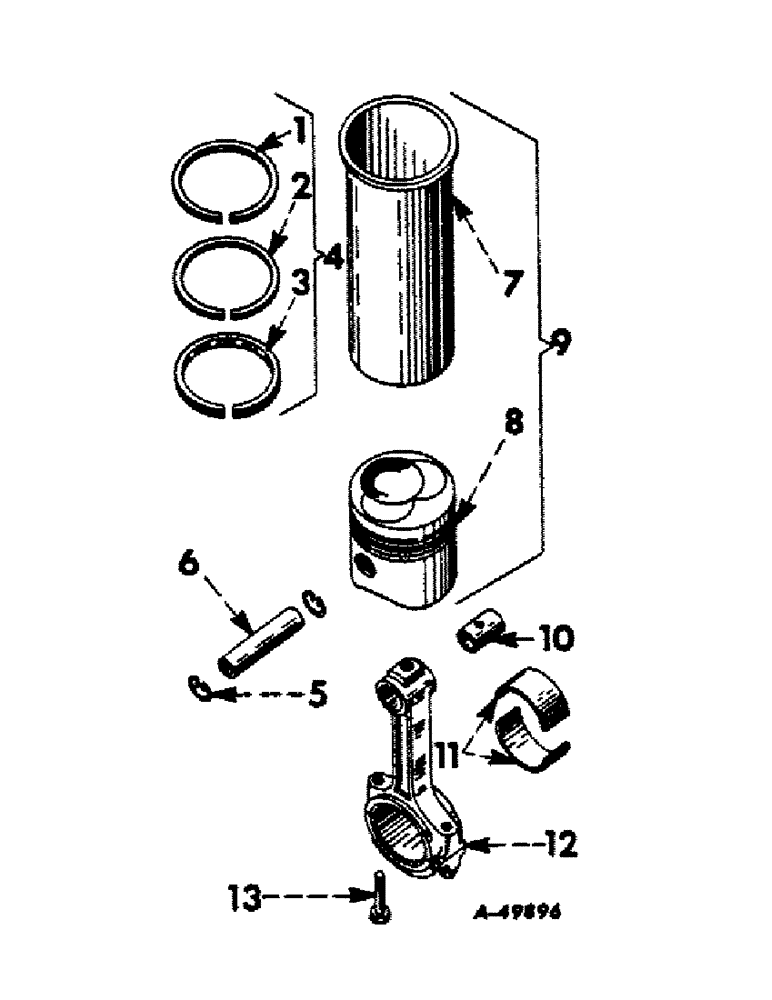

Схема запчастей Case IH 504 - (030) - DIESEL ENGINE, CONNECTING RODS AND PISTONS (01) - ENGINE
2
3
4
7
1
9
11
8
5
13
12
6
10

Артикул

Название

Примечание

Количество

1

615288C1

RING, compression piston, top or first groove, will work for 317879R1

4шт.

2

615289C1

RING

compression piston, second groove, will work for 338403R1

4шт.

3

278329R1

RING, oil piston, third or bottom groove

4шт.

4

316335R93

PACKAGE

RING SET, piston, consists of eight compression rings and four oil regulating rings

1шт.

5

338835R1

SNAP RING,1.125", Int, #112

RING, snap, , piston pin 1.125", Int, #112

8шт.

6

332436R1

PIN,28.57mm OD x 17.48mm L

piston, standard

4шт.

6

332437R1

PIN, piston, .005 oversize

4шт.

7

320017R91

PACKAGE

CYLINDER SLEEVE PACKAGE, consists of 4 sleeve 278272R1, shim 320000R1 and two shims 320018R1

1шт.

7

278272R1

SLEEVE CYLINDER

SLEEVE, cylinder

4шт.

7

323802R1

SLEEVE CYLINDER

SLEEVE, cylinder, .002 oversize

4шт.

7

601289C1

SLEEVE CYLINDER

SLEEVE, cylinder, .010 oversize

4шт.

320000R1

SHIM

cylinder sleeve .005, as required

1шт.

320018R1

SHIM

cylinder sleeve .003, as required

1шт.

8

318377R2

PISTON

4шт.

9

332682R91

SLEEVE

SET, crankcase, consists of four sleeves 332672R91

1шт.

9

609344C91

PACKAGE, REPAIR

SLEEVE ASSY, cylinder, composed of (1) pin 332436R1 (1) piston 318377R2 (2) ring 338835R1 (1) ring 615288C1 (1) ring 615289C1 (1) ring 278329R1 (1) sleeve assy 320017R91

4шт.

9

609346C91

SLEEVE CYLINDER

SLEEVE ASSY, cylinder, oversize, composed of (1) pin 332436R1 (1) piston 318377R2 (2) ring 338835R1 (1) ring 618288C1 (1) ring 615289C1 (1) ring 278329R1 (1) sleeve assy 320217R91

4шт.

10

306708R1

BUSHING,28.28mm ID x 31.89mm OD x 33.33mm L

piston pin

4шт.

11

367408R11

BEARING ASSY,60.84mm ID x 64.01mm OD x 25.48mm W

BEARING ASSY, connecting rod, 2 halves, standard

4шт.

11

367632R11

BEARING ASSY

BEARING ASSY, connecting rod, 2 halves, .002 undersize

4шт.

11

376666R11

BEARING ASSY

ASSY, connecting rod, 2 halves, .010 undersize

4шт.

11

376668R11

CONN. ROD SHELL

BEARING ASSY, connecting rod, 2 halves, .020 undersize

4шт.

11

367631R11

BEARING ASSY

ASSY, connecting rod, 2 halves

1шт.

12

306280R12

ROD, CONNECTING

ROD W/TWO BOLTS, 316366R1 & bushing, .030 undersize, 306708R1, connecting

4шт.

12

735237C91

REMAN-CONNECTING ROD

Remanufactured CONNECTING ROD

4шт.

12

1928147C1

CORE-ROD CONNECTING

Return No, CONNECTING ROD

4шт.

13

316366R1

BOLT,3/8" - 24 x 2"

connecting rod

8шт.

Выбрано товаров: 27
