Запчасти Case IH 504 (181) - STEERING MECHANISM, HYDRASTATIC POWER STEERING HAND PUMP, INTERNATIONAL TRACTORS Steering Mechanism

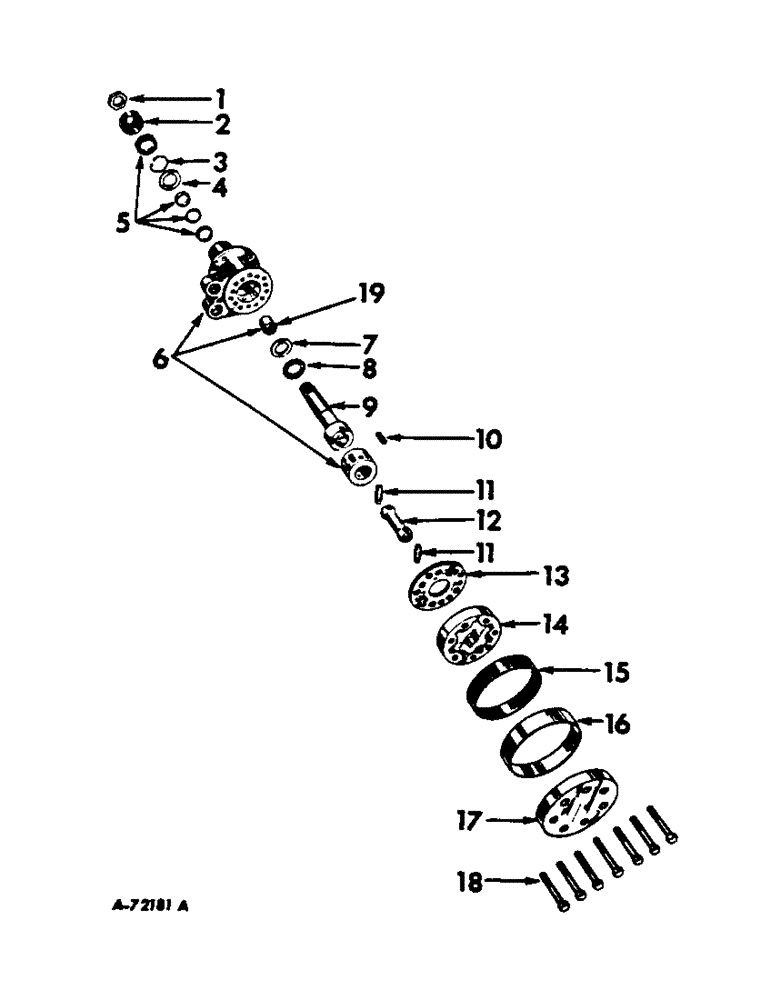

Схема запчастей Case IH 504 - (181) - STEERING MECHANISM, HYDRASTATIC POWER STEERING HAND PUMP, INTERNATIONAL TRACTORS Steering Mechanism
4
9
3
6
10
15
16
5
7
11
11
18
14
17
8
2
1
19
12
13

Артикул

Название

Примечание

Количество

378578R93

HYDRAULIC STEERING

PUMP ASSY, power steering hand

1шт.

1

F19646

LOCK NUT,13/16"-20, Thin

NUT, steering wheel

1шт.

2

226032R1

SEAL

dust, not included in pump assy

1шт.

3

383878R1

SNAP RING,1.25, Int, #125

RING, snap, 1.25", Int, #125, pump shaft

1шт.

4

379786R1

WASHER

pump shaft

1шт.

5

379782R92

SERVICE KIT

PACKAGE, hand pump service

1шт.

6

379694R91

BODY

ASSY, hand pump

1шт.

7

379785R1

THRUST WASHER

RACE, thrust bearing

1шт.

8

379783R91

THRUST BEARING

BEARING, thrust needle

1шт.

9

379784R1

SHAFT

coupling

1шт.

10

379700R1

PIN

pump spool

1шт.

11

379693R1

PIN

pump link

2шт.

12

379701R1

LINK

pump

1шт.

13

396545R1

PLATE

SPACER, pump, will work for 379695R1

1шт.

14

379697R2

NO LONGER SERVICED

ROTOR SET

1шт.

15

379781R1

BOOT

SEAL, rotor

1шт.

16

379696R1

RING

RETAINER, seal

1шт.

17

379698R1

COVER

end

1шт.

18

379699R1

BOLT,Spcl, Hex, 5/16" - 18 x 1 3/4", Gr 5, HT

end cover

7шт.

19

10026R

NEEDLE BEARING,0.875" ID x 1.1245" OD x 0.5"

BEARING, needle

1шт.

Выбрано товаров: 20
