Запчасти Case IH 504 (271) - ENGINE CONTROLS, INSTRUMENTS & PANEL, TACHOMETER, DIESEL ENGINE TRACTORS Engine Controls

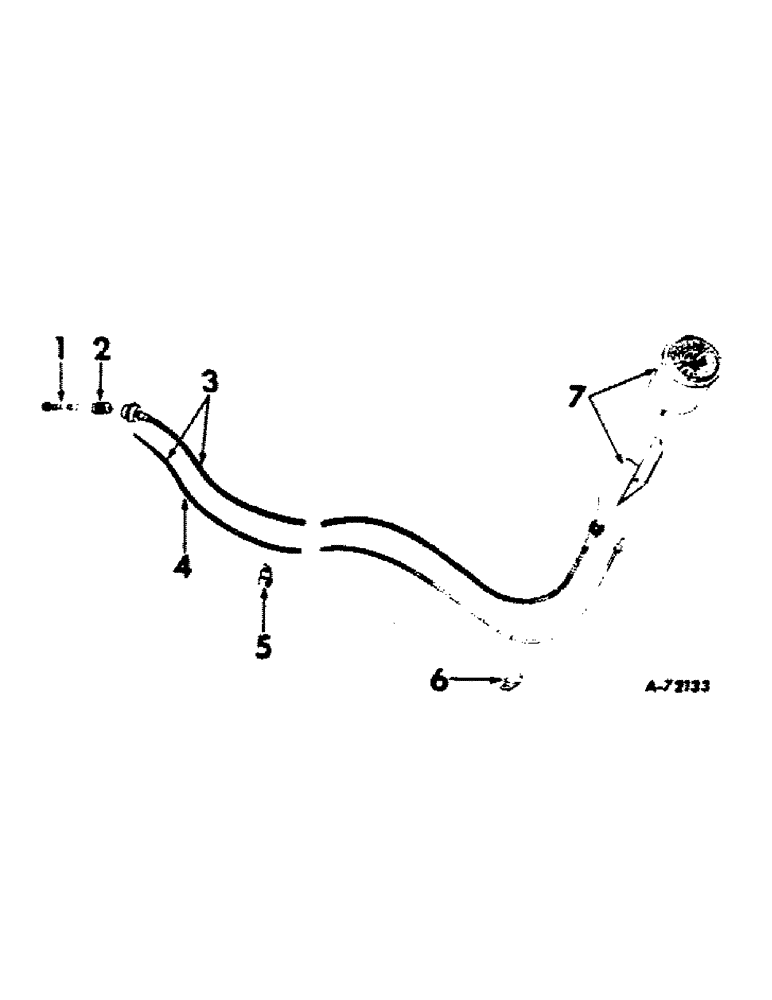

Схема запчастей Case IH 504 - (271) - ENGINE CONTROLS, INSTRUMENTS & PANEL, TACHOMETER, DIESEL ENGINE TRACTORS Engine Controls
1
2
3
4
5
7
6

Артикул

Название

Примечание

Количество

1

368245R12

PINION

GEAR ASSY, tachometer drive

1шт.

2

368246R1

CONNECTION

HOUSING, tachometer connection

1шт.

3

397016R92

CABLE

SHAFT W/CORE, tachometer, Farmall tractors (replaces 370197R91)

1шт.

3

375160R91

CABLE ASSY.

SHAFT W/CORE, tachometer, International tractors

1шт.

4

370215R91

CORE

ASSY, tachometer, Farmall tractors

1шт.

4

375159R91

CORE

ASSY, tachometer, International tractors

1шт.

5

61813D

CLIP

tachometer flexible drive shaft, on crankcase breather pipe flange rear mounting bolt, International tractors

1шт.

6

61813D

CLIP

tachometer flexible drive shaft, on fuel tank and cowl rear support bracket LH side rear bolt, International tractors

1шт.

7

383090R91

TACHOMETER

ASSY

1шт.

Выбрано товаров: 9
