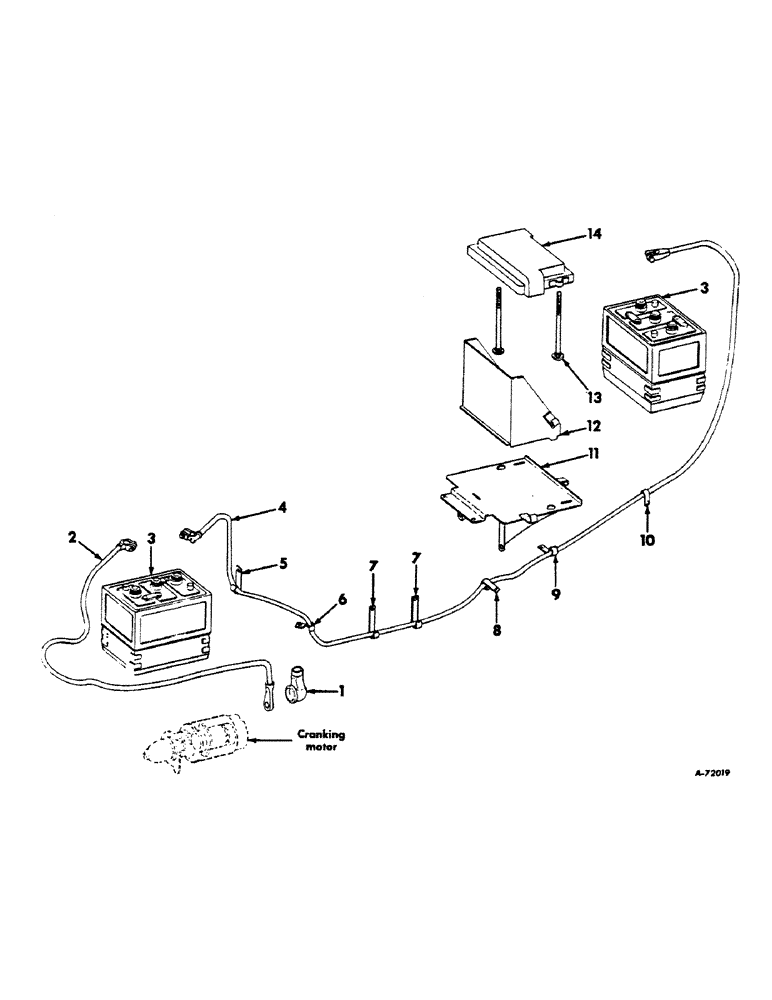

Запчасти Case IH 504 (136) - ELECTRICAL SYSTEM, HEAVY DUTY BATTERY, FARMALL DIESEL ENGINE TRACTORS (06) - ELECTRICAL SYSTEMS

1

364910R1

BOOT

COVER, solenoid terminal

1шт.

2

379921R91

CABLE W/COVER AND BOLT, battery to solenoid switch

1шт.

356062R91

BOLT

ASSY, terminal

1шт.

3

391546R91

BATTERY, Prestolite 2-A9Z, 6 volt

2шт.

4

379920R91

CABLE ASSY, Serial Range: battery-battery

1шт.

356062R91

BOLT

ASSY, terminal

2шт.

5

362123R1

CLIP

cable, on rear steering shaft support lower center hole

1шт.

6

363660R1

CLIP

S, cable, on rear steering shaft support LH front mounting bolt

1шт.

7

380053R1

CLIP, cable, on LH platform

2шт.

8

362123R1

CLIP

cable, on LH brake housing

1шт.

9

362123R1

CLIP

cable, on rear frame spacer

1шт.

10

358986R1

CABLE CLIP

CLIP, cable, on rear frame spacer

1шт.

11

379805R11

BASE ASSY, battery support

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8-16 x 7/8 hex-hd cap

2шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

2шт.

H39668

SPACER, support base RH, tractors with hyd lift

1шт.

373080R1

SPACER,1/2" Pipe x 1/2"

battery base support

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

12

379809R11

SHIELD ASSY, battery

1шт.

13

911248R1

BOLT, battery hold down

2шт.

388697R1

NUT

hold down bolt wing

2шт.

14

379808R11

COVER ASSY, battery hold down

1шт.
