Запчасти Case IH 504 (086) - ELECTRICAL SYSTEM, GENERATOR AND CONNECTIONS, CARBURETED ENGINE TRACTORS (06) - ELECTRICAL SYSTEMS

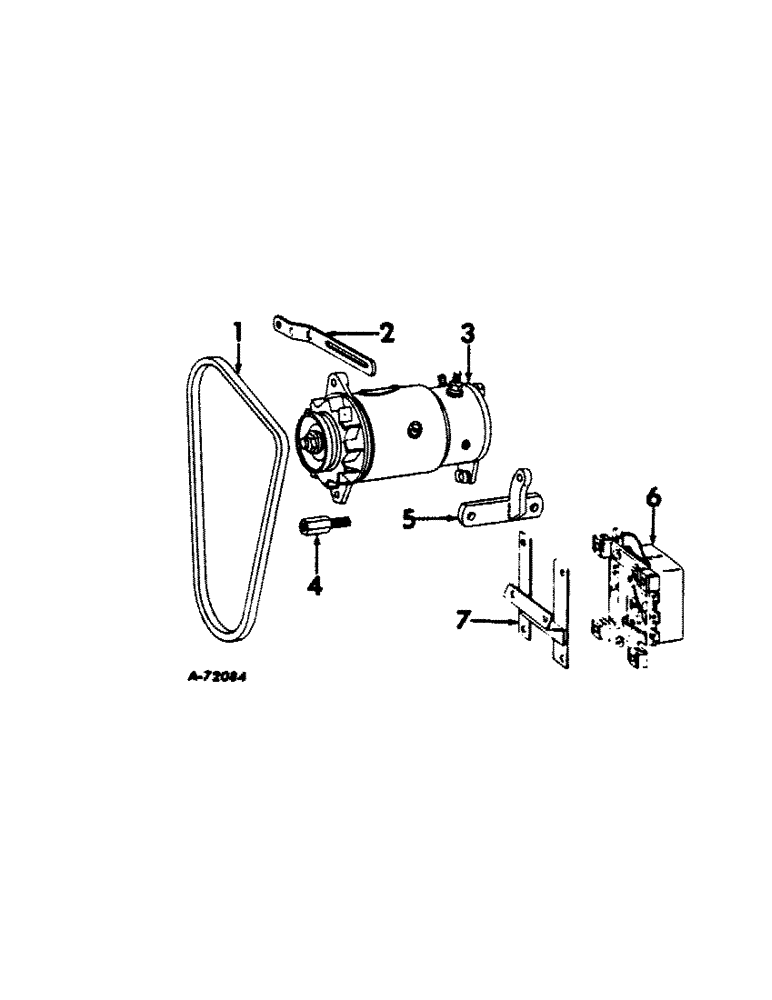

Схема запчастей Case IH 504 - (086) - ELECTRICAL SYSTEM, GENERATOR AND CONNECTIONS, CARBURETED ENGINE TRACTORS (06) - ELECTRICAL SYSTEMS
5
6
4
3
2
7
1

Артикул

Название

Примечание

Количество

1

151529R1

BELT

BELT, fan and generator

1шт.

2

368574R3

BRACE

BRACE, generator

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16-18 x 5/8 hex-hd cap

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

280185R1

SPACER

WASHER, generator brace

1шт.

3

1100409

SPARE PART GENERATOR ASSY, 376842R91, 12 volt, for components see list of parts under details of generator

1шт.

3

104019A1R

REMAN-GENERATOR

Remanufactured, Generator, 12 volt 25 ampere

1шт.

3

104019A1C

CORE-GENERATOR

Return Number, Generator, 12 volt 25 ampere

1шт.

225-14112

NUT,#12-24

12-24 hex, mach screw

2шт.

9635082

NUT,5/16" - 18, Gr 5

NUT, 5/16"-18, G5

1шт.

179814

SPACER

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

BOLT, Hex, 5/16"-18 x 1", G5, Full Thd

1шт.

179820

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

BOLT, Hex, 5/16"-18 x 1 1/4", G5

1шт.

121744

ANGLE

WASHER, lock, #12

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

4

375673R1

SPARE PART STUD, generator mounting front

1шт.

5

375664R91

SPARE PART BRACKET ASSY, generator rear

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

BOLT, 3/8-16 x 7/8 hex-hd cap

2шт.

93-41039

LOCK WASHER,Ext Tooth, 3/8"

WASHER, 3/8 ext-tooth lock

2шт.

6

1119270E

REGULATOR ASSY, voltage, 375055R91 12 volt, for components see list of parts under details of voltage regulator

1шт.

179799

BOLT,Hex, 1/4" - 20 x 1 1/4", Gr 5

BOLT, Hex, 1/4"-20 x 1 1/4", G5

4шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

7

378054R91

SPARE PART BRACKET ASSY, voltage regulator mounting, International tractors

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

BOLT, Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

Выбрано товаров: 24
