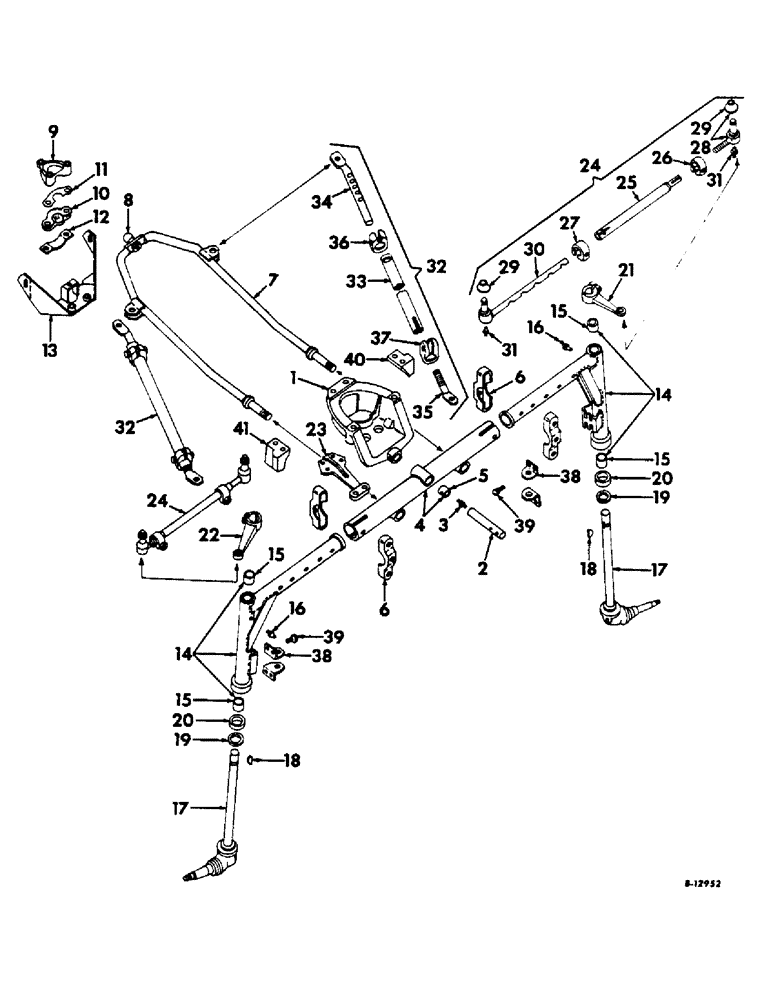

Запчасти Case IH 504 (187) - FRONT AXLE, ADJUSTABLE FRONT AXLE AND CONNECTIONS, FARMALL HI-CLEAR TRACTORS (04) - FRONT AXLE

1

379743R1

BRACKET, front axle pivot

1шт.

271560

PANEL,Hex, 5/8" - 11 x 1 3/4", Gr 5

2шт.

413-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

SCREW, 5/8-11 x 4 hex-hd cap

2шт.

2

370997R1

PIN

front axle pivot

1шт.

Q1436

PIN,3/8" x 2 9/16"

3/8 x 2-9/16 headed

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

3

80717

LUBE NIPPLE,45 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8-27 x 45 deg lub, front axle pivot pin

1шт.

4

380927R21

AXLE ASSY, front

1шт.

5

368608R1

BUSHING,31.76mm ID x 34.95mm OD x 53.34mm L

front axle pivot

1шт.

6

361851R1

CLAMP, front axle extension

4шт.

102639

NUT,5/8"-11, G5

6шт.

280232

BOLT,Hex, 5/8" - 11 x 5 1/2", Gr 5

2шт.

NLS

NO LONGER SERVICED

SCREW, 5/8-11 x 3-3/4 hex-hd cap

4шт.

7

385988R11

ROD ASSY, stay

1шт.

427546

JAM NUT,Jam, 1 3/8"-12, G5

1-3/8-12 hex, jam

2шт.

8

365453R1

BALL

stay rod socket

1шт.

425-1910

SLOTTED NUT,5/8"-18, G5, Thk

NUT, 5/8-18 slt thick hex

1шт.

103387

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

1шт.

9

371004R2

SOCKET

stay rod ball

1шт.

271560

PANEL,Hex, 5/8" - 11 x 1 3/4", Gr 5

1шт.

10

371005R1

SOCKET

CAP, stay rod ball socket

1шт.

11

371006R1

SHIM

stay rod ball socket cap

1шт.

12

371007R1

CLAMP

PLATE, stay rod ball socket cap lock

1шт.

13

386002R11

SUPPORT ASSY, stay rod ball socket

1шт.

271607

BOLT,Hex, 3/4" - 10 x 1 1/2", Gr 5

SCREW, 3/4-10 x 1-1/2 hex-hd cap

2шт.

271573

BRACKET

SCREW, 5/8-11 x 4-3/4 hex-hd cap

2шт.

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

21/32 x 1-5/16 x .095

1шт.

14

385989R91

EXTENSION ASSY, front axle

2шт.

15

368621R1

BUSHING,36.2mm ID x 39.47mm OD x 38.35mm L

steering knuckle post

4шт.

16

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

FITTING, 3/16 straight drive lub, steering knuckle post

2шт.

17

385994R91

KNUCKLE W/SEAL, 368629R91 & shield 43462D, steering

2шт.

18

117997

WOODRUFF KEY,#25, 5/16" x 1 1/2", HT

Steering knuckle #25, 5/16" x 1 1/2", HT

2шт.

19

368627R1

WASHER

steering knuckle felt

2шт.

20

365317R91

THRUST BEARING,36.51mm ID x 2.48mm OD x 16.51mm W

steering knuckle thrust

2шт.

21

371014R1

ARM, steering knuckle LH

1шт.

179890

LATCH

SCREW, 1/2-13 x 2-1/4 hex-hd cap

1шт.

22

371015R1

ARM, steering knuckle RH

1шт.

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

SCREW, 1/2-13 x 2-1/4 hex-hd cap

1шт.

23

371018R1

ARM, steering gear

1шт.

102639

NUT,5/8"-11, G5

2шт.

9411648

LOCK NUT,1/2"-20, GC

NUT, 1/2-20 hex, stover lock

2шт.

271558

HOOD,Hex, 5/8" - 11 x 1 1/2", Gr 5

SCREW, 5/8-11 x 1-1/2 hex-hd cap

2шт.

395-11053

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

17/32 x 1-1/16 x .095

2шт.

24

385996R91

TIE ROD ASSY, adjustable

2шт.

25

371023R1

TUBE,0.766" ID, 1.005" OD, 20.11" Length

tie rod

2шт.

26

356543R1

CLAMP

tie rod

2шт.

102635

NUT,3/8"-16, G5

2шт.

179843

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

2шт.

27

43747D

CLAMP

tie rod

2шт.

NLS

NO LONGER SERVICED

7/16-14 hex

2шт.

179864

BOLT,Hex, 7/16" - 14 x 1 3/4", Gr 5

SCREW, 7/16-14 x 1-3/4 hex-hd cap

2шт.

28

356540R91

END

ASSY, tie rod RH thread

2шт.

29

358209R1

COVER

tie rod end

4шт.

425-138

SLOTTED NUT,1/2"-20, G8

NUT, 1/2-13 slt hex

4шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

4шт.

30

385997R11

ROD

ASSY, tie

2шт.

31

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , Taper, Tie rod end lub 1/4"-28 NPT x .54" lg

4шт.

32

385998R91

ROD ASSY, auxiliary stay

2шт.

33

385999R1

TUBE, auxiliary stay rod

2шт.

34

386000R1

END, auxiliary stay rod adjustable

2шт.

218197

NUT,3/4"-16, G5

3/4-16 hex

2шт.

271636

SEAL KIT

SCREW, 3/4-16 x 2-1/2 hex-hd cap

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

35

386001R1

END, auxiliary stay rod threaded

2шт.

218197

NUT,3/4"-16, G5

3/4-16 hex

2шт.

271636

SEAL KIT

SCREW, 3/4-16 x 2-1/2 hex-hd cap

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

36

359003R1

CLAMP

auxiliary stay rod adj end

2шт.

425-1110

NUT,5/8"-18, G5

2шт.

271591

BOLT,Hex, 5/8" - 18 x 3", Gr 5

SCREW, 5/8-18 x 3 hex-hd cap

2шт.

114609

LOCK WASHER,Ext Tooth, 5/8"

WASHER, LOCK, Ext Tooth, 5/8"

2шт.

37

359004R1

CLAMP

auxiliary stay rod threaded end

2шт.

425-1110

NUT,5/8"-18, G5

2шт.

NLS

NO LONGER SERVICED

SCREW, 5/8-18 x 3 hex-hd cap

2шт.

114609

LOCK WASHER,Ext Tooth, 5/8"

WASHER, LOCK, Ext Tooth, 5/8"

2шт.

38

359005R1

BRACKET, auxiliary stay rod mounting front

4шт.

39

359006R1

BOLT

BOLT, auxiliary stay rod front mounting bracket

8шт.

25-118

NUT,1/2"-20, G5

1/2-20 hex

8шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

40

378830R1

BRACKET, front axle stop LH

1шт.

179892

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

SCREW, 1/2-13 x 2-3/4 hex-hd cap

2шт.

41

378831R1

BRACKET, front axle stop RH

1шт.

179892

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

SCREW, 1/2-13 x 2-3/4 hex-hd cap

4шт.
