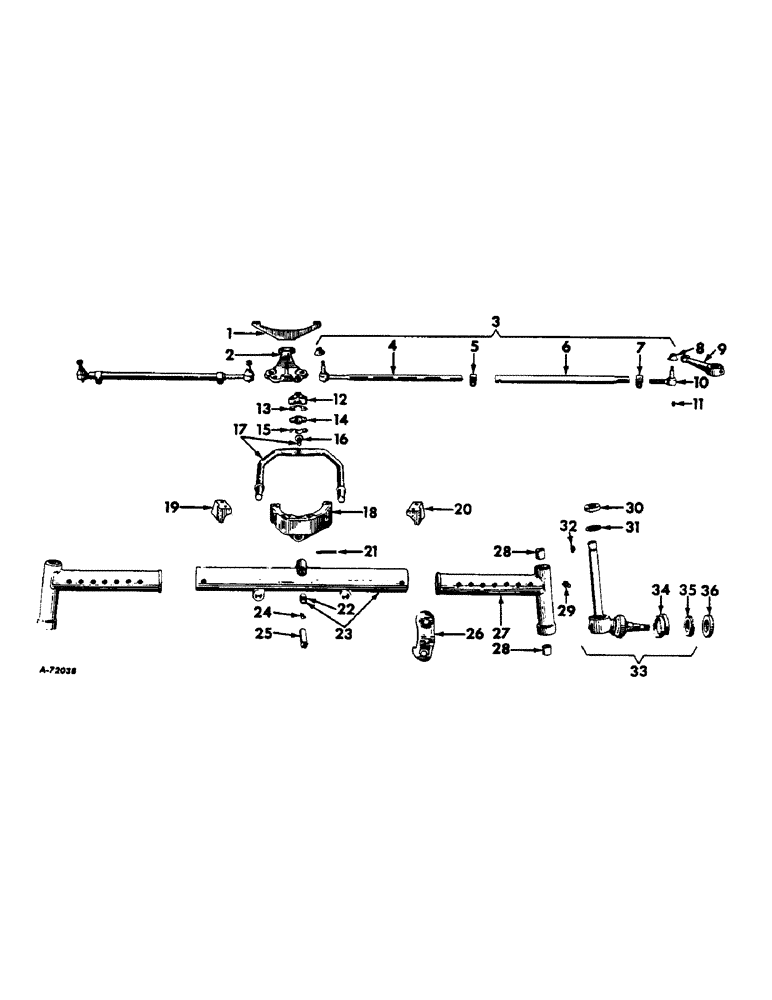

Запчасти Case IH 504 (185) - FRONT AXLE, ADJUSTABLE WIDE TREAD FRONT AXLE, FARMALL TRACTORS EXCEPT HI-CLEAR (04) - FRONT AXLE

NSS

NOT SOLD SEPARAT

ATTACHMENT, adjustable wide tread front axle, 50 in. tread, 380924R91, consists of all unmarked parts and those marked unit A

1шт.

NSS

NOT SOLD SEPARAT

ATTACHMENT, adjustable wide tread front axle, 58 in. tread, 380926R91, consists of all unmarked parts and those marked unit B

1шт.

1

378759R1

SUPPORT, stay rod ball socket

1шт.

25-118

NUT,1/2"-20, G5

1/2-20 hex

4шт.

181440

BOLT,Hex, 1/2" - 20 x 2 1/2", Gr 5

SCREW, 1/2-20 x 2-1/2 hex-hd cap

4шт.

51693D

BAR

WASHER, socket support

4шт.

2

371018R1

ARM, steering gear

1шт.

9411648

LOCK NUT,1/2"-20, GC

NUT, 1/2-20 stover hex. lock

2шт.

102639

NUT,5/8"-11, G5

2шт.

271558

HOOD,Hex, 5/8" - 11 x 1 1/2", Gr 5

NUT, 5/8-11 x 1-1/2 hex-hd cap

2шт.

395-11053

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

17/32 x 1-1/16 x .095

2шт.

3

371019R91

TIE ROD ASSY, adjustable, 2 for unit A

1шт.

3

371022R91

ROD

TIE ROD ASSY, adjustable, 2 for unit B

1шт.

4

371021R11

ROD

TIE ROD W/COVER, 358209R1, nut 102647 and pin 103385

2шт.

425-138

SLOTTED NUT,1/2"-20, G8

NUT, SLOTTED, 1/2"-20, G8

2шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

5

43747D

CLAMP

tie rod

2шт.

NLS

NO LONGER SERVICED

7/16-14 hex

2шт.

179864

BOLT,Hex, 7/16" - 14 x 1 3/4", Gr 5

SCREW, 7/16-14 x 1-3/4 hex-hd cap

2шт.

6

371020R1

TUBE,0.766" ID, 1.005" OD, 16.11" Length

tie rod, 2 for unit A

1шт.

6

371023R1

TUBE,0.766" ID, 1.005" OD, 20.11" Length

tie rod, 2 for unit B

1шт.

7

356543R1

CLAMP

tie rod

2шт.

102635

NUT,3/8"-16, G5

2шт.

NLS

NO LONGER SERVICED

2шт.

8

358209R1

COVER

tie rod end dust

4шт.

9

371014R1

ARM, steering knuckle LH

1шт.

9

371015R1

ARM, steering knuckle RH

1шт.

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

SCREW, 1/2-13 x 2-1/4 hex-hd cap

2шт.

10

356540R91

END

W/COVER, 358209R1, nut 102647 and pin 103385, tie rod

1шт.

11

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , Straight 1/4"-28 NPT x .54" lg

4шт.

12

371004R2

SOCKET

stay rod ball

1шт.

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

SCREW, 5/8-11 x 1-1/2 hex-hd cap

1шт.

NLS

NO LONGER SERVICED

SCREW, 5/8-11 x 3-3/4 hex-hd cap

2шт.

13

371006R1

SHIM

stay rod ball socket cap

3шт.

14

371005R1

SOCKET

CAP, stay rod ball socket

1шт.

15

371007R1

CLAMP

PLATE, stay rod ball socket cap lock

1шт.

16

365453R1

BALL

stay rod socket

1шт.

425-1910

SLOTTED NUT,5/8"-18, G5, Thk

NUT, 5/8-18 slt hex

1шт.

103387

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

1шт.

17

380931R11

STAY ROD ASSY

1шт.

427546

JAM NUT,Jam, 1 3/8"-12, G5

1-3/8-12 hex

2шт.

18

379743R1

BRACKET, front axle pivot

1шт.

271560

PANEL,Hex, 5/8" - 11 x 1 3/4", Gr 5

2шт.

NLS

NO LONGER SERVICED

SCREW, 5/8-11 x 4 hex-hd cap

2шт.

19

378830R1

BRACKET, front axle stop LH

1шт.

179892

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

SCREW, 1/2-13 x 2-3/4 hex-hd cap

2шт.

20

378831R1

BRACKET, front axle stop RH

1шт.

179892

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

SCREW, 1/2-13 x 2-3/4 hex-hd cap

2шт.

21

Q1436

PIN,3/8" x 2 9/16"

3/8 x 2-9/1 headed, front axle pivot bracket

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

22

368608R1

BUSHING,31.76mm ID x 34.95mm OD x 53.34mm L

front axle pivot

1шт.

23

380927R21

AXLE ASSY, front, unit A

1шт.

23

380929R21

AXLE ASSY, front, unit B

1шт.

24

80717

LUBE NIPPLE,45 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8-27 x 45 deg angle lub

1шт.

25

370997R1

PIN

front axle pivot

1шт.

26

361851R1

CLAMP, front axle extension

4шт.

102639

NUT,5/8"-11, G5

6шт.

271569

SOCKET,Hex, 5/8" - 11 x 3 3/4", Gr 5

SCREW, 5/8-11 x 3-3/4 hex-hd cap

4шт.

280232

BOLT,Hex, 5/8" - 11 x 5 1/2", Gr 5

2шт.

114609

LOCK WASHER,Ext Tooth, 5/8"

WASHER, LOCK, Ext Tooth, 5/8"

6шт.

27

380932R11

EXTENSION, w/2 bushings 368621R1, front axle, 2 for unit A

1шт.

27

380933R11

EXTENSION, w/2 bushings 368621R1, front axle, 2 for unit B

1шт.

28

368621R1

BUSHING,36.2mm ID x 39.47mm OD x 38.35mm L

steering knuckle post

4шт.

29

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

FITTING, 3/16 drive type str lub

2шт.

30

365317R91

THRUST BEARING,36.51mm ID x 2.48mm OD x 16.51mm W

steering knuckle thrust

2шт.

31

368627R1

WASHER

steering knuckle felt

2шт.

32

117997

WOODRUFF KEY,#25, 5/16" x 1 1/2", HT

2шт.

33

371429R91

KNUCKLE

ASSY, steering

2шт.

102649

SLOTTED NUT,5/8"-18, G5

NUT, 5/8"-18, G5

2шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

2шт.

34

43462D

DEFLECTOR

steering knuckle dust

2шт.

35

368629R91

SEAL

front wheel dust

2шт.

36

369936R1

WASHER

front wheel outer brg retainer

2шт.
