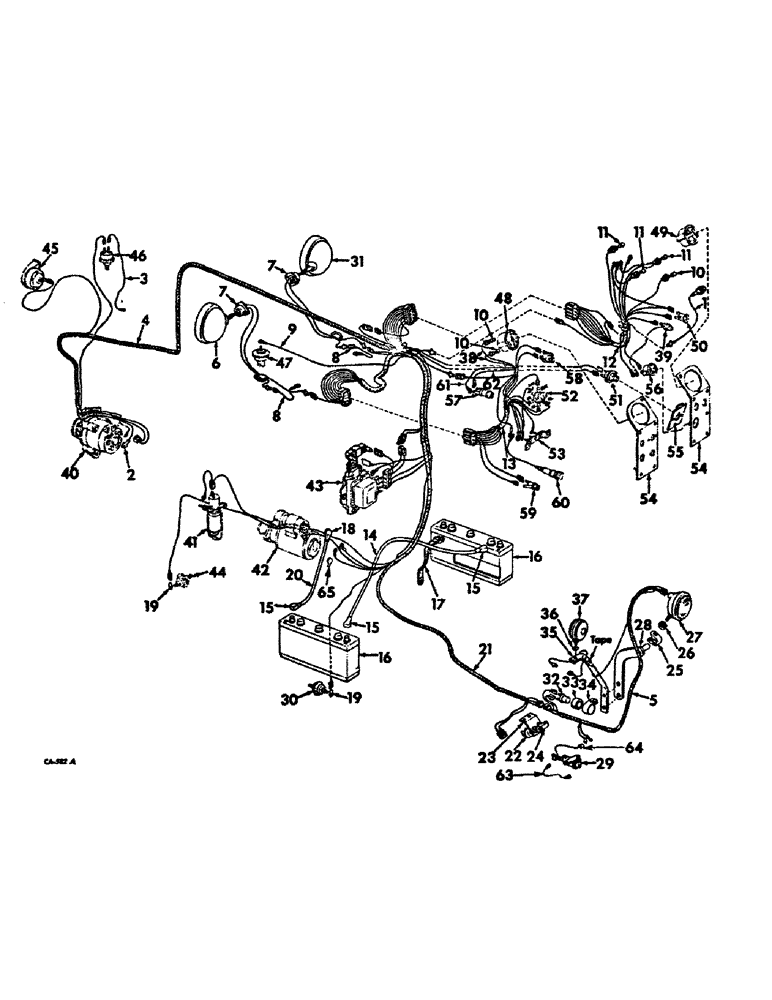

Запчасти Case IH 1456 (08-06) - ELECTRICAL, STARTING LIGHTING, FARMALL TRACTORS (06) - ELECTRICAL

1

397946R1

LIGHT

ASSY, gear selector

1шт.

2

399470R1

BOOT

INSULATOR, terminal cover boot

1шт.

3

405211R1

CABLE PULLING GRIP

CABLE ASSY, vacuum, Serial Range: switch-ground

1шт.

4

405279R1

HARNESS

ASSY, main cable front

1шт.

5

405880R1

HARNESS

ASSY, combination and flashing lights

1шт.

6

387728R91

LIGHT

ASSY, sealed beam head, LH, only serviceable items are sealed beam unit 371443R91 and rubber retainer 313957R1

1шт.

120371

NUT,1/2"-20, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

495-11053

WASHER,1/2", SAE

17/32 x 1-1/16 .095 C-Z

1шт.

7

382406R1

SUPPORT

BRACKET, head light mounting

2шт.

113911

SCREW, 5/16-18 x 1/2 slt-f-hd mach

4шт.

8

405209R1

CABLE

ASSY, head light to ground junction

2шт.

9

404400R1

CABLE

ASSY, fuel gauge sending unit to multiple connector

1шт.

10

9417863

BULB,C2F, #1895, 14V

LAMP, no. 1895 12 volt, tachometer & gauge cluster

1шт.

11

9412348

BULB,C2B, #257, 14V

LAMP, no. 257 12 volt, oil & amp tellite flasher

1шт.

12

528175R1

HARNESS

ASSY, panel cable RH

1шт.

13

405274R1

HARNESS

ASSY, panel cable LH

1шт.

14

534376R1

NEG BATTERY CABLE

CABLE ASSY, Serial Range: battery-battery

1шт.

356062R91

BOLT

ASSY, terminal

2шт.

15

383619R1

COVER

battery cable terminal, as required

1шт.

16

392244R91

BATTERY, prestolite 1303X, 6 volt

2шт.

16

399056R1

BATTERY, prestolite 1419X heavy duty, 6 volt

2шт.

17

629029R92

NEG BATTERY CABLE

STRAP ASSY, Serial Range: battery-ground

1шт.

356062R91

BOLT

ASSY, terminal

1шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .065) 3/8"

1шт.

18

364910R1

BOOT

COVER, battery terminal

1шт.

19

384396R1

SPADE TERMINAL,Male

TERMINAL, oil pressure switch straight

2шт.

20

383726R91

CABLE

ASSY, battery to solenoid switch

1шт.

356062R91

BOLT

ASSY, terminal

1шт.

21

405293R2

HARNESS

ASSY, rear main cable

1шт.

22

382728R91

SWITCH

safety starting

1шт.

23

384045R1

SUPPORT

BRACKET, safety starting switch

1шт.

14991R1

BOLT

3/8-16 x 5/8 short sq-nk crg

1шт.

102635

NUT,3/8"-16, G5

1шт.

24

384046R1

STEM

ROD, safety starting switch

1шт.

NLS

NO LONGER SERVICED

PIN, 1/16 x 1/2 cot.

1шт.

16558R1

WASHER

17/64 x 5/8 x .065

1шт.

25

350920R1

CLAMP

combination rear light

1шт.

26

365503R1

SPACER

combination rear light

1шт.

27

387729R91

LIGHT

ASSY, combination rear & tail, only serviceable items are sealed beam unit 371461R91, lamp 455490 & retainer 676078R1

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

102637

NUT,1/2"-13, G5

1шт.

28

397479R11

SUPPORT

BRACE ASSY, rear light bracket

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd cap

1шт.

29

362002R92

SOCKET

ASSY, breakaway connector

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

64022H

SCREW, 8/32 x 5/16 C-Z slt-fil-hd mach

2шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

2шт.

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

SCREW, 1/4-20 x 1/2 znd hex-hd cap, Farmall tractors w/deluxe fender

1шт.

30

376855R92

SWITCH

transmission oil pressure

1шт.

31

387728R91

LIGHT

ASSY, sealed beam head, RH, only serviceable items are sealed beam unit 371443R91 and rubber retainer 313957R1

1шт.

120371

NUT,1/2"-20, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

495-11053

WASHER,1/2", SAE

17/32 x 1-1/16 x .095 C-Z

1шт.

32

394132R91

FLASHER UNIT

FLASHER, safety warning light

1шт.

33

394134R1

SEAL

ABSORBER, flasher mounting

1шт.

34

394133R1

FASTENER

BRACKET, flasher mounting

1шт.

35

394135R1

BRACE, flashing warning mounting

1шт.

36

394262R1

WASHER

GASKET, flashing warning light

1шт.

37

394129R91

LIGHT

ASSY, flashing warning, serviceable items are lamp 9417866, lens, guide, 396585R1 amber or lens, Dietz, 899280R1 amber or lens, guide, 397442R1 red or lens, Dietz, 896279R1 red

1шт.

120371

NUT,1/2"-20, G5

1шт.

493-41052

LOCK WASHER,Ext Tooth, 1/2"

1/2 C-Z ext-tooth lock

1шт.

38

383620R91

ELECTRICAL WIRE

SOCKET ASSY, tachometer light

2шт.

39

392441R91

LIGHT

ASSY, transmission oil pressure

1шт.

40

ALTERNATOR GENERATOR, refer to alternator generator listing, this section

1шт.

41

ETHER STARTING, refer to ether starting listing, Section 12

1шт.

42

CRANKING MOTOR, refer to cranking motor listing, this section

1шт.

43

REGULATOR, refer to alternator generator and connections listing, this section

1шт.

44

SWITCH ASSY, engine oil refer to eng-5 parts catalog

1шт.

45

HORN, refer to electric horn listing, this section

1шт.

46

AIR CLEANER INDICATOR SWITCH, refer to electric air cleaner switch listing, this section

1шт.

47

FUEL SENDING UNIT, refer to fuel tank supports and piping listing, Section 12

1шт.

48

SPEEDOMETER, tachometer, refer to instrument panel and gauges listing, Section 11

1шт.

49

GAUGE, cluster, refer to instrument panel and gauges listing, Section 11

1шт.

50

KEY SWITCH, refer to engine controls and switches listing, this section

1шт.

51

ETHER STARTING SWITCH, refer to ether starting listing, Section 12

1шт.

52

LIGHTING SWITCH, refer to engine controls and switches listing, this section

1шт.

53

JUNCTION BLOCK, refer to engine controls and switches listing, this section

1шт.

54

INSTRUMENT PANEL, refer to instrument panel and gauges listing, Section 11

1шт.

55

ETHER STARTING PANEL, refer to ether starting listing, Section 12

1шт.

56

AIR CLEANER INDICATOR, refer to instrument panel and gauges listing, Section 11

1шт.

57

HORN BUTTON, refer to engine controls and switches listing, this section

1шт.

58

PUSH BUTTON SWITCH, refer to engine controls and switches listing, this section

1шт.

59

FUSE HOLDER, refer to engine controls and switches listing, this section

1шт.

60

CIGARETTE LIGHTER, refer to engine controls and switches listing, this section

1шт.

61

405212R1

HARNESS

CABLE ASSY, horn switch to junction block

1шт.

62

405221R1

CABLE

ASSY, horn switch to harness junction

1шт.

63

404395R1

CABLE

ASSY, breakaway connector, Serial Range: socket-ground

1шт.

64

405889R1

CABLE PULLING GRIP

CABLE ASSY, harness junction to breakaway connector socket, tractors not equipped w/deluxe fender att

1шт.

395228R1

CABLE CLIP

CLIP, breakaway connector cable, for tractors not equipped w/deluxe fenders

1шт.

64

405877R1

HARNESS

CABLE ASSY, harness junction to breakaway connector socket, tractors equipped w/deluxe fender att

1шт.

65

399470R1

BOOT

INSULATOR, terminal cover boot, used to cranking motor solenoid switch, -S- terminal

1шт.

405883R91

PARTS ACCESSORY, electric breakaway connector socket, tractors without deluxe fenders

1шт.

Consists of (1) cable 404395R1 (1) cable 405889R1 (1) clip 395228R1 (2) nut 120375 (2) screw 64022H (2) screw 180020 (1) socket 362002R92 (2) washer 120380 (2) washer 121841

1шт.

405884R91

PARTS ACCESSORY, electric breakaway connector socket, tractors with deluxe fenders

1шт.

Consists of (1) cable 404395R1 (1) cable 405877R1 (2) nut 120375 (2) screw 64022H (2) screw 18660R1 (1) socket 362002R92 (2) spacer 8719W (2) washer 120380 (2) washer 121841

1шт.
