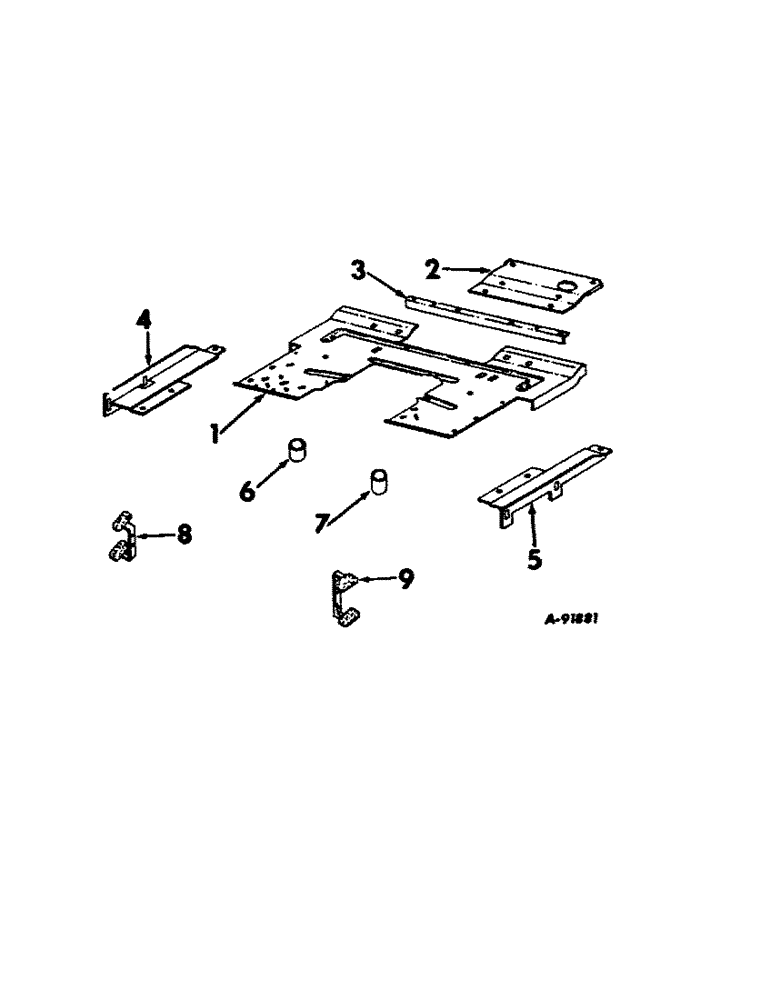

Запчасти Case IH 1456 (13-04) - SUPERSTRUCTURE, PLATFORMS AND EXTENSIONS, FARMALL TRACTORS (05) - SUPERSTRUCTURE

1

406278R4

PLATFORM, rear frame

1шт.

179848

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

4шт.

186284

BOLT,Hex, 3/8" - 16 x 3 3/4", Gr 5

SCREW, 3/8-16 x 3-3/4 hex-hd cap

2шт.

Q1597

WASHER

13/32 x 3/4 x 16 ga

2шт.

1

406279R4

PLATFORM, rear frame, tractors w/cab

1шт.

537942R1

PLATE, platform to fender fastening

8шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8-16 x 1-1/4 znd hex-hd cap

8шт.

120394

WASHER,3/8", SAE

WASHER, 13/32 x 13/16 x .051 C-Z

8шт.

2

406280R1

PLATFORM, rear frame front

1шт.

3

406281R1

ANGLE ASSY, platform support

1шт.

14995R1

BOLT

3/8 x 3/4 sq-nk crg

4шт.

102635

NUT,3/8"-16, G5

4шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

4

534493R2

EXTENSION

ASSY, fender to platform mounting LH, replaces 400715R2

1шт.

15015R1

SCREW,Sq Nk, 3/8" - 16 x 1 1/8"

BOLT, 3/8-16 x 1-1/8 sq-nk crg

3шт.

102635

NUT,3/8"-16, G5

3шт.

127507H

WASHER

13/32 x 7/8 x .179

1шт.

5

534494R2

EXTENSION

ASSY, fender to platform mounting RH, replaces 400716R1

1шт.

15015R1

SCREW,Sq Nk, 3/8" - 16 x 1 1/8"

BOLT, 3/8-16 x 1-1/8 sq-nk crg

3шт.

102635

NUT,3/8"-16, G5

3шт.

127507H

WASHER

13/32 x 7/8 x .179

1шт.

6

528678R1

SPACER, platform long, 9/16 x 13/16 x 3-1/8

2шт.

7

379718R1

SPACER,1/2" X-Strng Pipe x 1.281"

platform short, 35/64 x 27/32 x 1-9/32

4шт.

8

395230R1

STEP

ASSY, LH mounting

1шт.

NLS

NO LONGER SERVICED

SCREW, 3/4-10 x 1-1/2 hex-hd cap

1шт.

375250R1

SCREW,Flg, 5/8" - 11 x 2 1/4"

5/8-11 x 2-1/4 12 point hd cap

1шт.

9

395123R1

STEP

ASSY, RH mounting

1шт.

271563

SUPPORT,Hex, 5/8" - 11 x 2 1/4", Gr 5

SCREW, 5/8-11 x 2-1/4 hex-hd cap

1шт.

NLS

NO LONGER SERVICED

SCREW, 3/4-10 x 1-1/2 hex-hd cap

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.
