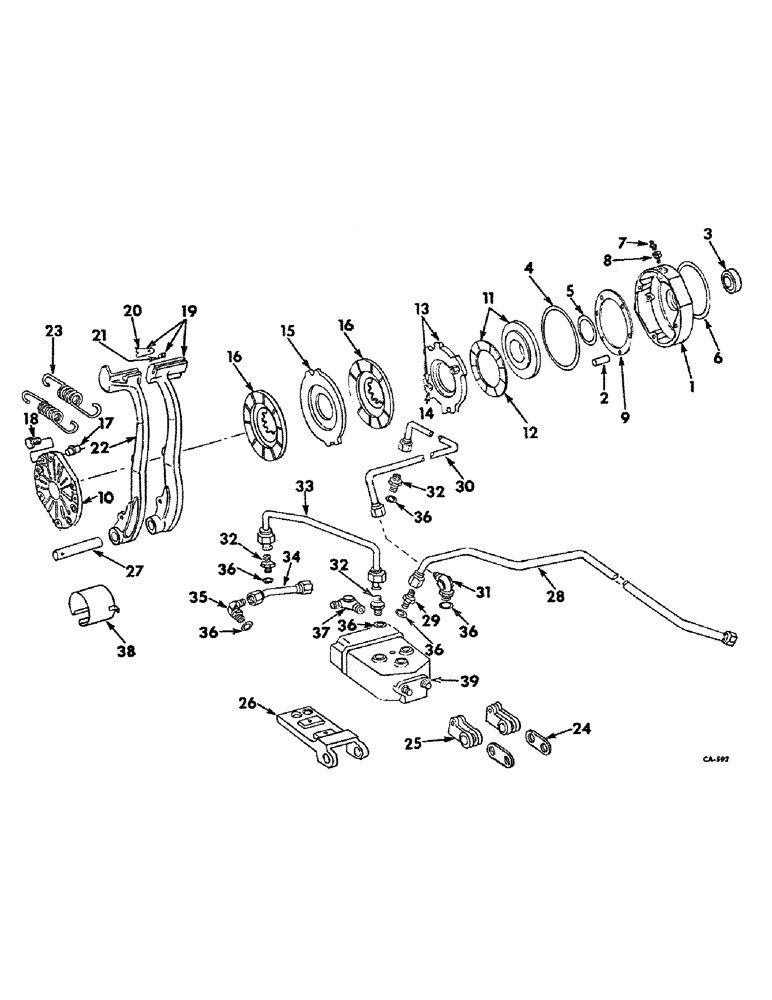

Запчасти Case IH 1456 (04-02) - BRAKES, BRAKES AND CONNECTIONS (5.1) - BRAKES

1

528688R1

HOUSING

brake LH

1шт.

1

528689R1

HOUSING, brake RH

1шт.

2

23896R1

DOWEL,5/8" x 3"

PIN, 5/8 x 3 dowel brake housing

4шт.

23891R1

12 PT SCREW

SCREW, 5/8 x 4-3/4 12 pt

8шт.

3

530806R91

SEAL,53.59mm ID x 76.33mm OD x 9.53mm Thk

brake shaft outer

1шт.

4

530807R1

RING

piston outer sealing

2шт.

5

530808R1

RING

piston inner sealing

2шт.

6

285453R1

O-RING,0.139" Thk x 6.734" ID, -261, Cl 5, 75 Duro

6-3/4 x 7 x 1/8, brake piston housing sealing

2шт.

7

82301R1

BLEEDER,3/8" - 24 x 117mm

bleed

2шт.

8

397338R1

CONNECTOR, ELEC

CONNECTOR, bleeder valve

2шт.

9

528690R1

SHIM

brake housing, .035

2шт.

9

528691R1

SHIM

brake housing, .012

4шт.

9

528692R1

SHIM

brake housing, .007

6шт.

9

528693R1

SHIM

brake housing, .004

1шт.

9

528694R1

SHIM

brake housing, .003

1шт.

10

528696R1

COVER, brake housing LH

1шт.

10

528697R1

COVER, brake housing RH

1шт.

271558

HOOD,Hex, 5/8" - 11 x 1 1/2", Gr 5

SCREW, 5/8-11 x 1-1/2 hex-hd cap

10шт.

23890R1

SCREW, 5/8-11 x 1-1/2 12 point

2шт.

11

384368R12

PISTON ASSY.

PISTON ASSY, brake

2шт.

Item #11 & #12 - This insulator pad needs to be assembled w/ the groove away from the piston. Use 3M Co. cement #EC-1300 or 345-23 (pint) or 345-22 (5 oz. tube) covering a minimum of 75% of the surface involved to insure a good bond. Not necessary to bake. CR 4/30/99 TSG

1шт.

12

384161R1

FRICTION WASHER

INSULATOR, brake piston

2шт.

Item #11 & #12 - This insulator pad needs to be assembled w/ the groove away from the piston. Use 3M Co. cement #EC-1300 or 345-23 (pint) or 345-22 (5 oz. tube) covering a minimum of 75% of the surface involved to insure a good bond. Not necessary to bake. CR 4/30/99 TSG

1шт.

13

528698R11

PLATE

primary brake LH

1шт.

13

528699R11

STOP

PLATE, primary brake RH

1шт.

14

528700R1

STOP, brake lining

4шт.

15

528701R1

PLATE

intermediate brake

2шт.

16

528702R1

DISC

ASSY, brake friction

4шт.

17

527445R1

TUBE

ASSY, brake adjuster

8шт.

18

528703R1

CARRIER, adjuster

8шт.

19

397681R1

PEDAL, LH brake

1шт.

223095

SCREW, 3/8-16 x 1-1/4 hex-soc-hd half dog-pt set

1шт.

114503

JAM NUT,Jam, 3/8"-16, G5

1шт.

20

43751DB

LATCH, PEDALS

PLATE, brake pedal lock

1шт.

21

51293D

SPRING

brake pedal lock tension

1шт.

20895R1

PIN,1/4" x 1", Coiled

1шт.

22

397682R1

PEDAL, RH brake

1шт.

223095

SCREW, 3/8-16 x 1-1/4 hex-soc-hd half dog-pt set

1шт.

114503

JAM NUT,Jam, 3/8"-16, G5

1шт.

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING, 3/16 drive type str lub

2шт.

23

59315D

SPRING

brake pedal return

2шт.

24

384082R1

LINK

brake operating

2шт.

21263R1

CLEVIS PIN,1/2" x 1 11/16'"

PIN, 1/2 x 1-11/16 rod end

4шт.

395-11053

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

17/32 x 1-1/16 x .095

4шт.

108630

COTTER PIN,1/8" x 7/8"

Pin, Split (Cotter), 1/8" x 7/8"

4шт.

25

384083R1

NO LONGER SERVICED

YOKE, brake operating

2шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

26

384084R1

ADAPTER, brake shaft and hyd valve mounting

1шт.

179881

BOLT,1/2" - 13 x 1", Gr 5

3шт.

432-1240

COTTER PIN,3/16" x 2 1/2"

Pin, Split (Cotter), 3/16" x 2 1/2"

1шт.

27

384085R1

SHAFT

brake pedal

1шт.

28

384221R11

TUBE

PIPE ASSY, hyd brake pressure

1шт.

29

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

CONNECTOR, 9/16-18 37 deg hyd flared tube adj short swivel hyd brake pressure pipe

1шт.

30

528718R1

PIPE CLAMP

PIPE ASSY, LH brake

1шт.

31

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

9/16-18 37 deg hyd flared tube adj str thd 90 deg LH brake pipe

1шт.

32

528006R1

CONNECTOR, ELEC

CONNECTOR, 9/16-18 37 deg hyd flared tube short swivel w/.075 orifice LH brake pipe

3шт.

33

528719R1

PIPE CLAMP

PIPE ASSY, RH brake

1шт.

33

384223R11

PIPE

ASSY, RH brake, tractors w/cab

1шт.

34

384224R11

HYD TUBE,0.375" OD, 4.24, 1.88" Length

PIPE ASSY, hyd brake return

1шт.

35

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

9/16-18 37 deg hyd flared tube adj str thd 90 deg hyd brake return pipe

1шт.

36

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube, hyd brake pressure pipe elbow

6шт.

37

333934R1

ELBOW,90 Degree, 9/16"-18, 37 Degree x 3/8"-18, NPTF

ADAPTER, male elbow 37 deg flare to NPTF

1шт.

38

391814R11

SHIELD ASSY, bull pinion brg oil

2шт.

423324

SCREW,Hex L/Wshr Hd, #10-24 x 7/16"

W/EXT TOOTH LOCK WASHER, 10-24 x 7/16 hex-hd mach

6шт.

39

VALVE ASSY, power brake, refer to power brake valve listing, this section

1шт.
