Запчасти Case IH 1456 (09-10) - FRAME, FRONT END WEIGHT BRACKET AND WEIGHTS (12) - FRAME

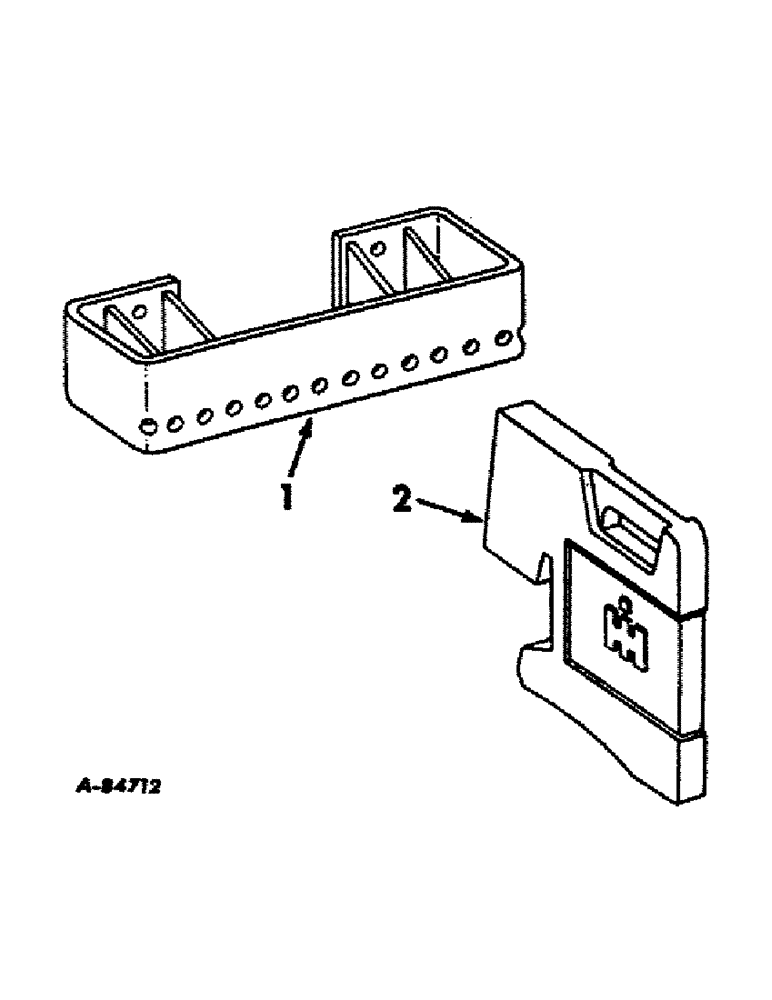

Схема запчастей Case IH 1456 - (09-10) - FRAME, FRONT END WEIGHT BRACKET AND WEIGHTS (12) - FRAME
2
1

Артикул

Название

Примечание

Количество

394446R91

PARTS ACCESSORY, front end weight mounting bracket, also order weight and mounting parts desired

1шт.

1

394447R11

BRACKET ASSEMBLY, front weight

1шт.

21452R1

BOLT,Hex, 3/4" - 10 x 2", Gr 8

SCREW, 3/4-10 x 2 znd hex-hd cap type 4

4шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, , Use at upper holes 3/4"

2шт.

369857R1

WASHER,20.7mm ID x 31.75mm OD x 3mm Thk

25/32 x 1-1/4 x 11 ga

2шт.

2

383392R1

WEIGHT

front end, 67 lbs

1шт.

2

383393R1

WEIGHT

front end, 100 lbs

1шт.

125536

SQUARE NUT

1/2-13 C-Z

1шт.

180194

BOLT,Hex, 1/2" - 13 x 4", Gr 5

SCREW, 1/2-13 x 4 znd hex-hd cap

1шт.

Выбрано товаров: 9
