(09-05[A]) - FRAME, ROCKSHAFT ARMS, TRACTORS WITH DRAFT CONTROL OR DRAFT SENSING

Запчасти Case IH 1456 (09-05[A]) - FRAME, ROCKSHAFT ARMS, TRACTORS WITH DRAFT CONTROL OR DRAFT SENSING (12) - FRAME

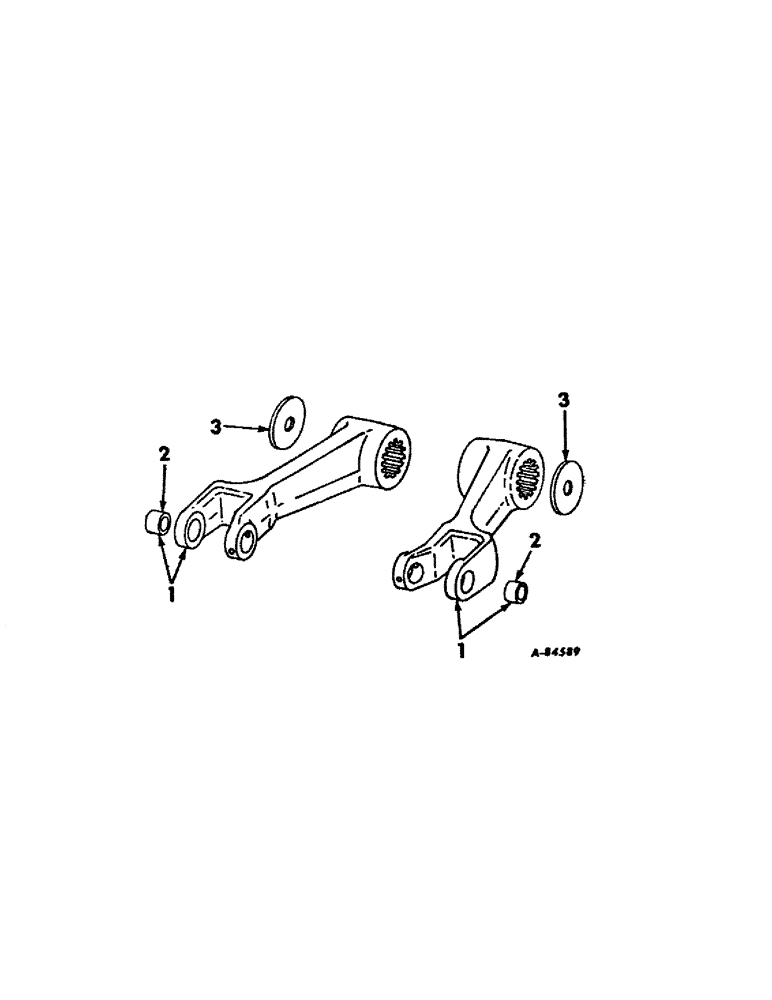

Схема запчастей Case IH 1456 - (09-05[A]) - FRAME, ROCKSHAFT ARMS, TRACTORS WITH DRAFT CONTROL OR DRAFT SENSING (12) - FRAME
3
1
3
2
1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

392147R11

ARM

ASSY, rockshaft

2шт.

2

392992R2

BUSHING,22.15mm ID x 34.87mm OD x 22.86mm L

rockshaft arm

2шт.

3

388574R1

WASHER,16.51mm ID x 82.55mm OD x 4.78mm Thk

rockshaft arm retainer

2шт.

Выбрано товаров: 3
