Запчасти Case IH 1456 (09-02[A]) - FRAME, FRONT CHANNELS (12) - FRAME

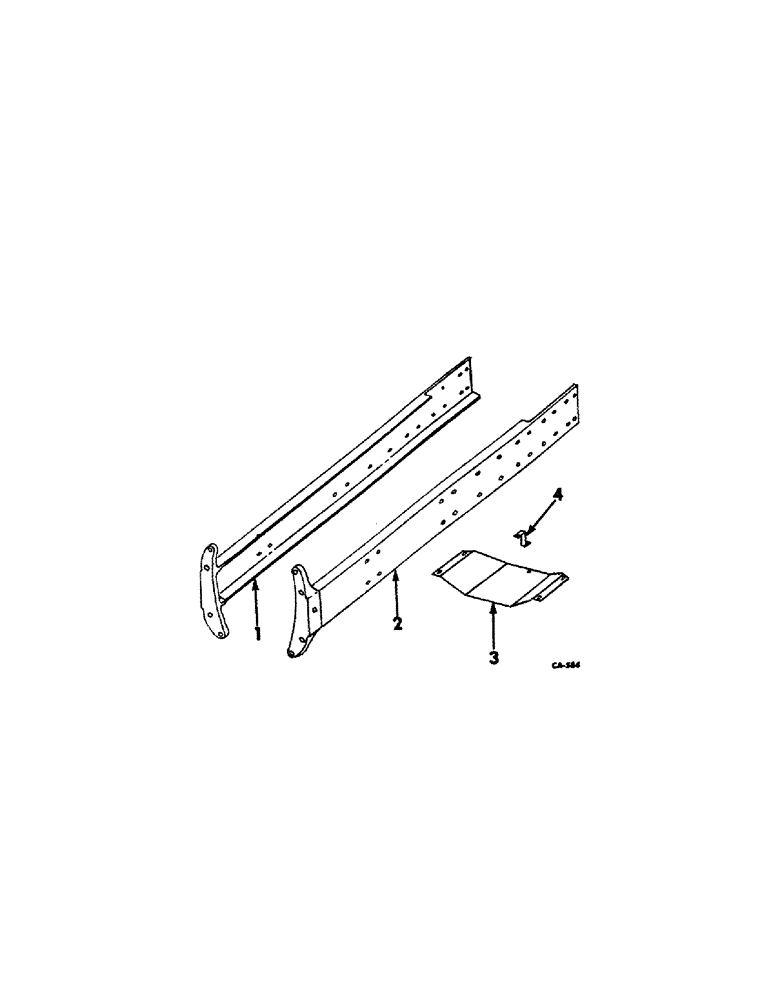

Схема запчастей Case IH 1456 - (09-02[A]) - FRAME, FRONT CHANNELS (12) - FRAME
2
4
3
1

Артикул

Название

Примечание

Количество

1

379400R11

CHANNEL ASSY, RH front frame

1шт.

525841R1

BOLT,Hex, 5/8" - 11 x 1 1/2", Gr 8

SCREW, 5/8-11 x 1-1/2 hex-hd cap

4шт.

379401R1

SCREW, channel bracket

2шт.

396842R1

12 PT SCREW,Flg, 3/4" - 10 x 3 1/4"

SCREW, channels bracket 12-pt

2шт.

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

SCREW, 5/8-11 x 3-1/2 hex-hd cap, engine front cover to channel mounting, Course Threads

4шт.

2

379399R11

CHANNEL ASSY, LH front frame

1шт.

525841R1

BOLT,Hex, 5/8" - 11 x 1 1/2", Gr 8

SCREW, 5/8-11 x 1-1/2 hex-hd cap

4шт.

379401R1

SCREW, channel bracket

2шт.

396842R1

12 PT SCREW,Flg, 3/4" - 10 x 3 1/4"

SCREW, channels bracket 12-pt

2шт.

3

381714R1

SHIELD

fan pulley, Farmall tractors

1шт.

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

4шт.

4

(Not used in this application)

1шт.

Выбрано товаров: 12
