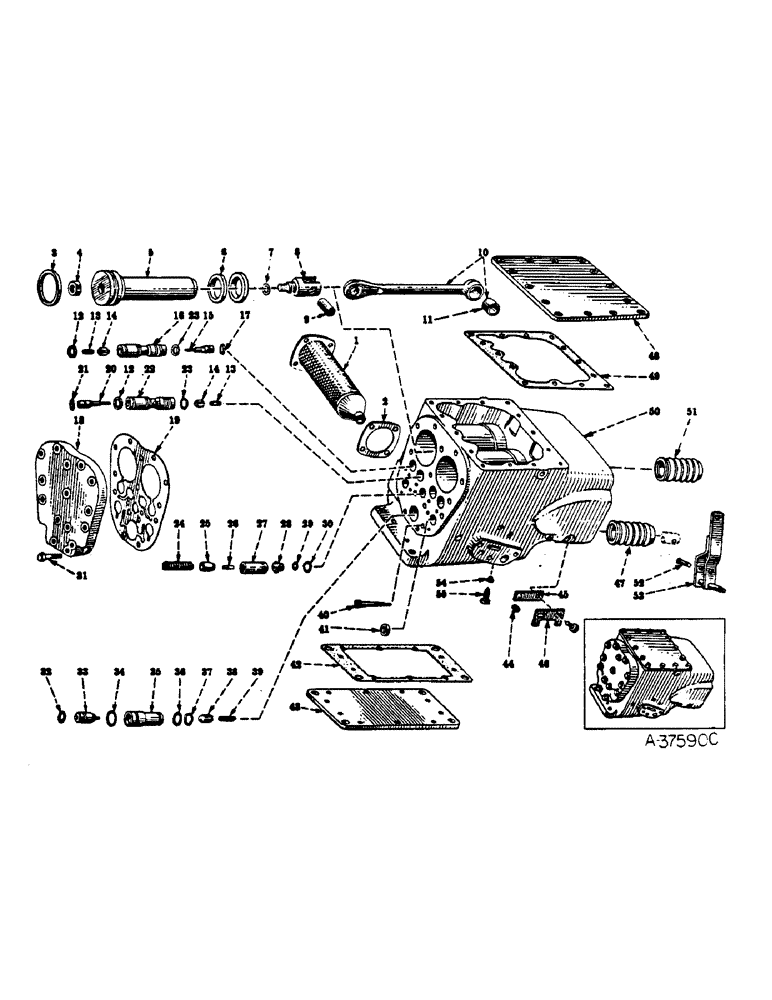

Запчасти Case IH 140 (10-02) - HYDRAULICS, TOUCH-CONTROL SYSTEM, CYLINDER BLOCK, VALVES AND RELATED PARTS (07) - HYDRAULICS

NSS

NOT SOLD SEPARAT

SERVICE PARTS FOR TRACTORS EQUIPPED WITH TOUCH-CONTROL, consists of all parts listed in touch-control and marked unit A

1шт.

354466R99

PACKAGE, touch-control, Farmall 100 series tractors, consists of all listed in touch-control and marked unit B

1шт.

354467R99

PACKAGE, touch control, for use with A1-23 highway or 105 balanced mower, Farmall 100 tractors, consists of all parts listed in touch-control and marked unit C

1шт.

358119R91

PACKAGE, touch control conversion parts, for use with A1-23 highway or 105 balanced mower, consist of (2) actuator 353739R1, (2) 353741R1, (1) arm 451860R21, (1) arm 451861R1, (1) shield 353742R1

1шт.

1

354355R91

STRAINER ASSY.

STRAINER ASSY, cylinder block oil, units A, B and C, for tractors not equipped with heat indicator

1шт.

1

355844R91

SCREEN

STRAINER ASSY, cylinder block oil, for tractors equipped with heat indicator

1шт.

179792

BOLT,Hex, 1/4" - 20 x 9/16"

SCREW, 1/4-20 x 9/16 hex-hd cap

4шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

2

350651R1

GASKET

cylinder block oil strainer

1шт.

3

350657R1

O-RING,0.21" Thk x 2.1" ID, -330, Cl 5, 75 Duro

2-1/8 x 2-1/2 x 3/16, piston head

2шт.

4

354513R1

NUT, connecting rod yoke

2шт.

103334

LOCK WASHER

WASHER, 5/8 light lock

2шт.

5

355348R91

PISTON ASSY, hydraulic, optional with 357372R91

2шт.

5

357372R91

PISTON

ASSY, hydraulic, optional with 355348R91

2шт.

6

461173R1

O-RING,0.21" Thk x 1.6" ID, -326, Cl 6, 90 Duro

SEAL, piston sleeve

4шт.

7

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

9/16 x 3/4 x 3/32, connecting rod yoke

2шт.

8

355353R1

YOKE

connecting rod

2шт.

9

350661R1

PIN, connecting rod yoke

2шт.

10

350659R11

ROD

W/BUSHING, 250019R1, connecting

2шт.

11

350019R1

BUSHING

connecting rod

2шт.

12

350667R1

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

11/16 x 7/8 x 3/32, check valve bushing

4шт.

13

13786AA

SPRING

check valve

4шт.

14

354057R2

VALVE

check

4шт.

15

353953R1

SHAFT

ACTUATOR, rear check valve, has no identifying grooves, 2 for units A and B

1шт.

15

353741R1

ACTUATOR, rear check valve, one identifying groove, 2 for unit B, used with A1-23 highway CR 105 balanced mowers

1шт.

16

355369R1

VALVE

BUSHING, rear check valve

2шт.

17

355967R1

O-RING,0.364" ID x 0.003" Width

3/8 x 1/2 x 1/16, check valve actuator

2шт.

18

354353R11

HEAD W/PLUG, 444654, cylinder

1шт.

444654

PLUG,Sq Soc, 1/4"-18 NPTF

1/4-18 auto, sq-soc pipe

1шт.

19

354354R3

CYLINDER HEAD GASKET

cylinder head

1шт.

20

353953R1

SHAFT

ACTUATOR, front check valve, has no identifying groove, 2 for units A and B

1шт.

20

353739R1

ACTUATOR, front check valve, two identfying grooves, 2 for unit C, used with A1-23 highway CR 105 balanced mowers

1шт.

21

355967R1

O-RING,0.364" ID x 0.003" Width

3/8 x 1/2 x 1/16, check valve actuator

2шт.

22

355368R1

VALVE

BUSHING, front check valve

2шт.

23

350667R1

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

11/16 x 7/8 x 3/32, check valve bushing

4шт.

24

361340R2

VALVE SPRING

SPRING, safety valve

1шт.

25

361342R1

SLEEVE

safety valve

1шт.

26

361341R3

PISTON ASSY.

PISTON, safety valve

1шт.

27

360474R1

BUSHING

safety valve outer

1шт.

28

360475R1

BUSHING

safety valve inner

1шт.

29

355966R1

O-RING,0.424" ID x 0.103" Width

7/16 x 5/8 x 3/32, safety valve inner bushing

1шт.

30

360476R1

VALVE SPRING

SPRING, safety valve bushing tension

1шт.

31

354388R1

BOLT (SPREADER),Hex, 7/16" - 14 x 1 3/4", Gr 8

SCREW, cylinder head cap

14шт.

32

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

9/16 x 3/4 x 3/2, pressure regulator valve piston

1шт.

33

360724R11

PISTON ASSY.

PISTON ASSY, pressure regulator valve

1шт.

34

253070R1

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

7/8 x 1-1/8 x 1/8, pressure regulator valve bushing rear

1шт.

35

360725R1

VALVE BODY

BUSHING, pressure regulator valve

1шт.

36

350684R1

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

3/4 x 1 x 1/8, pressure regulator valve bushing front

1шт.

37

360727R1

SPRING WASHER

SPRING, pressure regulator valve tension

1шт.

38

360726R1

LOCK VALVE

VALVE, pressure regulator check

1шт.

39

360728R1

VALVE SPRING

SPRING, pressure regulator check valve

1шт.

40

355372R93

VENT

ORIFICE ASSY

1шт.

41

350672R1

O-RING,0.482" ID x 0.153" Width

RING, control valve seal

2шт.

42

350646R1

GASKET

cylinder block bottom cover

1шт.

43

350645R1

COVER, cylinder block bottom

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

10шт.

44

444687

PLUG,Hex Soc, 1/8"-27

1/8-27 auto, sq-hd pipe, cylinder block

16шт.

45

354360R1

BLOCK, control valve operating lever stop tapping

2шт.

46

354674R1

STOP

control valve operating lever

2шт.

21020R1

SCREW

5/16-24 x 7/8 hex-soc-hd cap

4шт.

47

364832R1

INSULATOR

BOOT, control valve, rubber, will work for leather boot 351753R3

2шт.

NSS

NOT SOLD SEPARAT

WIRE, no. 18 ga x 4 in. long locking, purchase locally, not used on rubber boot

1шт.

NSS

NOT SOLD SEPARAT

WIRE, no. 18 ga x 6-1/2 in. long locking, purchase locally, not used on rubber boot

1шт.

48

355351R1

COVER, hydraulic cylinder block top, with plain holes, unit A

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

14шт.

48

357637R1

COVER, hydraulic cylinder block top, with counter sunk holes, units B and C

1шт.

114663

SCREW,Sl Flat Hd, 5/16" - 18 x 3/4"

5/16-18 x 3/4 slt-f-hd mach

14шт.

49

355352R1

GASKET

hydraulic cylinder block top cover

1шт.

50

364659R91

BLOCK ASSY, cylinder, units A & B, will work for 354351R99, Consists of: Ref. nos. 1 thru 55 inclusive w/attaching hardware also, (1) brace 250678R1, (1) brace 350679R1, (2) link 350677R2, (4) nut, 110633, (2) pin 103373

1шт.

50

364660R91

BLOCK ASSY, cylinder, unit C, Consists of: Ref. nos. 1 thru 55 inclusive w/attaching hardware also, (1) brace 350678R1, (1) brace 350679R1, (2) link 350677R2, (4) nut 110633, (2) pin 103373

1шт.

50

362451R92

BLOCK ASSY, cylinder, units A, B & C, Consists of: (1) block 357657R5 (NSS), (1) gasket 3405H, (18) plug 444687, (1) plug 172592, (1) plug 445096, (1) plug 445096, (1) plug 445673

1шт.

3405H

GASKET

filler plug

1шт.

63556R1

PLUG

2 in. expansion

1шт.

445673

PIPE PLUG,Sq Hd, 3/8"-18 NPTF

PLUG, 3/8-18 auto. sq-hd pipe

1шт.

444687

PLUG,Hex Soc, 1/8"-27

1/8-27 auto. sq-hd pipe

2шт.

445096

PLUG

7/8-18 hex-hd outside filler

1шт.

364257R1

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 8

SCREW, 1/2-13 x 1-3/4 type 8 hex-hd cap

4шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

Fuel tank attaching screw Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

83-1256

SET SCREW,Hex Soc, 1/4"-20 x 3/8"

SCREW, 1/4-20 x 3/8 hex-soc set, in control valve

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

51

351754R3

BOOT

piston sleeve, rubber, will work for leather B cot. 351754R3 (Replaces 364832R1)

1шт.

NSS

NOT SOLD SEPARAT

WIRE, no. 18 ga x 40 in. long locking, purchase locally, not used on rubber boot

2шт.

NSS

NOT SOLD SEPARAT

WIRE, no. 18 ga x 4 in. long locking, purchase locally, not used on rubber boot

2шт.

52

354358R1

PIN

control valve

2шт.

137130

PIN

1/6 x 7/16 cot.

2шт.

53

354366R92

LEVER

ASSY, control valve operating

2шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

54

354269R1

SIEVE

SCREEN, relief valve

2шт.

55

354264R91

VALVE

ASSY, relief

1шт.

350727R1

CLIP, governor control rod, unit B and C, illustrated with governor controls

1шт.

354007R96

GASKET KIT

PACKAGE, cylinder block gasket & seal ring service, unit A, Consists of: (1) gasket 350646R1, (1) gasket 350651R1, (1) gasket 350706R2, (1) gasket 353771R2, (1) gasket 354354R3, (1) gasket 355352R1

1шт.

354357R1

part number is illustrated on page 10-2 as a dotted line picture, is part of a matched set with the block

1шт.
