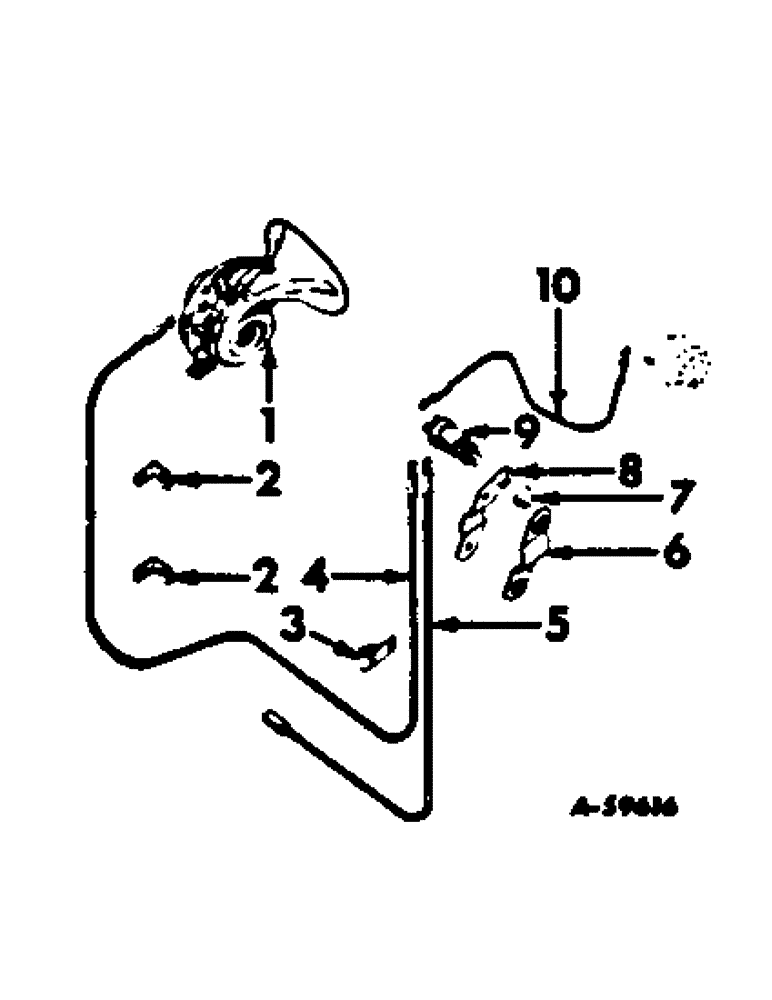

Запчасти Case IH 140 (08-40) - ELECTRICAL, ELECTRIC HORN, FOR 140 SERIES TRACTORS (06) - ELECTRICAL

373973R92

PARTS ACCESSORY, electrical horn, 6 volt, alos cable 372629R91, when installing on tractors if required, consists of all unmarked parts and those marked unit A

1шт.

387406R91

PARTS ACCESSORY, electrical horn, 12 volt, consists of all unmarked parts and those marked unit B

1шт.

1

385531R91

HORN ASSY, 6 volt, low pitch, unit A

1шт.

1

9000239

HORN

ASSY, 12 volt, unit B

1шт.

9635082

NUT,5/16" - 18, Gr 5

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

2

366460R1

CABLE CLIP

CLIP, horn switch to horn cable, 2 for unit A, serial no. 23300 and below

1шт.

2

384555R1

CLIP

horn switch to horn cable, 2 for units A and B, serial no. 23301 and above

1шт.

3

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, horn switch to charge indicator cable, 1 for unit A, 2 for unit B

1шт.

9635082

NUT,5/16" - 18, Gr 5

1шт.

179812

GEAR

SCREW, 5/16-18 x 1/2 hex-hd cap

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

4

387407R91

CABLE, horn switch to horn, unit B

1шт.

4

372629R91

CABLE, horn switch to horn, unit A, not included in the electric horn parts accessory, serial no. 5878 and below

1шт.

4

385540R91

CABLE, horn switch to horn, unit A, serial no. 23301 and above

1шт.

5

373745R91

CABLE, horn switch to line, unit A, serial nos, Serial Range: 5879-23300

1шт.

6

372057R11

CLAMP ASSY, horn switch mounting bracket

1шт.

7

371487R1

CYLINDER END CAP

CAP, horn switch dust, gray

1шт.

8

372056R1

BRACKET, horn switch mounting

1шт.

179795

TILLAGE BLADE

SCREW, 1/4-20 x 3/4 hex-hd cap

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

9

393209R91

SWITCH

horn

1шт.

10

372063R91

CABLE, horn switch to charge indicator

1шт.

385539R1

BRACKET, horn mounting, serial no. 23301 and above

1шт.

372055R2

BRACKET, horn mounting

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd cap

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

373744R91

CABLE, horn switch to line connector, 1 for unit A

1шт.

362121R1

CLIP

horn switch to charge indicator cable

1шт.

366460R1

CABLE CLIP

CLIP, horn switch to horn cable, unit A

1шт.

384554R1

CLIP

horn switch to horn cable, unit B

1шт.
