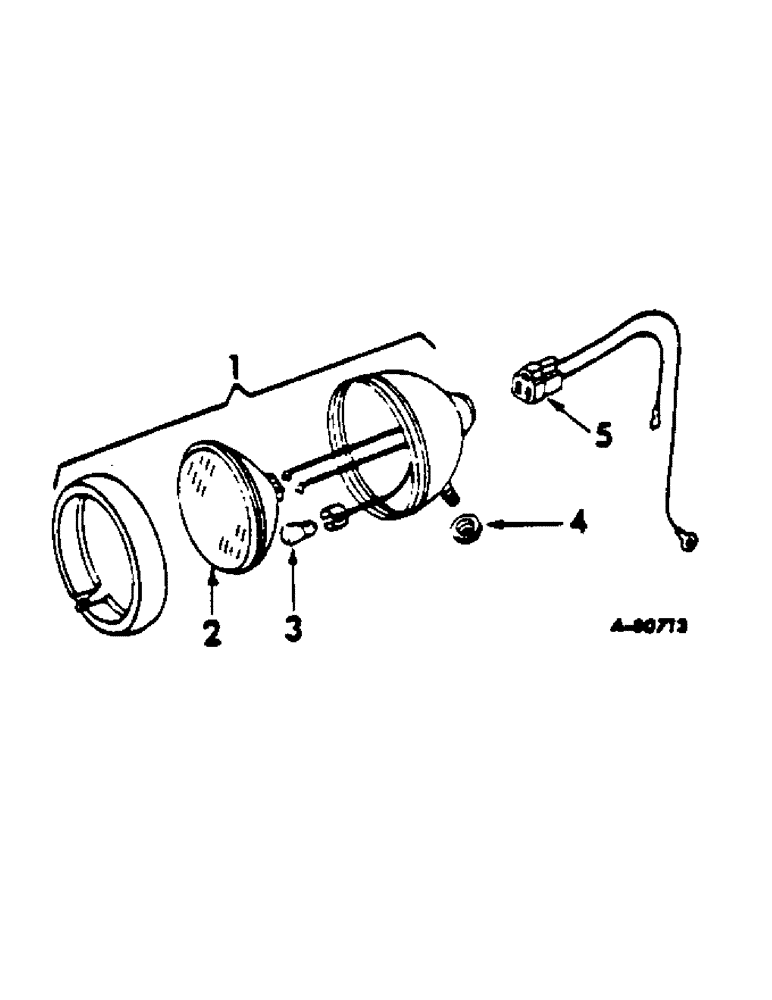

Запчасти Case IH 140 (08-19[1]) - ELECTRICAL, COMBINATION REAR LIGHT & TAIL LIGHT, 12V, FOR 140 SERIES TRACTORS W/ S/N 26801 & ABOVE (06) - ELECTRICAL

1

387729R92

LIGHT ASSY.

LIGHT ASSY, combination rear & tail, only servicable items are sealed beam unit, 371461R91 and lamp, 455490, retainer, 676078R1, 140 tractors w/serial no. 26801 and above

1шт.

102637

NUT,1/2"-13, G5

140 tractors w/S/N 26801 and above 1/2"-13, G5

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, , 140 tractors w/serial no. 26801 and above 1/2"

1шт.

2

371461R92

LAMP

UNIT, sealed beam, 12 volt, 140 tractors w/serial no. 26801 and above

1шт.

3

455490

BULB,C-6, #1003, 12V, .94W

LAMP, no. 1003, 12 volt, 140 tractors w/serial no. 26801 and above

1шт.

4

365503R1

SPACER

rear light, 140 tractors w/serial no. 26801 and above

1шт.

5

387403R91

CABLE

ASSY, combination rear light connector for serial no. 62471 and below, and 140 tractors w/serial no. 26801 and above

1шт.

5

114637C1

HARNESS

ASSY, comb, rear lamp, for serial no. 62472 above, and 140 tractors w/serial no. 26801 and above

1шт.

375376R1

RING

GASKET, sealed beam unit, used only if unit is loose in light body, 140 tractors w/serial no. 26801 and above

1шт.
