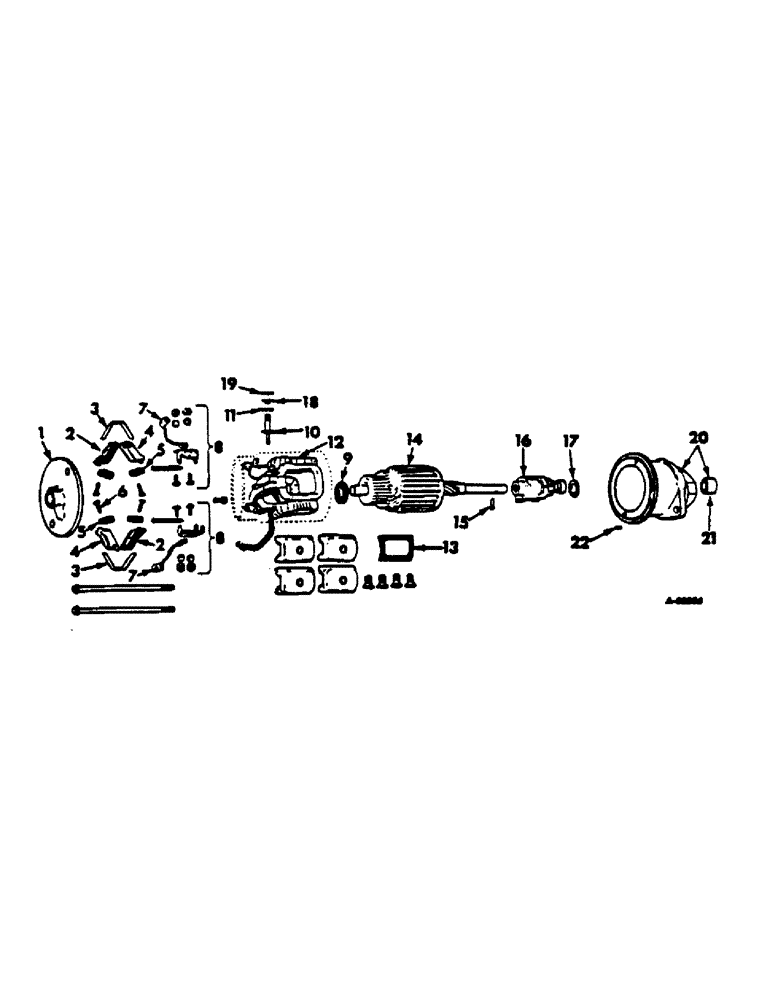

Запчасти Case IH 140 (08-12) - ELECTRICAL, CRANKING MOTOR, DELCO-REMY, 12 VOLT, 140 SERIES TRACTOR W/ SERIAL NO. 26801 & ABOVE (06) - ELECTRICAL

1107328

MOTOR ASSY, cranking, 12 volt, order 1109353, 140 tractors w/serial no., Serial Range: 26801-63260

1шт.

1109353

MOTOR ASSY, cranking, 12 volt, 140 tractors w/serial no. 63261 and above

1шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

1

1928966

FRAME

commutator end, used w/107328

1шт.

1

1974157

FUNNEL

FRAME, commutator end, used w/109353

1шт.

2

1926618

HOLDER

insulated brush

2шт.

3

1926622

VALVE SPRING

SPRING, brush

2шт.

4

1940477

HOLDER

ground brush

2шт.

5

1906945

COMMUTATOR BRUSH

BRUSH

4шт.

6

131977

SCREW, brush attaching, used w/107328

4шт.

6

443527

SCREW, brush holder ground, used w/109353

2шт.

6

1967747

SCREW

brush holder insulator, used w/1109353

2шт.

7

1960864

BRUSH, COMMUTATOR

LEAD, brush ground

2шт.

8

1928015

BRACKET

KIT, brush holder support

2шт.

9

1914842

WASHER

commutator end brake

1шт.

10

1956246

STUD, terminal

1шт.

11

1961386

WASHER, insulated terminal stud

1шт.

12

1937548

COIL ASSY, field, 4 coils, used w/1107328

1шт.

12

1974542

COIL ASSY, field, 4 coils, used w/1109353

1шт.

13

1927853

FOAM INSULATION

INSULATED, field coil

4шт.

14

1963638

ARMATURE

1шт.

15

1963637

PIN, armature shaft

1шт.

16

1963643

DRIVE

ASSY, motor

1шт.

17

1853917

WASHER, drive end space

1шт.

18

1956245

BUSHING, insulated terminal stud, used w/1107328

1шт.

18

1961387

BUSHING, insulated terminal stud, used w/1109353

1шт.

19

805613

WASHER, insulated terminal stud

1шт.

453468

SCREW, field lead attach to stud, used w/1109353 motor only

2шт.

20

1963640

HOUSING

ASSY, drive end

1шт.

21

810620

BUSHING

drive end housing

1шт.

22

809593

PIN

drive end dowel, used w/1107328 motor only

1шт.

1939970

FUSE

BOLT, thru

2шт.
